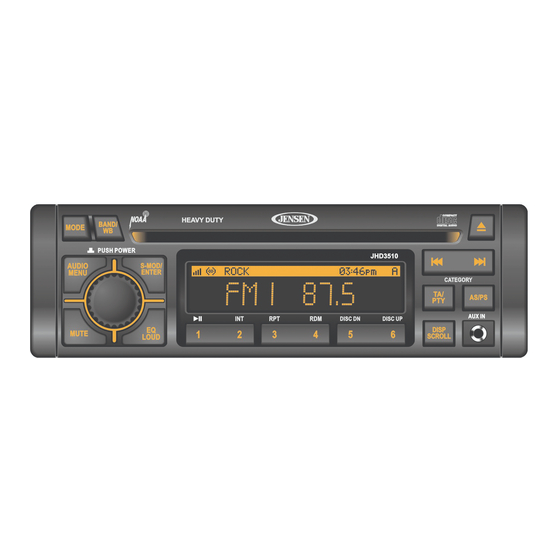

- Page 1 HEAVY DUTY ~HD3510 AM/FM/RBDS/WB/CD/AUX-IN/iPod Ready/SIRIUS Ready Heavy Duty Radio Installation and Operation Manual ~,----------~-------------- CH:05 ST RDS ; M1 105.9 VOLUME46 LOUD EQ-ROCK 12:36PM ' = =-...
-
Page 2: Table Of Contents
JHD3510 CONTENTS System Safety Information Installation Wiring Basic Operation Tuner Operation CD/MP3 Player Operation Satellite Radio Operation iPod Operation Care and Maintenance Troubleshooting Specifications... -
Page 3: System
JHD3510 -----------------------------------------------------------.-AVYDUIY SYSTEM Features Content List Features of the Jensen JHD3510 mobile audio system include: Jensen Heavy Duty Radio Hardware Kit Full Dot Matrix LCD Wire Harnesses Selectable Amber/Green Backlighting Color 15AMP Fuse AM/FM US/EURO Tuner with 30 Presets (12 AM, 18 FM) -
Page 4: Safety Information
.JHD3510 H M V Y D U I Y - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - SAFETY INFORMATION When Driving Compatible Disc Types... -
Page 5: Installation
. .. JHD3510 ------------------------------------------------------------------HUVYDUIY INSTALLATION This unit is designed for installation in vehicle cabs with an existing 1-DIN radio opening. In problem is corrected. Once proper operation is achieved, tum the accessory switch off and proceed with final mounting of the chassis. many cases, a special installation kit will be required to mount the radio to the dashboard. -
Page 6: Wiring
JHD3510 IIlIAVYDUIY------------------------------------------------------------ W IR IN G VlEWA-A ?ICDulli I~'V~'~~ 14-PIN CONNECTOR, WIRE INSERTION VIEW ~III WIRE COLOR DESCRIPTION VIOlET/BLACK RIGHT REAR SPEAKER (·1 cll1 (,,-DAVIA' A("I{ RIGHT FRONT SPEAKER (-) LEFT REAR SPEAKER (-I GREENIBLACK WHITElBLACK LEFT FRONT SPEAKER (·1 14-PIN SOCKET SOCKE BLACK... -
Page 7: Basic Operation
"HD3510 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - I I U V Y D U r Y BASIC OPERATION NOTE: CD, IPOD, or Sirius (SAT) mode will be skIpped"... - Page 8 :-.' ~HD3510 MAVYDUIY------------------------------------'------------------------------ System Menu PA Operation Press and hold the AUDIO/MENU button (3) for more than 2 seconds to enter the system Connect the PA Microphone with a 4-PIN connector to the 4-PIN socket on the rear of the menu.
-
Page 9: Tuner Operation
.-.' .JHD3510 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - IlUVYDUI'Y 'tUNER OPERATION Automatically Store Preset Scan (AS/PS) - Page 10 JHD3510 IlUVYDUI'Y--------------------------------------------------------------- Weather Band Operation What is the NOAA Weather RadiolWeatherad/o canada? This is nationwide system that broadcasts local weather emergency information 24 hours a day. The U.S. network has more than 530 stations covering the 50 states as well as the adjacent costal waters, Puerto Rico, the U.S.
-
Page 11: Cd/Mp3 Player Operation
.JHD3510 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - _ . A V Y D U J Y CD/MP3 PLAVER OPERATION Folder NaVigation (MP3 Only) Press the 51DN button (9) to select folder down. -
Page 12: Satellite Radio Operation
~HD3510 ..VYDUrY----------------------------------------------------------- SATELLITE RADIO OPERATION Programming Channels Select the channel you want to store in memory. Press and hold a preset button (5-10) until the corresponding preset button number appears. Repeat steps 1 and 2 to program additional channels. Preset Recall Press one of the six preset buttons (5-10) to directly select a preset channel stored in the current band. -
Page 13: Ipod Operation
~HD3510 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - . . .yyDUIY iPod OPERATION Controlling Playback This unit is equipped with an iPod ready function that will allow you to control your iPod (if... -
Page 14: Care And Maintenance
.JHD3510 Ill'AVYDUrY-------------------------------,------------------------------------ 'lROUBLESHOOTING CARE AND MAINTENANCE Keep the product dry. If it does get wet. wipe it dry immediately. Liquids might contain Cause Solution minerals that can corrode the electronic circuits. Symptom Keep the product away from dust and dirt, which can cause premature wear of parts. No power The vehicle's accessory If the power supply is properly... -
Page 15: Specifications
~HD3510 --------------------------------..,..-------------------------.aWDUn' SPECIFICATIONS Signal to Noise Ratio 65 dB Channel Separation : More than 50 dB Frequency Response : 20 Hz - 20 kHz Radio Frequency Coverage (USA) 87.5 to 107.9 MHz Frequency Coverage (Europe) 87.5 to 108 MHz Sensitivity (S/N=30dB) .4IJV Image Rejection >45 dB... - Page 16 Oeiectroritcs. THE MOBilE ELECTRONICS COMPANY SINCE 1977 ASA Electronics Corporation www.asaelectronics.com ©200? ASA Electronics Corporation v.08170?
