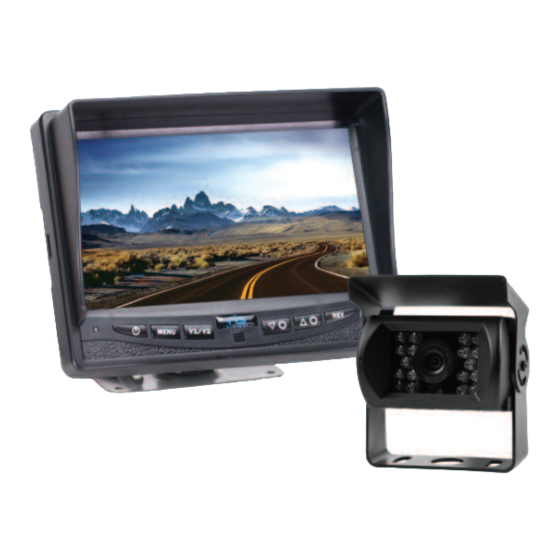

- Page 2 • 1 3 Channel Multiplexer Control Unit • 1 66’ Camera Cable • 1 Remote Control • 1 Power Connection Wire • 1 Double RCA + Power Converter (to connect external audio, video and power) • 1 Screw Kit for installation RVS SYSTEMS...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................4 Safety Information ..................5-7 Before Beginning Installation..............8 Installation Guide..................9 Wiring Camera & Monitor..............10-11 Installation Diagram .................12 Installing the Monitor ................13 Monitor Operation..................14 Splitting & Splicing ...................15 Positioning....................Multiplexer ....................17 Monitor Dimensions..................18 Monitor Specifications................19 Camera Dimensions...................20 Camera Specifications ................21 Troubleshooting..................22 Warranty.......................23... -
Page 4: Introduction
In some jurisdictions, it is unlawful for a person to drive a motor vehicle equipped with a TV viewer or screen located forward of the back of the driver’s seat or in any location that is visible, directly or indirectly, to the driver while operating the vehicle. RVS SYSTEMS... -
Page 5: Safety Information
Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica- ble local traffic and motor vehicle regulations as it pertains to this product. - Page 6 Dropping the unit may cause is detected, disconnect the possible mechanical failure. system immediately. • Where the power cable may touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire. RVS SYSTEMS...
- Page 7 Safety Information If you have questions about this product, contact: Customer Service: RVS Systems 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 888.881.2601 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 8: Before Beginning Installation
Install split grommets where applicable. Step 3: Once all cables and wiring have been properly routed, perform a system function test by temporarily connecting the system. If the system seems to not be operating properly see troubleshooting (page 22). RVS SYSTEMS... -
Page 9: Installation Guide
Installation Guide Cable 1. Be sure to position the cable properly. The camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements. Do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts. - Page 10 Therefore, if you wish to use nect the BLUE wire to reverse multiple triggers, do not power (or any power source attach the blue trigger to that comes on only in reverse). constant power. • The other channels can simi- RVS SYSTEMS...
-
Page 11: Wiring Camera & Monitor
Wiring Camera & Monitor • Audio: There is audio on • There is a built-in voltage channels 2 and 3. On channel 3 regulator for our systems which the blue trigger wire must be can handle 12-24 volts. Real energized (12V) to activate the consumption is 10 to 30 Volts. -
Page 12: Installation Diagram
Installation Diagram Figure 1.1 Figure 1.2 Figure 1.3 Figure 1.4 Connection of Connection of U Bracket Flushmount Bracket RVS SYSTEMS... -
Page 13: Installing The Monitor
Installing the Monitor 66ft Extension Cable Monitor Video Out Optional Camera Available 3 Amp Fuse 1. DC12V-24V (red) 2. Ground (black) 3. Port #3 (blue) 4. Port #2 (white) 5. Port #1 (yellow) Camera Reverse With Confidence ™... -
Page 14: Monitor Operation
• Trigger source: Change the channel destination for each trigger. • Trigger delay: Adjust the delay time on each trigger. • Distance Grid: Choose what channel the distance grid will display on. • Grid Position: Move the grid-lines. • Reset: Reset all settings to factory default. RVS SYSTEMS... -
Page 15: Splitting & Splicing
Splitting & Splicing Installing sun shield: Put shade cover on the display. Installing back cover: Put the monitor with shade cover in the back cover (only for embedded monitor) Splitting back cover: Hold monitor with 2 hands and detach with fingers, as indicated by arrows. -
Page 16: Positioning
Positioning RVS SYSTEMS... -
Page 17: Multiplexer
Multiplexer Port #1 Port #2 Port #3 or DVD Backup Reverse With Confidence ™... -
Page 18: Monitor Dimensions
Monitor Dimensions 7” 5.25” Rotation Imager Menu/ Camera (Exit in Down Power Selection Menu Selection Arrow Arrow On/Off Button Mode) power video select down/up menu mirror/ normal image RVS SYSTEMS... -
Page 19: Monitor Specifications
Monitor Specifications TFT LCD Digital Monitor Screen Size 7” Dot Resolution x 3 (RGB) x 480 Display Format 16:9 / 500:1 Display Brightness 400cd/m Viewing Angle U:50° / D:60° / R:70° Video Input 3 channel Video Source 1Vp-p, 75 Power Supply DC 12V-24V (+/- 10%) Power Consumption Operating Temperature... -
Page 20: Camera Dimensions
Camera Dimensions 3” 3.25” RVS SYSTEMS... -
Page 21: Camera Specifications
Camera Specifications Camera 1/4” Sharp® Color CCD Picture Elements 250,000 pixels r=0.45 to 1.0 Gamma Correction 600 TVL NTSC 769H x Image Sensor 494 V, PAL 752H x 582V Lens 2.1mm 130° View Angle Internal Synchronization Sync System Infrared distance 50 Feet (18 Infrared IR) Usable Illumination 0 Lux (IR On) -
Page 22: Troubleshooting
Verify Blue trigger is receiving monitor power • Verify camera is connected to cable Audio on Camera Verify chosen camera has audio Confirm that the Blue audio • • Verify volume setting trigger is connected to 12v+ • RVS SYSTEMS... -
Page 23: Warranty
RVS Systems Inc. system after partial failure or use with improper ac- cessories. -
Page 24: Disclaimer
In no event shall RVS Systems and/or its affiliates have any liability for any losses (whether direct or indirect, in contract, tort or other- wise) incurred in connection with the systems, including but not limited to damaged property, personal injury and/or loss of life. - Page 25 Take Notes ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ Reverse With Confidence ™...
- Page 26 If you have any questions about this product, contact: RVS Systems, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 888.881.2601 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
