Page 1: Installation Manual

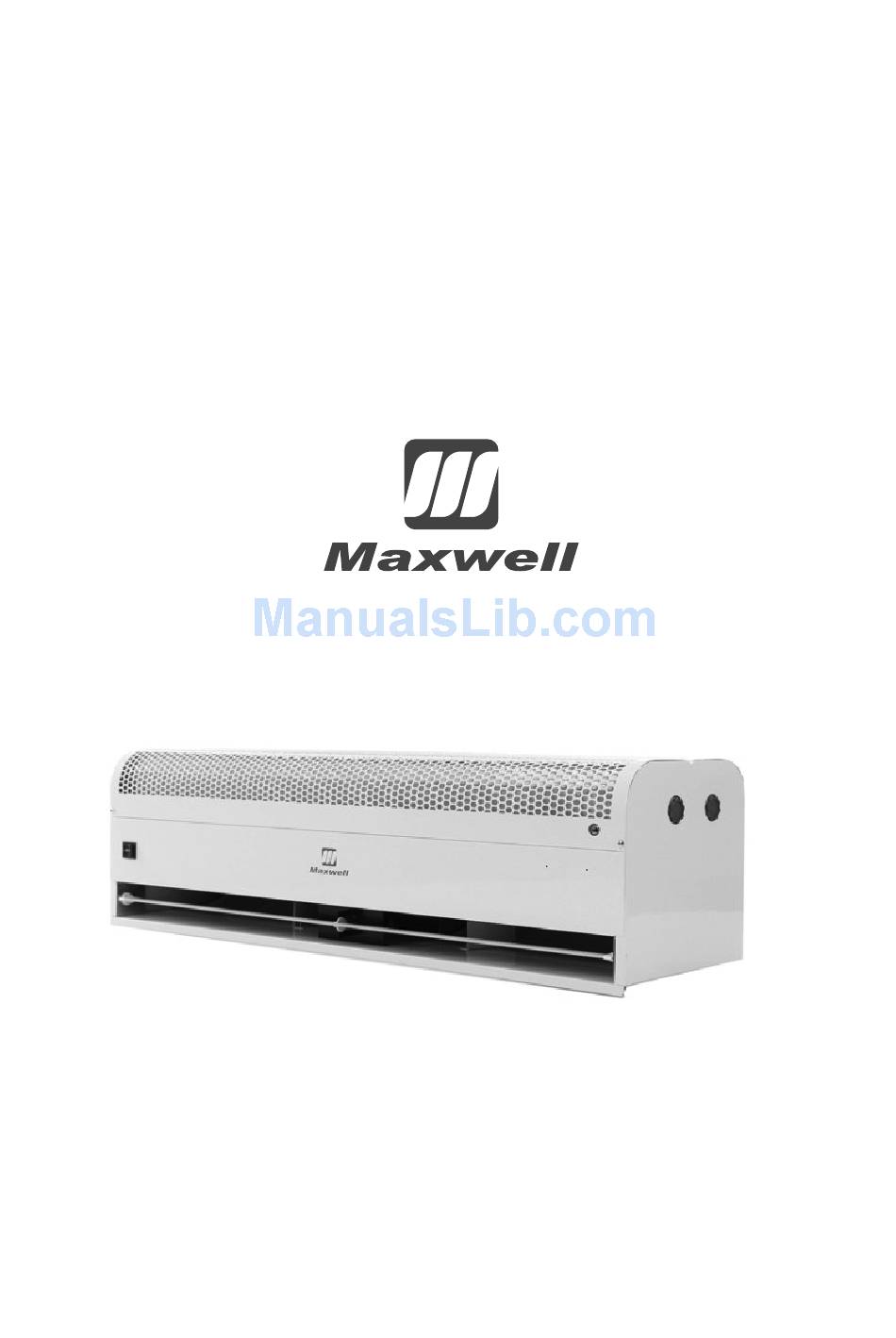

AIR CURTAIN INSTALLATION MANUAL MASH Series Thanks for purchasing this Air Curtain. Please read these instructions carefully before use. - Page 2 Air curtain is installed above the entryway of st ore, restaurant, office, workshop, hotel and warehouse, etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air-conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside.
-
Page 3: Installation
Installation Fix the installation hook on the air curtain. (The installation hooks and screws are put in the packaging.) installation hook For install on the concrete and brick wall or other hard wall, should measure the place of the installation screw (see the installation dimension ), then fix on the wall by M8 expansion bolt, ensure... - Page 4 Appearance & installation sizes Distance of hanging hold MODEL N.W(LBS) Wiring Diagram Technical Parameter In/out water 100-65 In/out water 90-60 In/out water 85-55 speed volume Ft/s < < < CAUTIONS AND MAINTENANCES Do not let the water or other liquid splash in the motor. According to different heating source, should supply the correspondence drainage pipe, and have the measure for keeping pipeline temperature.
- Page 5 Optional door switch & weather proof cover Save energy & eliminate unnecessary air circulation COM common NO normally open NC normally close...
- Page 6 Made by 2190 NW 89 Place, Doral, FL 33172 USA Rockwell Tel: (305)594-4972 Fax (305) 675-2212 www.rockwellus.com sales@rockwellus.com...
