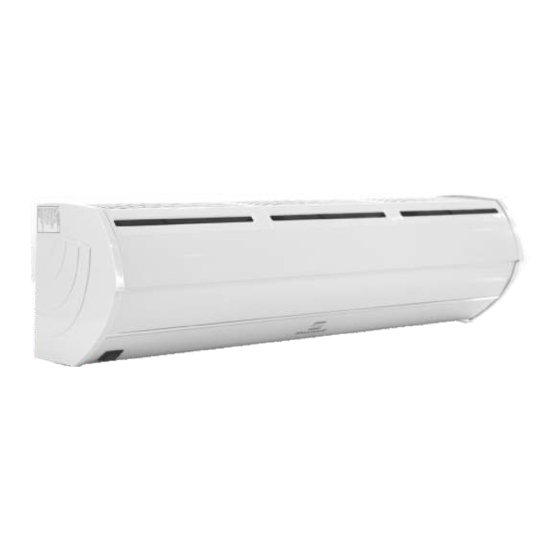

- Page 1 Maxwell Maxwell USER’S & INSTALLATION MANUAL AIR CURTAIN MASF036-N1 MASF048-N1 MASF060-N1 THANKS FOR PURCHASING AIR CURTAIN, PLEA S E READ IT CAREFULLY BEFORE USING THANKS FOR PURCHASING AIR CURTAIN, PLEA SE READ IT CAREFULLY BEFORE USING...
- Page 2 1、 IDENTIFICATION & INSTALLATION DIMENSIONS Units: in MODEL MASF036-N1 35.4 27.4 MASF048-N1 47.2 11.6 MASF060-N1 50.6 19.8 2、 INSTALLATION CAUTION Must follow the following asking when installing air curtain ： 2.2 Please install the unit inside the room. 2.1 Please install the unit in a sturdy place to avoid...
- Page 3 2.5 Don’t allow gaps between the unit and the 2.6 Don’t install the unit in a place where it is wall. When hanging it from the ceiling, using the splashed by water, exposed to excessive steam, enclosed ceiling braskets. explosive gas or corrosive gas. 3、...
- Page 4 3.4.2 Then pipe as Fig. Instructs. below installing on the concrete wall. 4、 TECHNICAL PARAMETER V olt. Freq Max input Max air Air volume Noise MODEL power speed (dB) weight (Hz) (cfm) (V~) (LBS) (ft/s) MASF036-N1 52.5 42.7 28.7 MASF048-N1 34.2 MASF060-N1 1120...
- Page 5 5、 ELECTRIC WORK YELLOW YELLOW YELLOW ORANGE ORANGE ORANGE (YELLOW) (YELLOW) (YELLOW) THERMAL THERMAL THERMAL CUT-OUT CUT-OUT CUT-OUT BROWN GREEN DOUBLE SPEED SWITCH WIRING DIACRAM Optional door switch & weather proof cover Save energy & eliminate unnecessary air circulation COM – common NO –...
- Page 6 Maxwell Maxwell Made by 2190 NW 89 Place, Doral, FL 33172 USA Rockwell Tel: (305)594-4972 Fax (305) 675-2212 www.rockwellus.com sales@rockwellus.com...
