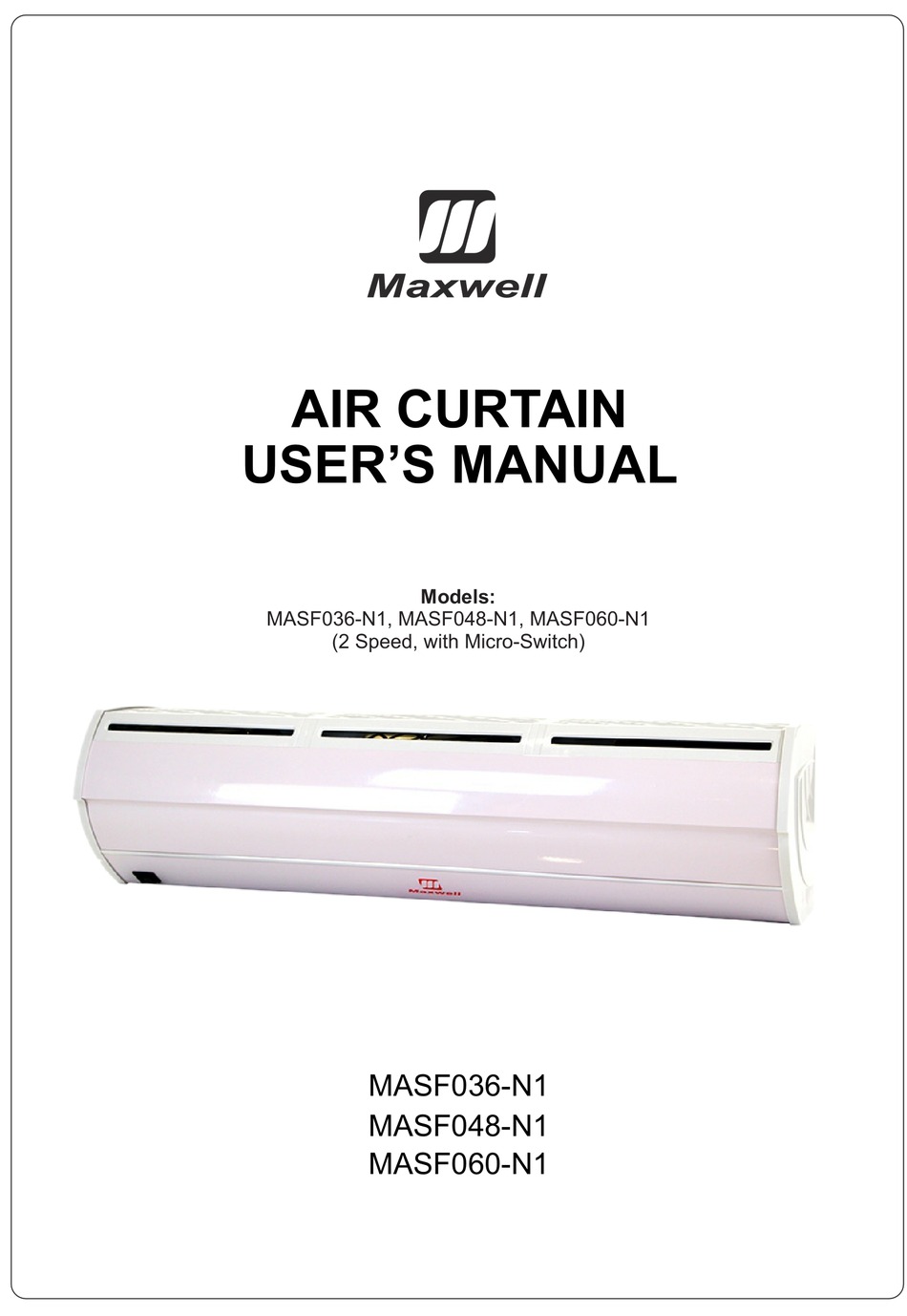

- Page 1 Maxw AIR CURTAIN USER’S MANUAL Models: MASF036-N1, MASF048-N1, MASF060-N1 (2 Speed, with Micro-Switch) MASF036-N1 MASF048-N1 MASF060-N1...
- Page 2 Maxw STOP, READ, AND TEST BEFORE INSTALLATION 1. Before plugging in power cord into power source, use a screw driver to rotate fan blades with caution. 2. Ensure that fan blades rotate smoothly, if not remove the front cover screws to open the front cover of air curtain.
-
Page 3: Table Of Contents
CAUTIONS a) Use the unit at the rated voltage and frequency indicated on the nameplate. b) Disconnect power source before unit operation. c) Routing maintenance must be done every year. d) Never use petrol, benzese, thinner or any other such chemical for cleaning the unit. e) Do not allow water or any liquid to enter motor. -
Page 4: Product Introduction
PRODUCT INTRODUCTION Create an invisible barrier over your door with Maxwell MASF series. Adopting the highest technology in aerodynamics, all Maxwell Air Curtains run smoothly with low noise. MASF Series Air Curtain by Maxwell boasts a streamlined modern appearance with no visible exterior screws. - Page 5 INSTALLATION CAUTION Must follow the following procedures when installing air curtain: 3.2 Please install the unit inside and not outdoors, 3.1 Please install air curtain in a sturdy and secure for best efficiency. place to avoid instability that can cause injury and damage to your air curtain unit.
- Page 6 4.1.3 Tighten the nuts to secure the mounting 4.1.4 Hang the main body onto the end of the mounting plate, and then tighten the bottom fixing plate to the wall after cement setting (use washers screws back to the mounting plate. and nuts) see figure.
-
Page 7: Technical Parameters
Volt. Freq Max input Max air Air volume Noise MODEL power speed (dB) weight (Hz) (cfm) (V~) (LBS) (ft/s) MASF036-N1 28.7 52.5 42.7 MASF048-N1 34.2 MASF060-N1 1120 2 SPEED SWITCH WIRING DIAGRAM YELLOW YELLOW YELLOW ORANGE ORANGE ORANGE (YELLOW) (YELLOW) -
Page 8: Wiring Diagram For Door Switch
WIRING DIAGRAM FOR DOOR SWITCH Optional door switch & weather proof cover Save energy & eliminate unnecessary air circulation COM – common NO – normally open NC – normally close 8 OPERATION 8.1: After connecting to power, (110v, 60Hz) press switch to either [L] for – Low Speed, or [H] for –... - Page 9 Maxw 2190 NW 89TH Place Doral, FL 33172 USA Made by Rockwell TEL: (305) 593-8358 FAX: (305) 499-4378 www.heatandcool.com sales@heatandcool.com...
