Summary of Contents for Tenda WH450A

  • Page 2: Copyright Statement

    Telephone: (86 755) 2765 7180 Email: support@tenda.com.cn Thank you for purchasing Tenda product. Before using this device, please read this User Guide carefully. This User Guide applies to WH450A & W900A. We will take W900A for example throughout this guide.

  • Page 3: Table Of Contents

    Access Point Contents Chapter 1 Product Overview ............................1 1.1 Product Features ................................. 1 1.2 Package Contents ................................ 1 1.3 LEDs and Interfaces .............................. 2 Chapter 2 Installation ..............................3 Chapter 3 Configuration Guidelines ..........................4 3.1 IP Configuration ................................ 4 3.2 Web Login ................................... 4 3.3 Status .................................. 4 3.3.1 System Status .............................. 4 3.3.2 Wireless Status .............................. 5 3.3.3 Traffic Statistics .............................. 6 3.3.4 Wireless Clients .............................. 6 3.4 Network .................................. 7 3.4.1 LAN Settings .

  • Page 4: Chapter 1 Product Overview

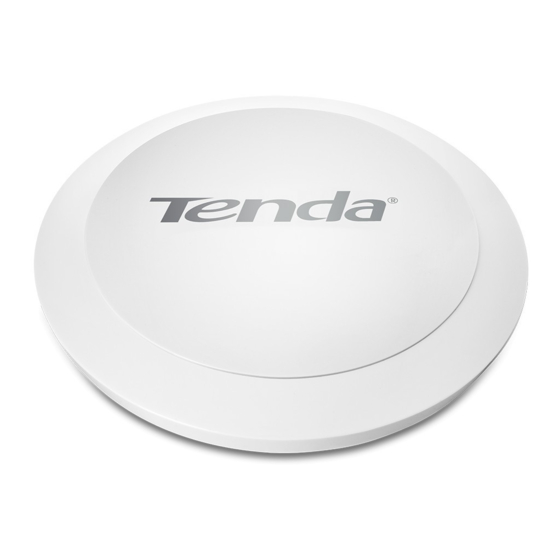

    Access Point Chapter 1 Product Overview The Wireless AP is a best-in-class 802.11n indoor access point designed specifically for wireless projects. With suspension installation and existed structure, the device saves time and costs. Versatile and powerful, the Wireless AP offers multiple security modes and supports 802.11n, which makes your data transmission safe.

  • Page 5: Leds And Interfaces

    Access Point 1.3 LEDs and Interfaces Side Panel: Power Solid: Receiving electrical power; Blinking: Functioning properly; Off: Receiving no electrical power or LED is disabled manually. 2.4GHz, 5GHz Solid: Wi-Fi is enabled; Blinking: Transferring data; Back Panel: RESET Restores the device to the factory default settings when pushed and held for 7 seconds (This button has been hidden by the bracket of this device.

  • Page 6: Chapter 2 Installation

    Access Point Chapter 2 Installation Installation procedures: 1. Connect the injector to the power adapter. 2. Connect the PoE port of the injector to the PoE port on this device with an Ethernet cable. 3. Connect the LAN port of the injector to the switch. 4.

  • Page 7: Chapter 3 Configuration Guidelines

    Access Point Chapter 3 Configuration Guidelines 3.1 IP Configuration The default IP address of your wireless access point is 192.168.0.254. If you are using the default IP subnet, the computer you are using to connect to the device should be configured with an IP address that starts with 192.168.0.x (where x can be any number between 1~253) and a Subnet Mask of 255.255.255.0;...

  • Page 8: Wireless Status

    Access Point 1. Device Name: Displays this device’s name. 2. System Time: Displays system’s current time. 3. Up Time: Displays the device’s uptime. 4. Number of Wireless Clients: Displays the information of connected wireless clients (if any). 5. Firmware Version: Displays Device’s current firmware version. 6.

  • Page 9: Traffic Statistics

    Access Point 1. Network Mode: Displays device’s current network mode. 2. Channel: Displays device’s current channel. 3. SSID: Displays device’s network name. 4. MAC Address: Displays connected wireless client’s MAC address. 5. Security Mode: Displays device’s current security mode. 3.3.3 Traffic Statistics This section displays each SSID’s traffic statistics.

  • Page 10: Network

    Access Point 1. MAC Address: Displays connected wireless client’s MAC address. 2. Link Rate: Displays the link speed rate between this device and the connected wireless client. Note ----------------------------------------------------------------------------------------------------------------------------- If no clients connected to this device, a prompt message will appear: There is no wireless client connected to the device.

  • Page 11: Wireless

    Access Point 3.5 Wireless 3.5.1 Basic Select 2.4GHz or 5GHz to configure basic settings. 2.4GHz Wireless Basic 1. Select Wireless Network: 8 SSIDs are available here. 2. Enable: Select it to enable wireless feature. As for 2.4GHz, only the first SSID is enabled by default and it can’t be disabled.
  • Page 12 Access Point operating in non-11n mode. 9. Extension Channel: This is used to enhance data throughput ability for 802.11n devices on the network. 10. WMM-Capable: WMM is QoS for your wireless network. Enabling this option may better stream wireless multimedia data such as video or audio (recommended). 11.

  • Page 13: Security

    Access Point 10. Maximum Clients: Total clients should be within 124. 3.5.2 Security This section allows you to secure your wireless network. Here we introduce 4 security modes to you. WEP is intended to provide data confidentiality comparable to that of a traditional wired network. Two types of encryption can be used with WEP: Open and Shared Key.

  • Page 14: Wds

    Access Point 1. Cipher Type: Select AES (advanced encryption standard) or TKIP (temporary key integrity protocol) &AES. 2. Security Key: Enter a security key, which must be between 8-63 ASCII characters long. 3. Key Update Interval: Enter a valid time period for the key to be changed. WPA2-PSK WPA2 (Wi-Fi Protected Access version 2) is based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
  • Page 15 Access Point 1. WDS Mode: Select Disable, Repeater Mode or Bridge Mode. 2. AP MAC Address: Displays the remote AP’s MAC address. For Example: Access Point 1 LAN IP: 192.168.0.254 Access Point 2 LAN IP: 192.168.0.253 WDS Mode: Repeater Mode Configure Access Point 1: 1）Click Open Scan to select the remote AP and click OK to add the corresponding MAC address automatically.

  • Page 16: Universal Repeater

    Access Point Then follow the steps mentioned above to configure the Access Point 2. After the two APs have added each other, they can be bridged successfully. Note ----------------------------------------------------------------------------------------------------------------------------- 1. In WDS mode, the two APs should support WDS and you should keep their SSIDs, channels, security modes and keys the same.

  • Page 17: Access Control

    Access Point 3.5.5 Access Control Specify a list of devices to allow or disallow a connection to your wireless network via the device's MAC addresses. To deactivate this feature, select "Disable"; to activate it, select "Allow" or "Deny" (2.4GHz/5GHz). MAC Address Filter: Select Allow or Deny from the drop-down list. 1.

  • Page 18: Snmp

    Access Point 3. Fragment Threshold: Specify a valid Fragment Threshold value between 256-2346. The default value is 2346. Any wireless packet exceeding the preset value will be divided into several fragments before transmission. 4. RTS Threshold: Specify a valid RTS Threshold value between 1-2347. The default is 2347. If a packet exceeds the preset value, RTS/CTS scheme will be used to reduce collisions.
  • Page 19 Access Point To upgrade device software: 1. Open a web browser and go to http://www.tendacn.com to download latest firmware. 2. Unzip the compressed upgrade file (.ZIP file). 3. Click Browse to locate and select upgrade file on your hard disk. 4.

  • Page 20: Time

    Access Point 3.7.2 Time This page is used to set the device’s system time. You can choose to set the time manually or get the GMT time from the Internet and the system will automatically connect to NTP server to synchronize the time.

  • Page 21: Configuration

    Access Point 3.7.4 Configuration Backup & Restore This section allows you to save a copy of the device configurations on your local hard drive or to restore the previous configurations back to the device. Backup: Once you have configured the device the way you want it, you can save these settings to a configuration file on your local hard drive that can later be imported to your device in case that the device is restored to factory default settings.

  • Page 22: User Name & Password

    Access Point Factory Default Settings: Ø User Name: admin Ø Password: admin. Ø IP Address: 192.168.0. 254 Ø Subnet mask: 255.255.255.0 3.7.5 User Name & Password Here you can change the user name and password for web login. The default username and password is admin/admin.

  • Page 23: Led

    Access Point 3.7.7 LED This section allows you to modify LED status.

  • Page 24: Appendix 1 Glossary

    Access Point Appendix 1 Glossary Channel A communication channel, also known as channel, refers either to a physical transmission medium such as a wire or to a logical connection over a multiplexed medium such as a radio channel. It is used to transfer an information signal, such as a digital bit stream, from one or more transmitters to one or more receivers.

  • Page 25: Appendix 2 Configure Pc

    Access Point Appendix 2 Configure PC WIN7 OS Configuration 1. Click Start > Control Panel; 2. Enter Control Panel and click Network and Internet; 3. Click Network and Sharing Center;...
  • Page 26 Access Point 4. Click Change adapter settings; 5. Right click Local Area Connection and select Properties; 6. Select Internet Protocol Version 4(TCP/IPv4) and click Properties;...

  • Page 27: Windows Xp Os Configuration

    Access Point 7. Select Use the following IP address, enter 192.168.0.X (where x can be any number between 1~253) in the IP address bar and 255.255.255.0 in the subnet mask and then click OK to save the configurations. Windows XP OS Configuration 1.
  • Page 28 Access Point 3. Select Internet Protocol(TCP/IP) and click Properties; 4. Select Use the following IP address, enter 192.168.0.X (where x can be any number between 1~253) in the IP address bar and 255.255.255.0 in the subnet mask and then click OK to save the configurations.
