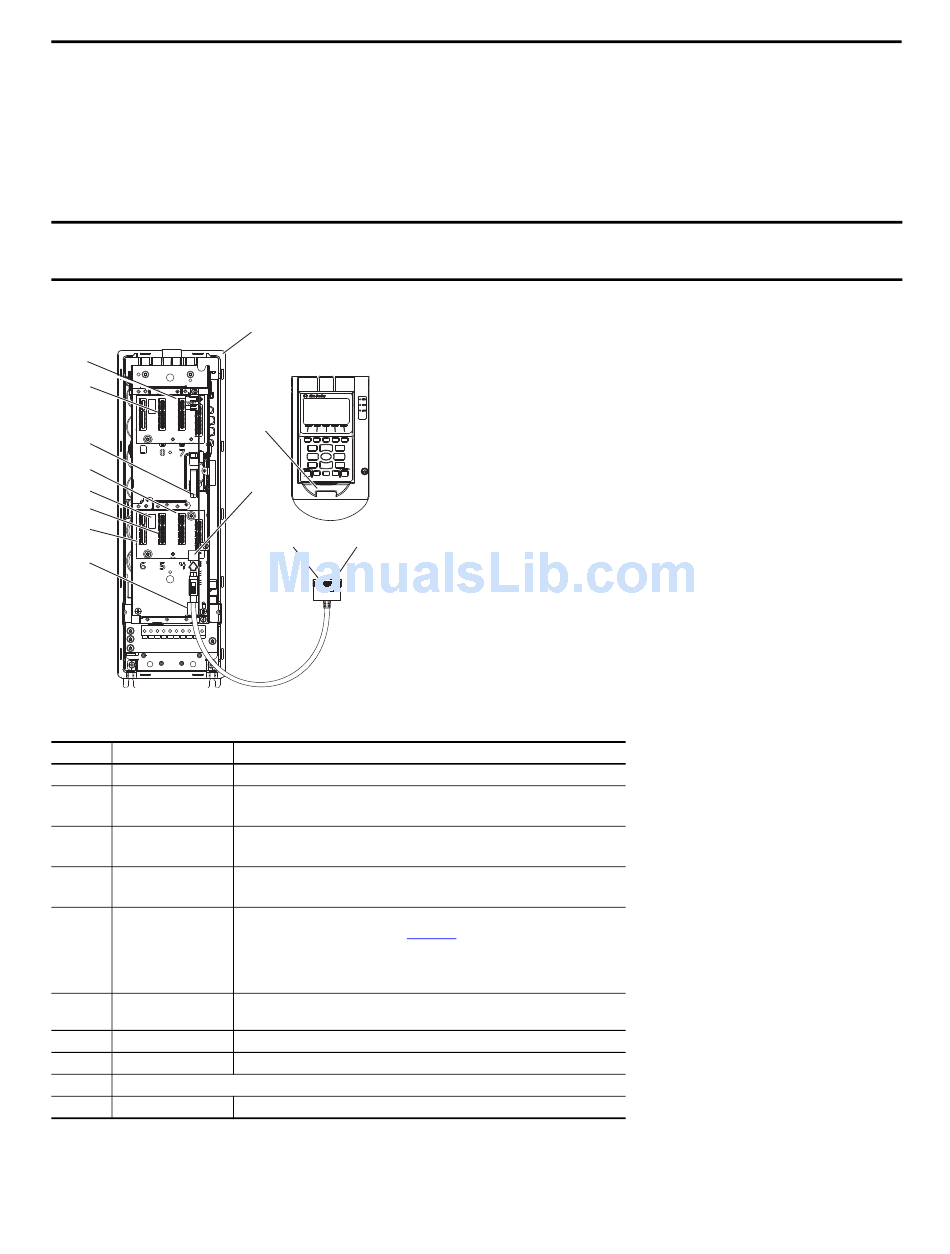

Drive Device Ports

Connectors, embedded devices, and installed option modules such as I/O, communication adapters, and DeviceLogix,
have unique port number assignments. Connectors and embedded devices have fixed port numbers that cannot be
changed. Option modules are assigned a port number when installed.
The 750-Series drive uses the term 'Port' to designate (in software) the physical location where hardware is located for ease of
IMPORTANT
selecting hardware or functions to program.
7
8
10, 11
4
9
5
6
13
Table 2 - Drive Device Ports and Descriptions
Port
Device
0
Host Drive
1
HIM
2
DPI Port
3
Splitter Cable
(optional)
4...8
Option Modules
9
Auxiliary Power Supply
Option Module
10
Inverter
11
Converter
12
Reserved for future use.
13
EtherNet/IP
0
1
2
3
2
Description
Fixed port for the drive.
Fixed port at HIM cradle connector.
Splitter cable connector provides Port 01 when HIM cradle connector is unused.
Handheld or Remote HIM connection.
Splitter cable connection.
Connects to DPI Port 2.
Provides Port 2 and Port 3.
Available ports for option modules. Refer to the PowerFlex 750-Series AC Drives
Installation Instructions, publication 750-IN001, for more information on each
option's port recommendations.
Important: Ports 7 and 8 are available on PowerFlex 755 Frame 2 drives and larger
only. PowerFlex 755 Frame 1 drives and 753 drives do not support Ports 7 and 8.
Designated port for the Auxiliary Power Supply when connected via cable.
(PowerFlex 755 Frame 1 and 753 drives only.)
Fixed port for Inverter (PowerFlex 755 Frame 8 drives and larger only).
Fixed port for Converter (PowerFlex 755 Frame 8 drives and larger only).
Fixed port for embedded EtherNet/IP (PowerFlex 755 drives only).
Rockwell Automation Publication 750-QS001A-EN-P - March 2015
