Drive Setup

Follow these steps to set up each of your drives.
Enter Motor Nameplate Data

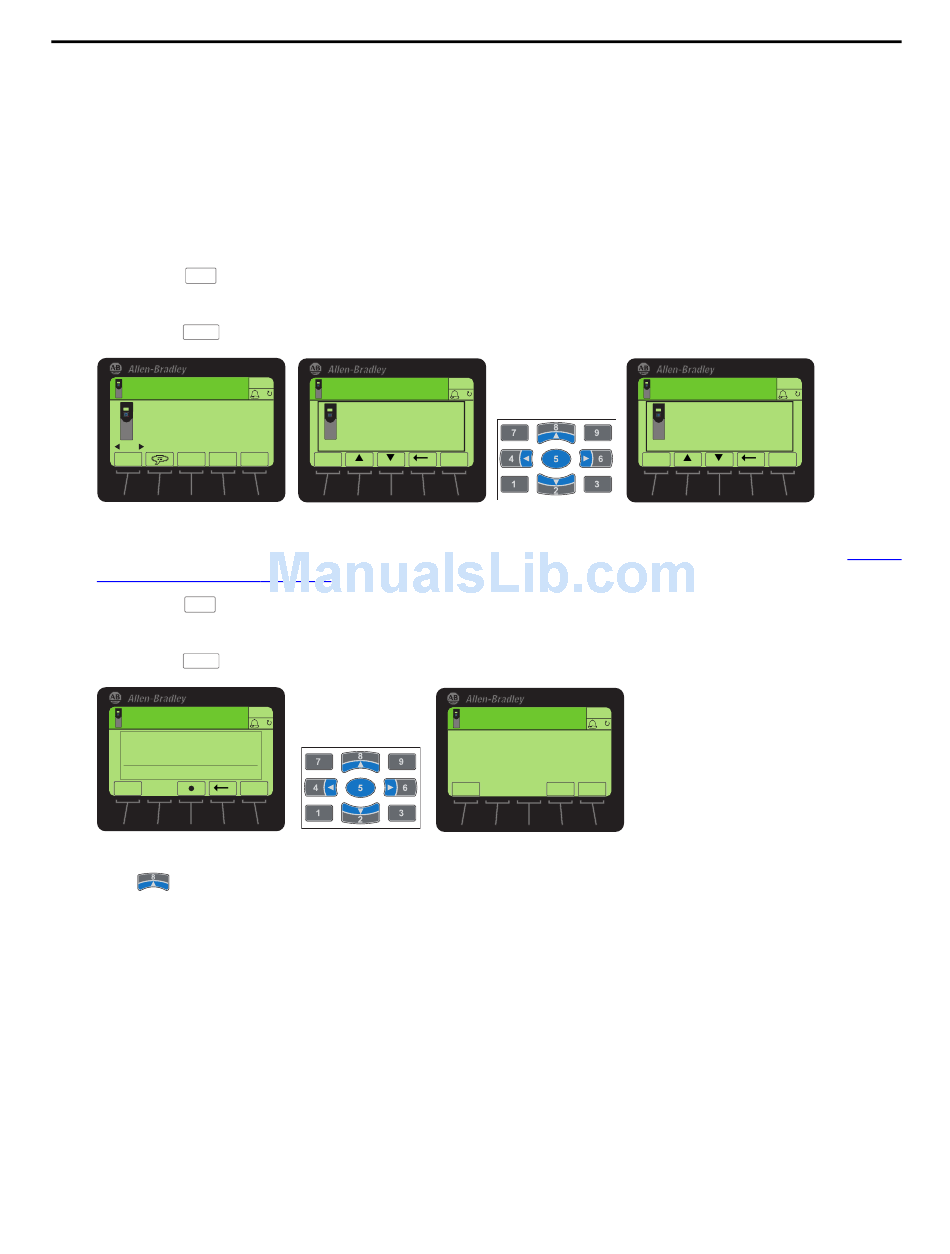

1. From the Main Powerup Screen, access parameter 25 [Motor NP Volts].
• Press the PAR# soft key.
• Enter 25 using the numeric keys.
• Press the ENTER soft key.
Stopped
0.000 Hz
PowerFlex 753
480V 4.2A
20F...B4P2
00
ESC REF PAR#
PowerFlex 753 Powerup Screen
2. Use the numeric value from the Motor Nameplate data gather in Step 1: Gather Required Information under
Motor Nameplate Data on page 7
• Press the soft key.
EDIT
• Enter the nameplate voltage numeric value using the keypad.
• Press the ENTER soft key.
Stopped
0.000 Hz
Edit Mtr NP Volts
480.00 VAC
0.10 << 552
ESC
Edit Motor NP Volts Screen
3. Press on the keypad to advance to the next parameter number, and continue to enter the remaining motor data
gathered in Step 1: Gather Required Information in this order.
• Parameter 26 [Motor NP FLA]
• Parameter 27 [Motor NP Hertz]
• Parameter 28 [Motor NP RPM]
AUTO Stopped
F 0.000 Hz
PowerFlex 753
Jump to Param #
00
TEXT
ESC
Parameter Screen
to verify the value on the screen. If a change is required,
AUTO
F
ENTER
Keypad
