Summary of Contents for Polaroid S501W

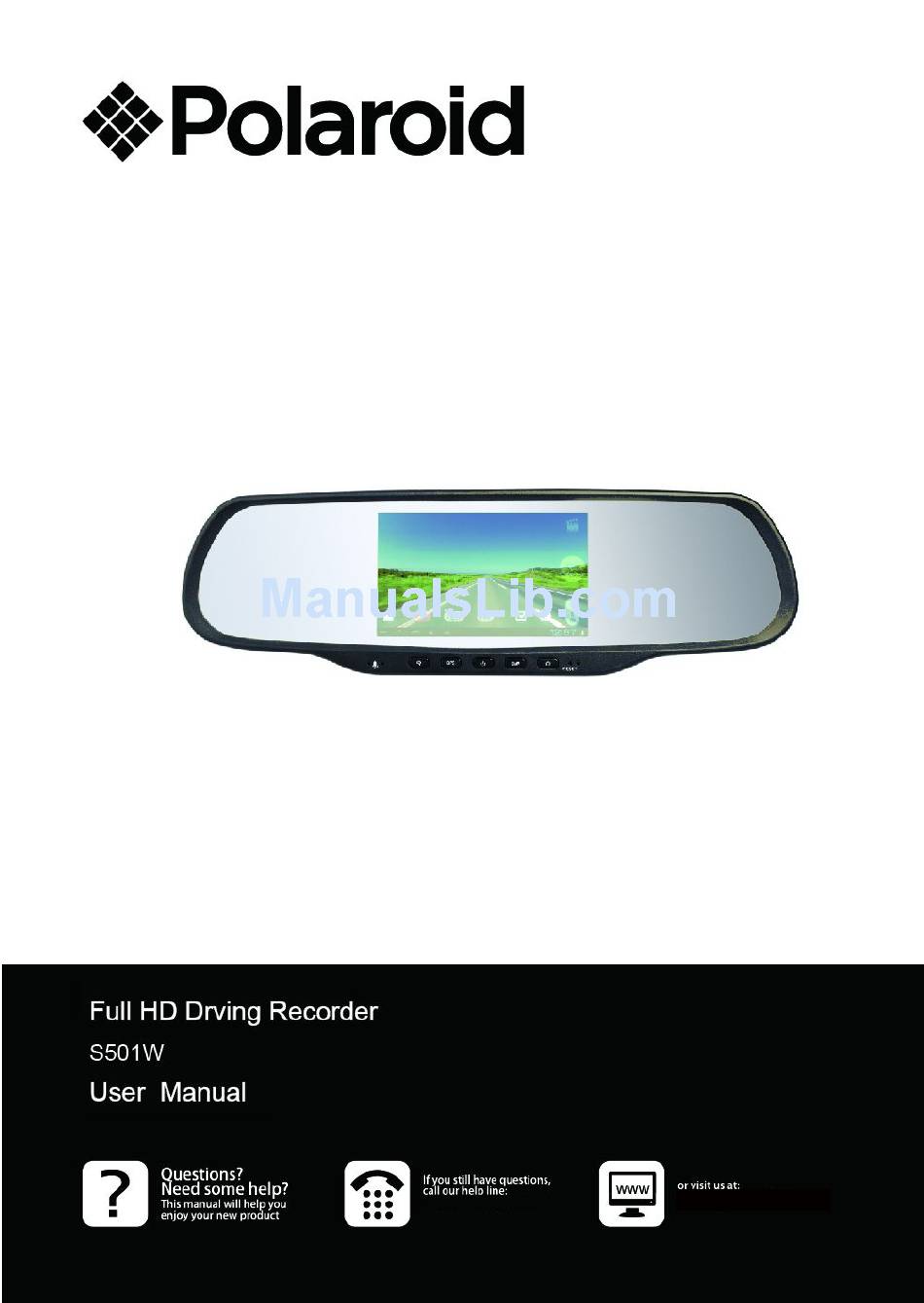

  • Page 1 www.polaroidcarcam.com 400-8401-030...
  • Page 2: Table Of Contents

    Contents About this guide................5 Battery warning................5 Installation Notes................. 5 Introduction................6 Function................6 Package contents............6 Instructions for Use of Car Charger........Getting started..............7 Inserting the memory card..........7 Installing in Vehicles............8 Powering the Device On / Off........8 2.3.1 Auto Power On/Off..........
  • Page 3 Setting.................. 16 FM Transmitting..............17 USB connection..............17 Specifications..............18...
  • Page 4: About This Guide

    About this Guide The content in this document is for information purpose and is subject to change without prior notice. We made every effort to ensure that this User Guide is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred. The manufacturer reserves the right to change the technical specifications without prior notice.
  • Page 5: Introduction

    1.2 Package Contents The package contains the following items. In case there is any missing or damaged item, contact your dealer immediately. Products and Parts List 1. Polaroid Full HD Driving Recorder 2. Rear camera 3. Car Power Adaptor 4. USB Cable 5.
  • Page 6: Instructions For Use Of Car Charger

    1.3 Instructions for Use of Car Charger ●The current for car charger should not be less than 2.5A. ●If the recorder is powered off due to weak power, an icon of a battery being recharged will appear after the recorder is connected to the charger.You are advised to press and hold on the power button after a few minutes of recharging.
  • Page 7: Installing In Vehicles

    To remove the memory card Push to eject the memory card out of the slot. Note: 1. Do not remove or insert the memory card when the device is turned on. This may damage the memory card. 2. Please use a Class 6 or higher rating Micro SD card, max. up to 32GB. 3.
  • Page 8: Manual Power On/Off

    2 . 3 . 2 Ma n u a l P o w e r O n / O f f press the power button to turn it on. Press the power button for 3 seconds to shut down. 3. Video Recording During Driving Note: The option Automatic Video Recording is selected by default for the first use of the recorder.
  • Page 9 Menu of function options ON/OFF of watermark ON /OFF of mute function for video recording Setting of Gsensor sensitivity Switchover of front/rear camera ON/OFF motion detection ON/OFF automatic video-recording function ON/OFF of Picture-In-Picture function Formatting of SD card Setup menu of video recording Setting of white balance Setting of exposure rate Setting of color mode...
  • Page 10: Function For Taking Picture

    Switchover of Video Recording/Taking Picture Start recording/Stop key Playback key of video 3 . 4 Function for taking picture Setting menu of taking picture Setting of resolution ratio of picture Switchover of Video Recording/Taking Picture Key for taking picture Playback key of pictures *As for other setting, please refer to Introduction of Function Keys of Video Recording.
  • Page 11: G-Sensor

    3.6 It is equipped with high sensitivity Gsensor detector, so the current file can be automatically locked in case of danger and cyclic covering of the file is impossible. 4 . G P S N a v i g a t i o n 4 .
  • Page 12 5 . 2 Click Start Bluetooth. Start the Bluetooth function of mobile phone and bind the function after finding CAR KIT device. The password is 0000.。 5 . 3 Upload phone book 5.4 Click , and then the system will ask the mobile phone to upload phone book.
  • Page 13 5.10 Dial directly on the keyboard and press 5.11 After the line is connected, the available keys are ①Hide/Display Keypad, ②Volume +, ③Volume – and ④Hang Up. 5.12 Click to enter the Phone Book for making a call. 5.13 Click Pairing List to enter the page for detailed call history as follows. 5.14 Click to refresh the paired equipment list.
  • Page 14: Other Applications

    5.17 Click Call History to enter the following page: 5.18 Click to dial the selected number. 5.19 Click to delete the selected singlepiece of historic record. 5.20 Click to delete all the call history. 5.21 Special Functions of Bluetooth The equipment is able to bind multiple mobile devices, and there will be independent call history and phone book space after binding.
  • Page 15: Music

    7. Music Click Music to play your favorite. Setting Click Setting to see relevant setting for WIFI, Bluetooth connection, sound, display, date, time, etc.. Interface 2: Slide to the left on the main interface to enter the second interface as follows:...
  • Page 16: Fm Transmitting

    FM Transmitting 9.1 Firstly select transmitting frequency of FM and then click . The FM Transmitting has been started. 9.2 Open a video or play a piece of music and set the radio to corresponding frequency for receiving test. 1 0 U S B c o n n e c t i o n To download registered files on your PC/notebook, please connect the device to the PC or notebook via USB-cable provided.
  • Page 17: Specifications

    1 1 . T e c h n i c a l S p e c i f i c a t i o n s Item Description Image Sensor 1/2.7” CMOS Sensor Recording 1920 (H) x 1080 (V) resolution Storage method 32GB Micro SD/SDHC Memory card 5’...
  • Page 18 www.polaroidcarcam.com 400-8401-030...
