Summary of Contents for Polaroid S503W

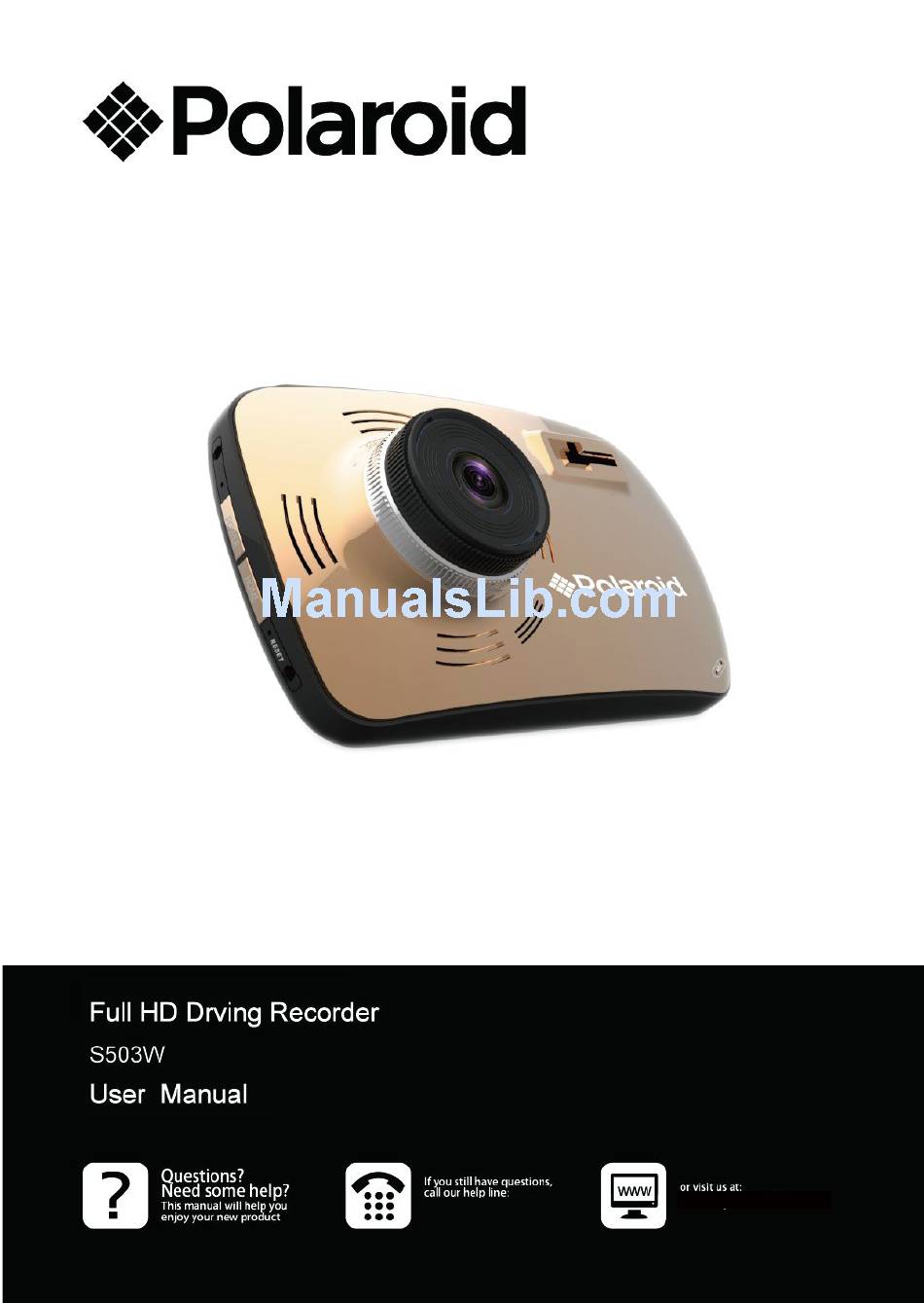

- Page 1 www.polaroidcarcam.com 400-8401-030...
-
Page 2: Table Of Contents
Contents About this guide................5 Battery warning................5 Installation Notes................. 5 Introduction................6 Function................6 Package contents............6 Product overview............. 7 ........8 Instructions for Use of Car Charger Getting started..............8 Inserting the memory card..........8 Installing in Vehicles............9 Powering the Device On / Off........9 3.3.1 Auto Power On/Off.......... - Page 3 USB connection..............15 Specifications ..............16...
-
Page 4: About This Guide
About this Guide The content in this document is for information purpose and is subject to change without prior notice. We made every effort to ensure that this User Guide is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred. The manufacturer reserves the right to change the technical specifications without prior notice. -
Page 5: Introduction
1.2 Package Contents The package contains the following items. In case there is any missing or damaged item, contact your dealer immediately. Products and Parts List 1. Polaroid Full HD Driving Recorder 2. Rear camera 3. Car Power Adaptor 4. USB Cable 5. -
Page 6: Product Overview

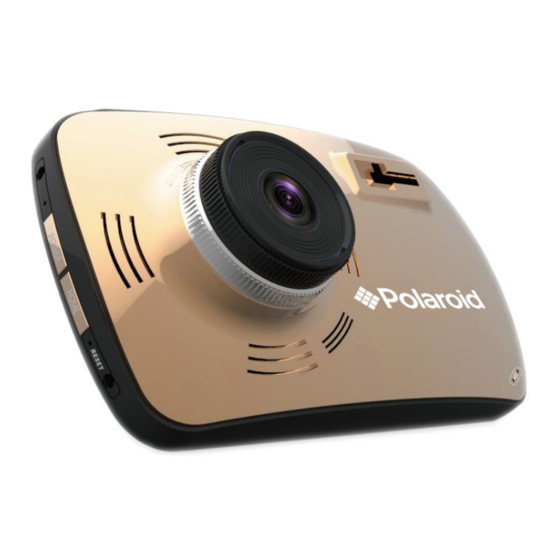

1.3 Product overview Name Name Lens USB Port LED Light AVIN Port Reset Button SD Card Slot 1 (Recorder Dedicated) Return Button SD Card Slot 2 (Map Navigation Dedicated) Power Button... -
Page 7: Instructions For Use Of Car Charger
Instructions for Use of Car Charger ●The current for car charger should not be less than 2.5A. ●If the recorder is powered off due to weak power, an icon of a battery being recharged will appear after the recorder is connected to the charger.You are advised to press and hold on the power button after a few minutes of recharging. -
Page 8: Installing In Vehicles
To remove the memory card Push to eject the memory card out of the slot. Note: 1. Do not remove or insert the memory card when the device is turned on. This may damage the memory card. 2. Please use a Class 6 or higher rating Micro SD card, max. up to 32GB. 3. -
Page 9: Traffic Vide
4. Video Recording During Driving Note: The option Automatic Video Recording is selected by default for the first use of the recorder. After being powered on, the recorder (with an SD card) starts recording automatically, and returns to the main interface automatically five seconds later (Background video recording is underway.) 4 . - Page 10 Gsensor ：It is equipped with high sensitivity Gsensor detector, so the current file can be automatically locked in case of danger and cyclic covering of the file is impossible. As shown below： switchover of front/rear camera ON/OFF motion detection ON/OFF automatic video-recording function ON/OFF of Picture-In-Picture function Formatting of SD card （Only format the special TF card for vehicle traveling data recorder.）...
-
Page 11: Function For Taking Picture
Setting of resolution ratio of video Setting of camera switchover Switchover of Video Recording/Taking Picture Start recording/Stop key Playback key of video 4.3 Function for taking picture Setting menu of taking picture Setting of resolution ratio of picture Switchover of Video Recording/Taking Picture Key for taking picture Playback key of pictures *As for other setting, please refer to Introduction of Function Keys of Video... -
Page 12: Reversing Function
4.4 Automatically switch over to rear camera menu during backup (Support Backup Wakeupfunction.). 5. GPS Navigation 5.1 Click Navigation or icon on the panel for relevant functions. 5.2 Other navigation applications (such as AutoNavi Map, RITU Map, Google Map, Baidu Map, etc.) can be supported. The users can install them for trial. -
Page 13: Other Applications
6. Other Applications Click Other Applications and preset or user-installed APK application program will appear. 7. Music Click Music to play your favorite. 8. Setting Click Setting to see relevant setting for WIFI, Bluetooth connection, sound, display, date, time, etc.. -
Page 14: Default Gps Navigation Settings
Default GPS navigation settings. 9.1 Select the desired default one-key navigation map, e.g. Careland Map, Gaode Map. (If you want to install some necessary APK applications, please refer to Gaode Navigation Installation Guide.pdf or search the installation instructions via internet). 9.2 Return to the home screen, click “Navigation”... - Page 15 1 1 . T e c h n i c a l S p e c i f i c a t i o n s Item Description Image Sensor 1/2.7” CMOS Sensor Recording 1920 (H) x 1080 (V) resolution Storage method 32GB Micro SD/SDHC Memory card 5’...
- Page 16 www.polaroidcarcam.com 400-8401-030...
