Polaroid E272S User Manual

Fhd driving recorde
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FHD Driving Recorder
E272S/S272W
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E272S and is the answer not in the manual?

Questions and answers

Related Manuals for Polaroid E272S

Summary of Contents for Polaroid E272S

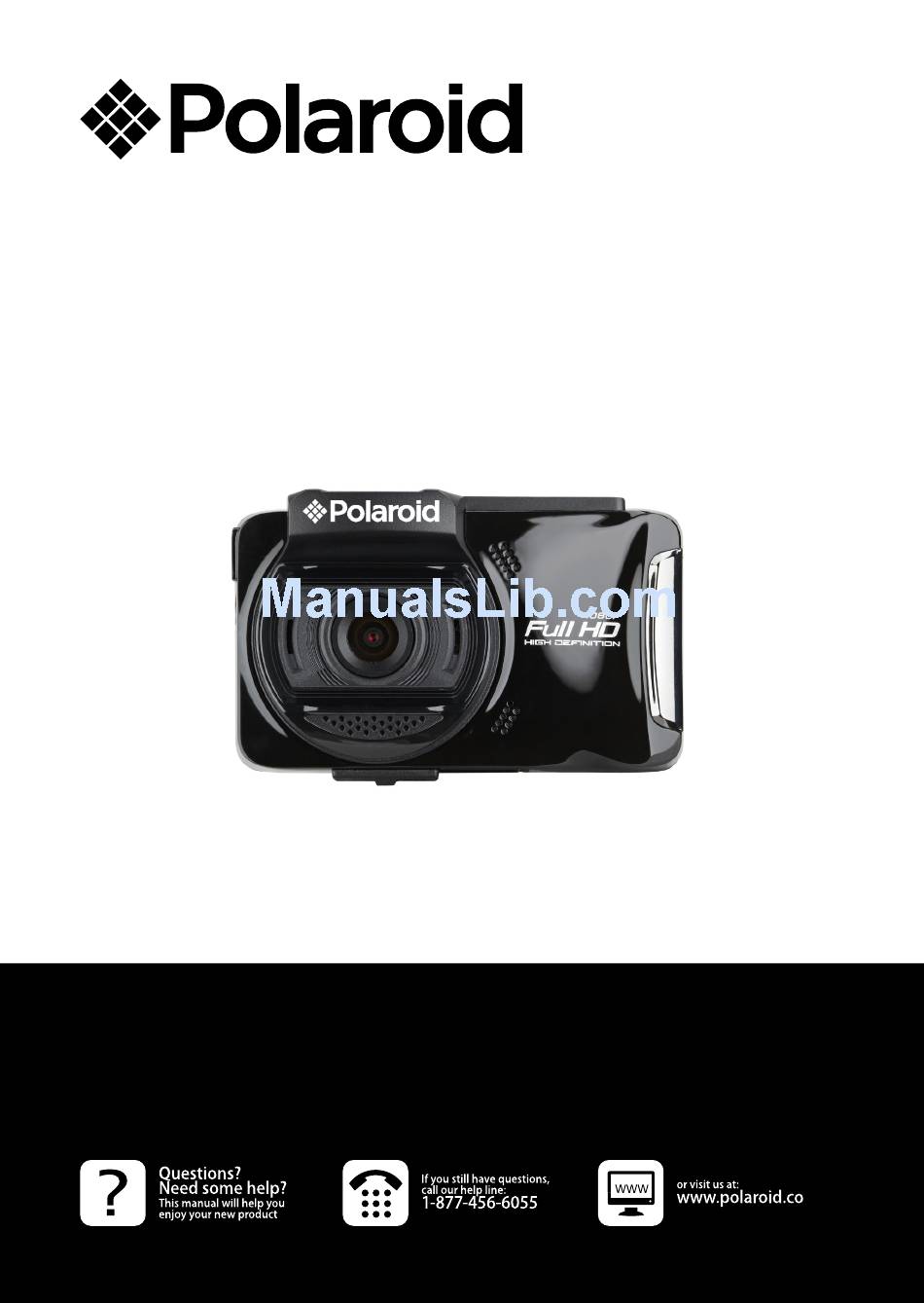

  • Page 1 FHD Driving Recorder E272S/S272W User Manual...

  • Page 2: Table Of Contents

    Contents About this Guide ..............4 FCC Statement ..............4 Prohibition of co-location ............4 Important note ..............5 WEEE Notice ................ 5 CE Regulatory Notice ............5 Battery warning ..............6 Notes on Installation ............. 6 Caution ................. 7 Introduction ..............
  • Page 3 2.5.2.2 Power Off ............17 2.5.2.3 Reset the device ........... 17 Initial Settings ............18 2.6.1 Set Automatic Record ........18 2.6.2 Set the Date / Time ........19 Application ............... 20 2.7.1 Application installation ........20 2.7.2 Wi-Fi connecting ........... 20 Using the Car Recorder ..........
  • Page 4 Menu Items .............. 36 Installing the Software ..........41 SuperCar ..............42 Specifications .............. 43...

  • Page 5: About This Guide

    About this Guide The content in this document is for information purpose and is subject to change without prior notice. We made every effort to ensure that this User Guide is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred.

  • Page 6: Important Note

    Important note Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This equipment should be installed and operated with minimum distance 20cm between the radiator &...

  • Page 7: Battery Warning

    Battery warning Always charge using the provided system. Improper handling of the battery may result in explosion. Never dismantle or pierce the battery or allow the battery to short-circuit. Keep the battery out of reach of children. Batteries may explode if exposed to naked fire. Never dispose of batteries in a fire.

  • Page 8: Caution

    Caution Due to local laws and vehicles safety considerations, do not operate the device while driving. Set up time and date accurately before you use this device. Please use SuperCar software in condition that Google Map is function normally. The firmware function in the device is for reference only, please follow the actual road condition.
  • Page 9 The product employs wireless data communication which may interfere, or be interfered by, a near-by device. Never use this device in the vicinity of a microwave oven or at places where there is radio interference. Radio wave reception worsened in specific environments.
  • Page 10 • Medical Facilities: Hospitals and medical institutes may use facilities that are sensitive to an external RF energy. Observe such instructions when the medical care personnel or any posted sign requests you to switch off any device that may interfere the radio frequency. •...

  • Page 11: Introduction

    1 Introduction Thank you for purchasing this advanced Car Recorder. This device is specifically designed for real time video and audio recording when driving. 1.1 Features • Full recording videos (1920x1080@30fps 1280x720@60fps) • 2.7” LCD color touch screen • Wide angle lens •...

  • Page 12: Product Overview

    1.3 Product Overview Front View Top and Bottom Views Side (Left and Right) Views Rear View Item Item Bracket Socket Wide Angle Lens Memory Card Slot Wi-Fi Transmission Power Switch Speaker LED Indicator Microphone USB / Power Connector LCD Touch Panel GPS Antenna...

  • Page 13: Getting Started

    2 Getting Started 2.1 Inserting the Memory Card Insert memory card with the gold section facing upward and the screen of the device facing upward too, as illustrated. Push the memory card in until a click sound is heard, indicating the card is in position.

  • Page 14: Installing In Vehicles

    2.2 Installing in Vehicles 2.2.1 Mount to Windshield Push the bracket into bracket slot on top of device, until a click sound is heard. With the suction-cup laying flat, position the suction-cup on the windshield. Hold the base firmly on the windshield and press down the clamp to mount the car holder to the windshield.

  • Page 15: Adjust The Device Position

    2.2.2 Adjust the device position Loose the knob to swivel the device vertically. Knob Loose the knob to swivel the device horizontally up to 360°. Knob Then tighten the knob to make sure the device is securely locked in place.

  • Page 16: Connecting To Power

    2.3 Connecting to Power Use only the attached power connector for activating the device and charging the built-in battery. Connect one end of power connector to USB/Power connector port on the device. Plug the other end of the car adapter to the cigarette lighter socket of your vehicle.

  • Page 17: Led Indicator

    Battery Status Indicator: Icon Description Full battery power. 2/3 battery power. 1/3 battery power. Out of battery power. Battery is charging. Connect the car adapter to charge the battery, battery is full charged. Note: Please take note if the environment temperature reaches 45°C or above, the car adapter still can supply power to device, but it will not charge the Lithium-ion battery.

  • Page 18: Powering The Device On / Off

    2.5 Powering the Device On / Off 2.5.1 Auto Power On/Off Once the vehicle engine is started, the device automatically turns on. If the Automatic Record function is enabled, the recording will automatically start right after the device turns on. Please refer to Set Automatic Record ( 2.6.1).

  • Page 19: Initial Settings

    2.6 Initial Settings Before using the device, we recommend you to enable the Automatic Record function and set up the correct Date and Time. 2.6.1 Set Automatic Record Default setting of Automatic Record is Enabled. The device will automatically start recording when powered on. In case Automatic Record is disabled, enable it by the following steps: Touch to enter Main Menu.

  • Page 20: Set The Date / Time

    2.6.2 Set the Date / Time To set the correct date and time, do the following: Touch to enter Main Menu. System main menu, touch to select for Set Timezone menu, touch to set the current time zone; then touch again to complete setting.

  • Page 21: Application

    System Main Menu. Touch to select for entering Wi-Fi function menu; wait for screen to display device ID and Wi-Fi password. Note: The Wi-Fi content mentioned Instruction Manual is Device ID function Wi-Fi password S272W, but it is not available for E272S.
  • Page 22 Using Wi-Fi function of a mobile device, search for device ID from the list and select and enter Wi-Fi Password. For iOS / Android Users: Using the mobile device [Settings] → [Wi-Fi] → [Select device ID no.: S272WXXXXXX] → [Enter the password] → [Connecting] Execute the Life Cam App。...

  • Page 23: Using The Car Recorder

    3 Using the Car Recorder 3.1 Recording Videos 3.1.1 Record videos while driving When the vehicle engine starts up and the Automatic Record function is enabled, the device automatically turns on and starts recording. The touch panel function is not ready yet within 2 seconds upon the Auto Recording start.
  • Page 24 Touch to return to record screen. After enabling LDWS, screen displays LDWS cross line , please adjust the equipment to align the skyline with the horizontal line, and make sure the vertical line in the middle of road. Vanishing Point Eye Level Horizon when satellite positioning is in ready state, device will give a...

  • Page 25: Driver Fatigue Alert

    3.1.3 Driver Fatigue Alert When Driver Fatigue Alert is enabled, a voice alert and a warning screen will be activated 1 hour after the device is powered on, with a repetition at every subsequent 30 minutes. To set the driver fatigue alert, do the following: Touch to enter main menu.

  • Page 26: Motion Detection

    3.1.4 Motion Detection If Motion Detection is activated, turned off the car adapter when the device is powered on, the system alert message “Wait for 10 seconds to enter Motion Detection or touch the screen to power off” will be displayed on the screen. This means the system will enter Motion Detection automatically in 10 seconds;...

  • Page 27: Record All Other Types Of Videos

    3.1.5 Record all other types of videos Touch to start recording. Touch again, to halt the recording. Note: 1. It can be configured to save a video file for every 3 or 5 minutes of recording. Please refer to Video Duration ( 4.2). 2.

  • Page 28: The Recording Screen

    3.1.7 The Recording Screen Icon Item Description Recording Indicates the recording status. Icon Indicates the current recording date Date / Time and time. Touch to add a speed cam Add speed point point. Touch to enter the main Menu menu. While recording, touch Taking Snapshot take a photo.

  • Page 29: Taking Snapshot

    Touch to enter the 4 GRID 4 GRID FUNCTION CHART in the LCD FUNCTION screen. Please refer to 4 GRID CHART in the LCD FUNCTION CHART in the LCD screen screen ( 3.1.9). Remind the user to reset the Date Reset of date / / Time before start to use the time...

  • Page 30: Grid Function Chart In The Lcd Screen

    3.1.9 4 GRID FUNCTION CHART in the LCD screen Please touch when you are recording, then you can see the 4 GRID FUNCTION CHART in the LCD screen. Touch any point of the screen to return to Record Screen. Item Item Driving Speed Driving direction...

  • Page 31: Playing Videos And Viewing Pictures

    3.2 Playing Videos and Viewing Pictures 3.2.1 Playing Videos and Emergency Recording Playback video record files as follows: Touch to enter main menu. Touch to switch over to File / Position menu. Touch to enter Video/ Emergency function menu. Touch to browse for required video file, touch selected preview of video to enter Playback Mode Touch...

  • Page 32: Viewing Pictures

    3.2.2 Viewing Pictures View pictures as follows: Touch to enter Main Menu. Touch to switch over to File / Position main menu. Touch to enter Picture function menu. Touch to browse for required picture files, touch selected preview of picture to enter Picture Playback Mode. Touch repetitively to return Record Screen.

  • Page 33: The Playback Screen

    3.2.3 The Playback Screen Video Playback Screen Picture Playback Screen Icon Item Description Indicates name of current video or File Name picture file. Current Duration / Indicates time code and duration of Video current video file. Duration Touch to enter File Deletion Menu menu.
  • Page 34 Icon Item Description • Touch when video or picture is not in playback will Fast switch over to the next file. forward / • Next File Touch in video playback mode will enable fast forward playing of video. Playback/ Touch to play or pause Pause the video.

  • Page 35: Deleting Files

    3.2.4 Deleting Files To delete file(s), do the following: Touch to enter Main Menu. Touch to switch over to File / Position main menu. Touch to enter Video/Picture/Emergency menu. Touch to browse for required video or picture file; touch selected preview image to enter Video/Picture Playback Mode.

  • Page 36: Adjusting The Settings

    4 Adjusting the Settings 4.1 Using the Menu You can customize the general settings via the on-screen display (OSD) menus. Touch in the record mode will stop the record and enter into Main Menu. Touch to switch over main menus. Touch to browse for function items in the respective main menu;...

  • Page 37: Menu Items

    4.2 Menu Items Refer to the below table for details of main menu and function list. Main Function List Description Available Option Menu Date / Time Set the date and time. UTC -12:00 ~ Set the time zone you Set Timezone are in.
  • Page 38 Main Function List Description Available Option Menu Satellite Select satellite system GPS / GLONASS System of the locality. Format memory card inserted in the Recorder equipment. All the files Yes / No Format in the card will be erased. Default Resume the equipment Yes / No Setting...
  • Page 39 Main Function List Description Available Option Menu positioning, device will issue a voice alert and an alarm image when vehicle speed is above 50 km/h (31 mile/h) and the distance with the front vehicle is less than 20m. When Front Vehicle Go activated after satellite...
  • Page 40 Main Function List Description Available Option Menu When Driver Fatigue Alert is enabled, a voice alert and a warning Driver screen will be activated On / Off Fatigue Alert 1 hour after the device is powered on, with a repetition every subsequent 30 minutes.
  • Page 41 Main Function List Description Available Option Menu FHD (1080P/30fps) / Setting video Resolution HD30 (720P/30fps) / resolution. HD60 (720P/60fps) Set the exposure +2.0 ~ -2.0 compensation. Setting enabling Automatic Automatic Record after On / Off Record device power on. Save respective video Record Video files in a length of the...

  • Page 42: Installing The Software

    5 Installing the Software 1. Place the attached CD ROM into the CD player. 2. If the CD does not execute automatically, please use Windows File Manager to execute the Install_CD.exe file in the CD. The following screen will be shown up. 3.

  • Page 43: Supercar

    6 SuperCar Item Item Video Player File Path Play / Pause Browser File Previous File List Next File Name Stop Volume Current Duration / Total Google Map Duration Compass Signal Noise Ratio (SNR) Speed Meter G-Sensor Note: 1. To display the route on Google Maps, please make sure the internet is connected before starting the video playback.

  • Page 44: Specifications

    Specifications Item Description Image sensor 1/2.7” CMOS sensor 1920 (H) x 1080 (V) Effective pixels Storage media Support Micro SDHC Class 6, max. up to 32GB LCD display 2.7” LCD color TFT touch screen Wide Angle Fixed Focus lens Lens F2.0, f=3.4mm Focus range 1.5m~Infinity...
  • Page 45 Item Description Speaker Interface Mini USB Battery Built-in 470mAh Li-polymer rechargeable Operating 0° ~ 50° C Temperature Operating 20 ~ 70% RH Humidity Storage -20° ~ 80° C Temperature Dimensions 80 x 30.3 x 51.2 mm Weight Approx. 82g (without memory card) Built-in IEEE 802.11n Wi-Fi module: WN7911B-WM Frequency range 2412~2462MHz Channel List...
  • Page 46 Copyright © 2014 All rights reserved. All other marks, products or company names mentioned in this guide are trademarks of their respective companies.
