Summary of Contents for German pool MN50

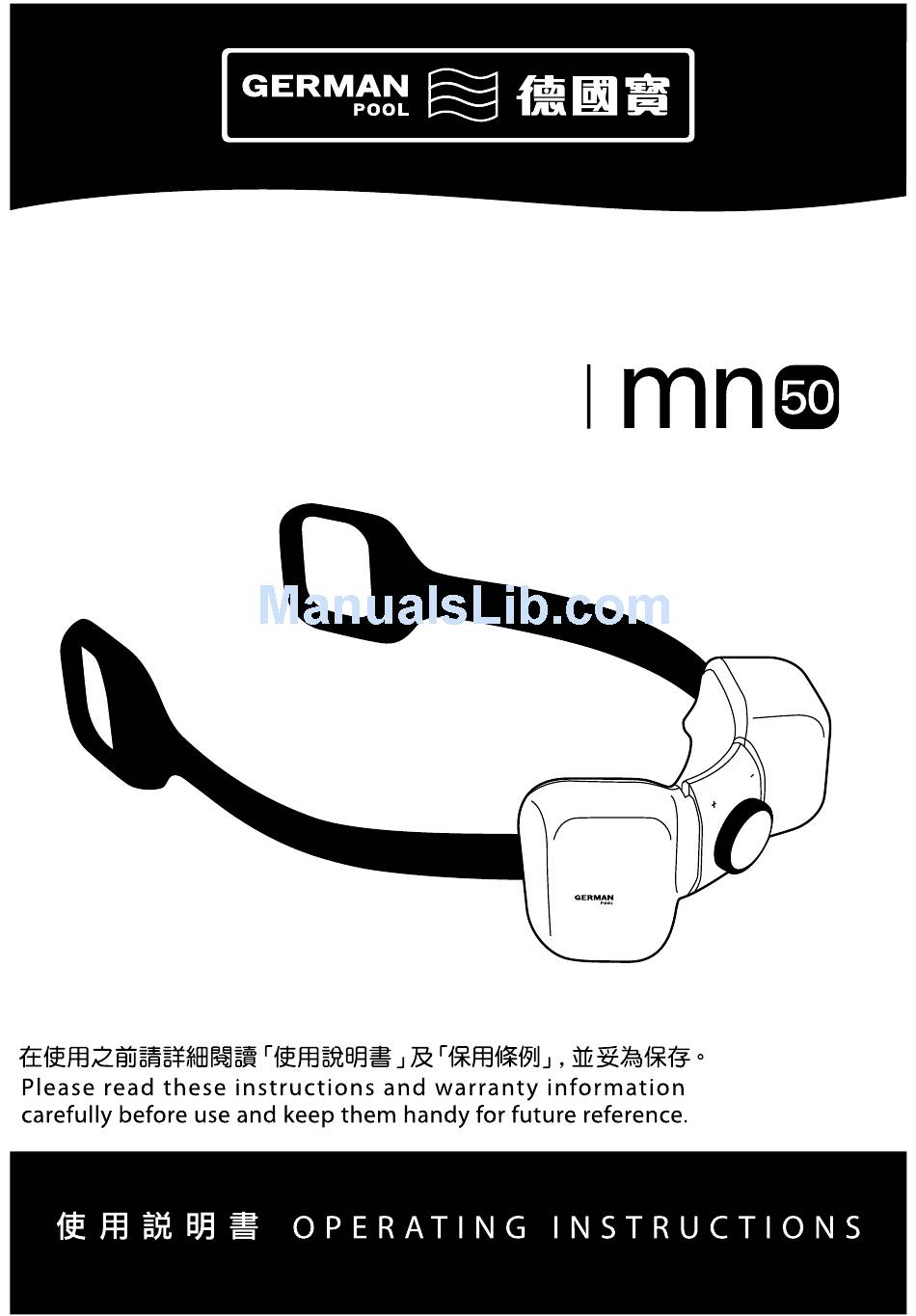

- Page 1 neck 頸 部 按 摩 器 massager P. 1...
-
Page 2: Table Of Contents
目錄 注意事項 盒內部件 產品結構 操作說明 維修與保養 常見故障及處理 P.14 技術規格 P.15 保用條款 P. 2... -
Page 3: 注意事項
注意事項 重要說明 為安全起見，初次使用產品前請先細閱本說明書，並保存說明書，以便日後作參 考用。本產品只供家居使用。請必須依照本說明書內的指示操作。 1. 請勿在駕駛時使用頸部按摩器。 2. 請勿在高溫、潮濕處使用按摩器。 3. 使用頸部按摩器前，長髮者要先將頭髮束高。 4. 請將按摩器戴在頸部再開機。 5. 請使用原裝配置的充電器，並注意用電安全。 6. 如頸部有紅腫炎症、瘀血等不適症狀，或接受過頸部手術者，請勿使用。 7. 如患高血壓或精神疾病，請勿使用本產品。 8. 本按摩器為個人護理產品，不能取代醫護專業人員所提供的意見及治療， 如有疑問或需要，請直接咨詢醫護專業人員。 9. 本按摩器設計為家用電子保健產品，不適用於診斷、治療和其他商業用途。 10. 如需清潔，應使用浸過中性清潔劑的消毒棉花擦拭。禁止用水清洗產品。 P. 3... -
Page 4: 盒內部件
盒內部件 本按摩器包括主機、充電器及使用說明書。 主機 充電器 使用說明書 保護魔術貼 P. 4... -
Page 5: 產品結構
產品結構 主機 力度減弱鍵 力度加強鍵 開/關鍵 弧度調節旋鈕 模式選擇鍵 電源充電插口 P. 5... -
Page 6: 操作說明
操作說明 充電 1. 將主機下端的電源充電插口塞子打開。 2. 將充電器的DC插頭插入產品DC電源充電插口。 3. 充電過程中LED指示燈為紅/綠色交替閃爍，充電完成後LED指示燈 顏色會轉為綠色。 註：主機採用高性能環保充電式鋰電池供電。 佩戴 1. 雙手握住手柄，將主機按摩觸頭放在頸椎位置，轉弧度調節旋鈕， 以調節到適合自己頸圍大小的舒適位置。 2. 雙手拉住手柄，調整按摩觸頭貼合的力度。 運作 開機 - 短按 鍵——LED指示燈為紅色，產品開始運作。 (開機預設運作模式：舒適力度+指叩按摩+定時20分鐘) 如需切換按摩力度、按摩程式請手動操作相關功能鍵。 關機 - 短按 鍵—LED燈熄滅，產品停止運作。 (按摩定時時間結束，產品將自動關機) 手動操作 選擇模式： 短按 鍵 - 按摩模式依以下次序轉換： 拳叩按摩 > 拿捏按摩 > 推捏按摩 > 指叩按摩 選擇力度： 短按 鍵 - 按摩力度為：慢揉 > 舒適 > 大力 短按 鍵 - 按摩力度為：大力 > 舒適 > 慢揉 註：操作按鍵時會有“嗶”聲提示音。 P. 6... -
Page 7: 維修與保養
維修與保養 電源檢查 • 檢查供電電源，若電源電壓超出產品規定的範圍時不得接駁充電器使用。 保養 • 採取防潮、防鼠、防污染措施。 • 清潔應在關機的狀態下進行。 • 使用後應將產品放置於安全的場所，切勿在產品上擱置重物。 • 當出現故障時應請專業技術人員維修，不要隨意拆裝產品。 常見故障及處理 使用操作時如出現故障，請進行以下檢查。如果無法排除故障或本產品仍無法理想 操作，請切斷電源，直接聯繫德國寶維修中心要求維修服務。 請勿自行拆卸或嘗試維修 故障現象 原因分析 處理方法 無法開機。 主機鋰電池電量是否不足。 如果是，請即時給主機充電。 充電器是否連接正常。 請確保連接正確。 按摩力度太弱。 主機鋰電池電量是否不足。 如果是，及時充電。 P. 7... - Page 8 CONTENT NOTICE BEFORE USE INSIDE THE PACKAGE P.10 PRODUCT STRUCTURE P.11 OPERATING INSTRUCTIONS P.12 CARE & MAINTENANCE P.13 TROUBLESHOOTING P.13 TECHNICAL SPECIFICATIONS P.14 WARRANTY TERMS & CONDITIONS P.15 P. 8...
-
Page 9: Notice Before Use
NOTICE BEFORE USE IMPORTANT For safety purpose, you should read the instructions carefully before using the appliance for the first time. Save the instructions for future reference. The appliance is designed for domestic use and may only be operated in accordance with these instructions for use. 1. Do not use the neck massager while driving. 2. Do not use the massager at a place with high temperature or humidity. 3. Please tie your long hair up before using the neck massager. 4. Please wrap the massager around your neck before switching on. 5. Please use this provided power charger, and pay attention to the safe use of electricity. 6. Do not use this product if you have swellings, inflammation, bruises or any other unusual conditions in your neck. Do not use if you have undergone any neck surgery. 7. Do not use this product if you suffer from hypertension or mental illness. -
Page 10: Inside The Package
INSIDE THE PACKAGE This massager comes with a main unit, a power charger and operating instructions. Main Unit Power Charger Operating Instructions Protective Sticker P. 10... -
Page 11: Product Structure
PRODUCT STRUCTURE Main Unit Intensity Intensity On/Off Decrease Increase Radian Mode Power Adjustment Knob Selection Charging Jack P. 11... -
Page 12: Operating Instructions
OPERATING INSTRUCTIONS Charging 1. Open the plug of the power charging jack at the bottom of the main unit. 2. Plug the DC plug of the power charger into the DC power charging jack of the product. 3. When the product is charging, the LED indicator flashes red/green alternatively; when charging is completed, the LED indicator turns into green. Note: The main unit is powered by high-performance rechargeable green lithium battery. Putting on the Massager 1. Hold the handles with both hands, put the massage head of the main unit on the cervical vertebra, and turn the radian adjustment knob to adjust to the comfortable position for your neck size. 2. Pull the handles with both hands, and adjust the intensity of the massage head contact. Switching on/off Switching on Press the button - LED indicator turns into red, and the product starts operating. (Default: comfortable intensity + shiatsu massage + 20-minute timer) To switch the massage intensity or massage program, please operate the function keys manually. Switching off Press the button - LED indicator turns off, and the product stops working (When the massage time is up, the product will automatically switch off) Manual mode Select massage mode Press the button – the massage mode changes in sequence: fist percussion massage > kneading massage > pushing massage > shiatsu massage Select intensity Press the button to switch the massage intensity to slow kneading > comfortable > strong Press the button to switch the massage intensity to strong > comfortable > slow kneading Note: A beep sound would accompany every touch of a button. P. 12... -
Page 13: Care & Maintenance
CARE & MAINTENANCE Power Check • Check on the power supply: do not connect the power charger if voltage of the power supply is beyond the prescribed range. Maintenance • Take measures to prevent moisture, rats and pollution. • Switch off the device before cleaning. • Put the device in safe place after using. Do not put heavy objects on the device. • Contact qualified technician if there is any fault. Do not disassemble the device yourself. TROUBLESHOOTING If there is any problem when you use the device, please follow the instructions below to check. If the problem still exists or the device cannot work normally, please turn off the power supply and contact service center. Do not disassemble or repair the device yourself. Do not disassemble or repair the device yourself. Phenomenon Possible Cause Solution Power-on fail. Whether the lithium-battery of If yes, please charge the main the main unit is low. unit at once. Whether the power charger is Please ensure it is connected not connected properly. -
Page 14: Technical Specifications
技術規格 TECHNICAL SPECIFICATIONS MN50 型號 Model 4.5 V 電壓 Voltage 15 W 功率 Power (H) 92 mm x (W) 102 mm x (D) 223 mm 尺寸 Dimensions 0.85 kg 淨重 Net Weight 產品規格及設計如有變更，恕不另行通知。 Specifications are subject to change without prior notice. 中英文版本如有出入，一概以中文版為準。 If there is any inconsistency or ambiguity between the English version and the Chinese version, the Chinese version shall prevail. P. 14... -
Page 15: 保用條款
- serial number is modified, damaged or removed from the product. - 機身編號被擅自塗改、破壞或刪除。 4. German Pool will, in its discretion, repair or replace any defective part. 4. 總代理有權選擇維修或更換配件或其損壞部份。 5. This warranty will be void if there is any transfer of 5. - Page 16 © 版權所有。未獲德國寶授權，不得翻印、複製或使用本說明書作任何商業用途，違者必究。 © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. w w w . g e r m a n p o o l . c o m...
