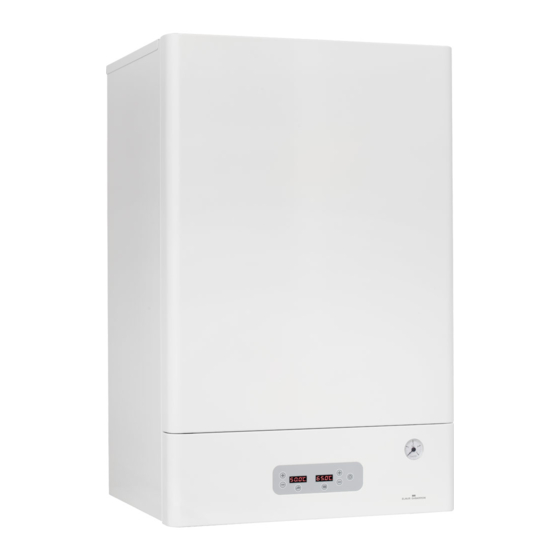

INSTALLATION INSTRUCTIONS AND USER GUIDE

MATTIRA
DIGITAL MODULATING ELECTRIC BOILERS
FOR CENTRAL HEATING AND DOMESTIC HOT WATER
MAC15
Please read these instructions before installing or using this appliance for the first time.
These instructions must be followed for the safe installation of the boiler.
Any problem, fault or damage caused by the non-observance of these instructions will not be covered under the
manufacturer's warranty.
This manual should be retained with the appliance by the user for future reference
.

1

Advertisement

Table of Contents
loading

Related Manuals for Gabarron MATTIRA MAC15

Summary of Contents for Gabarron MATTIRA MAC15

  • Page 1 INSTALLATION INSTRUCTIONS AND USER GUIDE   MATTIRA DIGITAL MODULATING ELECTRIC BOILERS FOR CENTRAL HEATING AND DOMESTIC HOT WATER MAC15 Please read these instructions before installing or using this appliance for the first time. These instructions must be followed for the safe installation of the boiler. Any problem, fault or damage caused by the non-observance of these instructions will not be covered under the manufacturer’s warranty.

  • Page 2: Table Of Contents

    INDEX 1 IMPORTANT 8 MAIN COMPONENTS LIST 2 SAFETY 9 MAINTENANCE & CARE 10 ENVIRONMENTAL INFORMATION 3 INTRODUCTION 3.1 DESIGN & OPERATION 3.2 PRINCIPLE COMPONENTS 11 TECHNICAL DATA 3.3 KEY TO COMPONENTS 3.4 SAFETY DEVICES 12 DECLARATION OF CONFORMITY 4 INSTALLATION 13 PRODUCT FICHE 4.1 GENERAL REQUIREMENTS 4.2 UNPACKING &...

  • Page 3: Important

    This indication shows the 3.1 DESIGN & OPERATION possibility of causing injury or damage to properties only. The Gabarron MATTIRA COMBI boilers are electrically heated combi boilers providing wet central Symbol for useful information. heating through a standard radiator system (or...

  • Page 4: Principle Components

    All components for sealed system central heating are 1 DHW resistance. built-in. A suitable filling loop should be fitted 2 Drain valve. externally to comply with water supply 3 Temperature sensor location. regulations (not supplied). 4 Connection block. 5 Main contactor. Heating and hot water functions will operate 6 DHW 7 bar relief valve.

  • Page 5: Installation

    TRV's are fitted to every radiator. In order to ensure the successful Note - A bypass circuit incorporating an installation and operation of your Gabarron automatic bypass valve is recommended for all boiler, please consider the following points installations.

  • Page 6: Unpacking & Contents

    4.2 UNPACKING & CONTENTS - Wall bracket with template. - Boiler. - Documentation. - Bag with parts and fittings.           Dispose of the cardboard packaging at a cardboard recycling site. Observe national regulations. 4.3 LOCATION WARNING INSTALL UPRIGHT ON A WALL SUITABLE TO SUPPORT THE TOTAL WEIGHT OF THE BOILER WHEN FULL OF WATER –...

  • Page 7: Clearances

    4.5 CLEARANCES A: 75 mm B: 10 mm C: 200 mm The clearances around the boiler as shown above must be observed for correct operation. A minimum of 200mm clearance must be maintained underneath the boiler to allow replacement of the heating elements if required.

  • Page 8: Typical Installation Layout

    4.7 TYPICAL INSTALLATION LAYOUT Heating return Balanced cold water from Group combination valve to thermostatic Heating Flow mixing valve Blended hot water supplies Balanced cold to all outlets water from Group combination valve to relevant outlets Mains cold water pipe  ...

  • Page 9: A) Central Heating Connections Design & Requirements

    4.9 (a) CENTRAL HEATING CONNECTIONS, DESIGN & REQUIREMENTS This boiler is designed for fully pumped sealed systems only. Treatment of Water Circulating Systems All recirculatory water systems will be subject to corrosion unless an appropriate water treatment is applied. This means that the system efficiency will deteriorate as corrosion sludge accumulates within the system.

  • Page 10: B) Pump Duty

    Filling Loop A combi filling loop is required for filling of the heating system and replacing water lost during servicing or bleeding and should be installed close to the boiler. The loop should be as shown in the diagram and comply with current Water Supply Regulations.
  • Page 11 4.9 (c) DHW CONNECTIONS, DESIGN & REQUIREMENTS CAUTION: This boiler incorporates a 50 litre unvented hot water cylinder. Installation of this appliance must be carried out by a Competent Person and in accordance with the relevant regulations. In every installation it is mandatory for the Group combination valve to be installed on the mains cold water supply to the boiler.
  • Page 12 7. Check the water pressure downstream of the combination valve is 3 bar in static condition. 8. Check and if necessary, descale the heat exchanger in hard water areas ie. above 200ppm (mg/l). Note: The cylinder is factory fitted with a temperature & pressure relief valve that must not be used for any other purpose or removed.
  • Page 13 General Design Considerations The wall chosen for the boiler should be level and capable of supporting the weight of the unit when full of water as shown in Section 4. The discharge pipework for the safety valves must have a minimum fall of 1:200 from the unit to a safe discharge point.

  • Page 14: General Restrictions

    General Restrictions a. The highest hot or cold water draw off point should not exceed 10m above the Pressure Reducing Valve. b. An ascending spray type bidet or any other appliance with a Class 1 back-syphonage risk requiring a type A air gap should not be used.

  • Page 15: Discharge Pipework

    Discharge Pipework CAUTION: Safety Valve Connections The 7 bar pressure relief valve on the domestic hot water store may discharge boiling water and should be piped to a safe but visible drain point e.g. a gulley where any discharge will not cause damage or injury. Expansion 15 mm Relief Valve...
  • Page 16 The tundish should be vertical, located in the same space as the unvented hot water storage system and be fitted as close as possible and within 600mm of the safety device e.g. the temperature relief valve. The tundish must be positioned away from any electrical devices.
  • Page 17 Following installation this line strainer must be cleaned and replaced. This needs to be carried out on a regular basis as part of the annual maintenance/service check. Safety The immersion heaters are indirectly supplied power via the main boiler terminal block which must be earthed. The main power supply to the boiler must be isolated from the mains before the cover is removed on every occasion.
  • Page 18 NOTE: If this appliance is to be installed in other than a single domestic dwelling ie. in an apartment block or student flats etc., the hot and cold water system will need to be disinfected in accordance with BS_EB 806:4 2010 section 6.3 and the Water Regulations.

  • Page 19: Electrical Connections

    WARNING - If water is seen flowing through the tundish, this indicates a fault condition which needs action. If the discharge is hot and continuous, turn the boiler and/or the immersion heaters off, but do not turn off the cold water to the appliance until the discharge is cold.
  • Page 20 Electrical Supply Sizing The following table shows the specification for a boiler installed on single phase supply. Rated output of boiler 10kW 11kW 12kW 13kW 15kW Supply current 17.4A 21.7A 26.1A 30.4A 34.8A 39.1A 43.5A 47.8A 52.2A 56.5A 65.2A MCB / RCD rating Minimum cable size 2.5mm 10mm...

  • Page 21: Installation Parameters

    5 COMISSIONING 5.1 INSTALLATION PARAMETERS These parameters must be adjusted by the installer to match the requirements of the installation. To access to installation parameters menu: Ensure the rear mounted power on/off switch is turned on. ‐ Ensure the main display front panel is turned off by using the button.

  • Page 22: Limiting Boiler Maximum Output

    5.2 LIMITING BOILER MAXIMUM OUTPUT The boiler is supplied for operation on maximum heat output of 15kW. The output can be rated below this maximum to match the heat load required. This rating is done by means of P03 parameter. See above”5.1 INSTALLATION PARAMETERS”...

  • Page 23: Heating System Flushing

    * The standard configuration of the boiler only allows a maximum of 12kW when connected SINGLE-PHASE 230V~. 5.3 HEATING SYSTEM FLUSHING CAUTION: Flush the heating installation thoroughly prior to installation. The heating system should be flushed in accordance with BS7593 & BS5449 which will remove any debris or contaminants detrimental to the operation and life of the boiler.

  • Page 24: Operating The Boiler

    6 OPERATING THE BOILER 6.1 INITIAL SWITCHING ON CAUTION: THE MAXIMUM HEAT OUTPUT MUST BE ADJUSTED BEFORE SWITCHING ON. THE BOILER SHOULD NEVER BE SWITCHED ON WITH THE HEATING SYSTEM OR DHW TANK EMPTY. DAMAGE COULD OCCUR. When the boiler is first connected it will perform a general self-check and if a fault is detected it will be indicated on the display.

  • Page 25: Domestic Hot Water Operation

    Push the button to start the boiler up. The same button will turn the boiler off when pushed again. If the heating or DHW function are not selected the relevant screen will not display a value but just a red dot. 6.3 DOMESTIC HOT WATER OPERATION To select the DHW function push the press the button.

  • Page 26: Anti-Freeze Mode

    The heating setting can be varied between 8ºC and 85°C. The symbol H appears after the 85 value or before the 8 value. If this value is selected, the heating will function in anti-freeze mode. If the setting is higher than the actual temperature of the heating water and the DHW is not connected, the heating will connect and a small red indicator of the consumption of heating resistances will light up.

  • Page 27: Heating Modulation Feature

    6.7 HEATING MODULATION FEATURE The advanced control board on the boiler will automatically modulate the heating output to the demand required to save energy. This function works by the boiler ‘learning’ and anticipating the time taken to reach the temperature level demanded by the external thermostatic control.

  • Page 28: Blocking The Controls

    You can temporarily override the automatically calculated set point. If, for example, you want to use the boiler to the maximum for a few hours even when automatic control mode, you would proceed as follows: When pressing the button, the display will alternatively show the calculated set point and the indication .

  • Page 29: Trouble Shooting

    7 TROUBLESHOOTING 7.1 POSSIBLE FAULTS & SOLUTIONS Problem Possible cause Solution No power to boiler. Check incoming power supply. No power. Check boiler control switch is on. Boiler will not start (See Section 6.1.) Heating overheat. Switch tripped. Locate switch and reset. (See Section 7.2) DHW Overheat switch tripped.

  • Page 30: Overheat Lock-Out & Re-Setting

    7.2 OVERHEAT LOCK-OUT & RE-SETTING Central heating overheat. If the boiler detects a overheat condition of 100ºC (80ºC if adapted floor heating ) in the central heating circuit a safety thermal limit switch will operate and switch the boiler off disabling all functions including DHW production. The cause of the overheat should be investigated.

  • Page 31: Checking Rated Heat Output

    7.3 HEATING SYSTEM FLOW SWITCH – E3 ERROR & SYSTEM BY-PASS REQUIREMENTS If the error E3 appears on the display, the flow switch has detected insufficient water flow in the heating circuit and heat production is disabled to protect the boiler from overheating. The possible causes for this condition are: - Insufficient water pressure in the heating system requiring re-filling to 1.5bar - Pump not circulating or seized.

  • Page 32: Maintenance & Care

    9 MAINTENANCE & CARE Gabarron MATTIRA electric combi boilers will require an annual maintenance check to ensure preservation of the manufacturer's warranty and a prolonged and trouble-free life. A full check list and service log is located at the back of this manual which, should be adhered to.

  • Page 33: Technical Data

    11 TECHNICAL DATA MAC15 Frequency Connection 3x400V+N~  Output limited to 15kW; Maximum intensity 21.7 Output limited to 13kW; Maximum intensity 21.7 Output limited to 12kW; Maximum intensity 21.7 Output limited to 11kW; Maximum intensity 21.7 Output limited to 10kW; Maximum intensity 21.7 Output limited to 9kW;...

  • Page 34: Declaration Of Conformity

    DECLARACION DE CONFORMIDAD De acuerdo con la norma ISO / IEC 17050-1 DECLARATION OF CONFORMITY According to the Standard ISO / IEC 17050-1 Nº 6610000 and 6620000 Nombre del fabricante : ELNUR, S.A. Manufacturer’s name : Dirección del fabricante : ELNUR, S.A.

  • Page 35: Product Fiche

    13 PRODUCT FICHE MODELO(S): GABARRON MATTIRA MAC15 (wall mounted electric combination boiler) CONDENSING BOILER: NO LOW TEMP. BOILER: NO B1 BOILER: NO CO-GENERATION SPACE HEATER: NO COMBINATION HEATER: YES Information Symbol Value Unit Space heating: Rated heat output Prated Power output Seasonal space heating energy efficiency ηs...

  • Page 36: Wiring Diagrams

    14 WIRING DIAGRAMS HEATING CIRCULATING PUMP 230V~ BOMBA FUSE CALEFACCION T.EXT T.AUX S.ACS FLUX S.CAL IDA RET. EXT. TEMP. probe (optional) heating flow ambient detector HEATING flow temp. probe thermostat HEATING return temp. probe DHW temp. probe     36   ...
  • Page 37 models MAC18 have the six heating elements of 3000W 3000W 2000W 2000W 3000W 3000W 2000W 2000W 3000W 3000W 2000W 2000W 3000W HEATING HEATING CIRCULATING RESISTANCE RESISTANCE PUMP heating thermal limiter thermal limiter 230V~ BOMBA main switch FUSE heating flow ambient detector HEATING flow temp.

  • Page 38: Warranty

    15 WARRANTY Your new Gabarron Mattira electric combi boiler from Elnur is warranted against faulty materials and manufacture defects. The internal unvented hot water cylinder is warranted against faulty materials and manufacture defects for a period of 5 years from the date of purchase. The remainder of components is warranted against faulty materials and manufacture defects for a period of 2 years from the date of purchase.

  • Page 39: Installation Commisioning Checklist

    Failure to install and commission this equipment to the manufacturer’s instructions may invalidate the warranty but does not affect statutory rights. Customer name: Telephone number: Address: Boiler Make and Model: Gabarron Mattira MAC 15 electric combi boiler Boiler Serial Number Commissioned by (PRINT NAME) Registered Operative ID Number Company name:...

  • Page 40: Central Heating System

      16.2 CENTRAL HEATING SYSTEM This Commissioning Checklist is to be completed in full by the competent person who commissioned the heating system as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference.

  • Page 41: Electrical Installation

      16.3 ELECTRICAL INSTALLATION This Commissioning Checklist is to be completed in full by the competent person who commissioned the heating system as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference.

  • Page 42: Maintenance Checklist

    17 MAINTENANCE CHECKLIST This Maintenance Checklist is to be verified in full by the competent person undertaking the annual service of the boiler. Failure to maintain this equipment to the manufacturer’s instructions may invalidate the warranty but does not affect statutory rights.

  • Page 43: Service Record

    18 SERVICE RECORD It is recommended that your Gabarron Mattira boiler is serviced regularly and that the appropriate service record is completed. Before completing the appropriate service record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
  • Page 44 The symbol on the product or in its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
