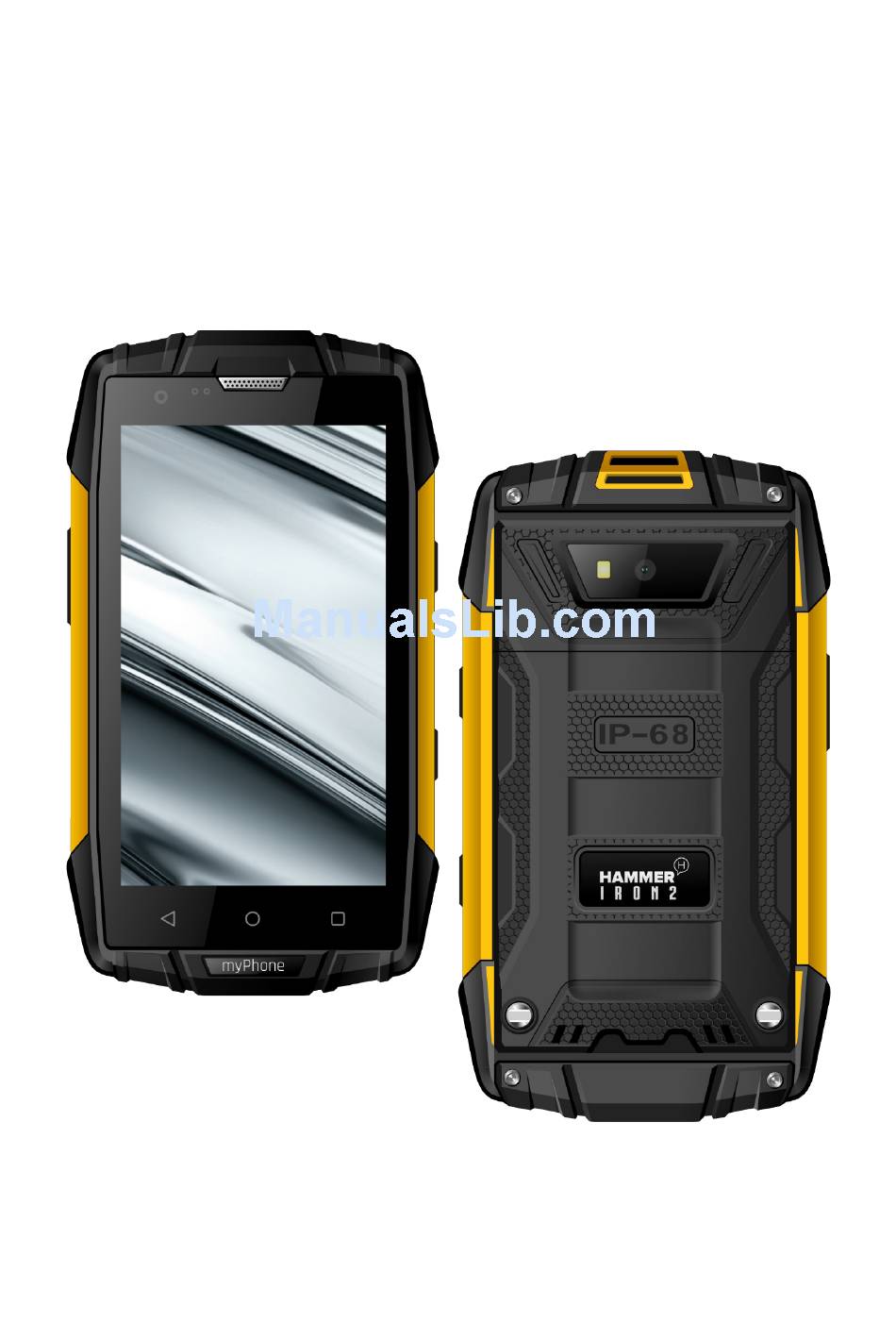

OPERATING INSTRUCTIONS
myPhone Hammer Iron 2
(smartphone)
Lot number: 201607

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hammer Iron 2 and is the answer not in the manual?

Questions and answers

Related Manuals for myPhone Hammer Iron 2

Summary of Contents for myPhone Hammer Iron 2

  • Page 1 OPERATING INSTRUCTIONS myPhone Hammer Iron 2 (smartphone) Lot number: 201607...

  • Page 2: Road Safety

    © 2016 myPhone. All rights reserved. Hammer Iron 2 Thank you for choosing the device myPhone Hammer Iron 2. Please read the Manual carefully. SAFETY Read these simple guidelines. Not following them may be dangerous or illegal DO NOT RISK...

  • Page 3: Qualified Service

    © 2016 myPhone. All rights reserved. Hammer Iron 2 other equipment located therein. The telephone may interfere with operation of the medical equipment in hospitals and health protection entities. Abide by any kinds of bans, regulations and warnings transferred by the medical staff.

  • Page 4: Alarm Calls

    © 2016 myPhone. All rights reserved. Hammer Iron 2 Excessive charging the battery can cause damage. Therefore, a single battery charge should not last longer than three days. In case of a damage the charger should not be repaired but replaced with a new one.
  • Page 5 © 2016 myPhone. All rights reserved. Hammer Iron 2 WATERPROOF The device contains IP68 certificate. According to which, the device is dustproof and waterproof when all of the rubber seals are intact and properly put in place, as well as when the cover has been tightened properly with screws.

  • Page 6: Using The Manual

    © 2016 myPhone. All rights reserved. Hammer Iron 2 USING THE MANUAL Before you use the device refer to information about safety precautions and instructions for using the phone. The descriptions in this manual are based on the default settings of the phone.
  • Page 7 © 2016 myPhone. All rights reserved. Hammer Iron 2 outdoors. PHYSICALLY OR MENTALLY DIS- ABLED PERSONS The device should not be operated by persons (including children) of limited physical or mental predispositions, as well as by persons of no earlier experience in operation of electronic equipment.

  • Page 8: Customer Service

    © 2016 myPhone. All rights reserved. Hammer Iron 2 Manufactured by: myPhone Sp. z o.o. ul. Nowogrodzka 31 00-511 Warszawa Polska Customer service: myPhone Sp. z o.o. ul. Krakowska 119 50-428 Wrocław Polska phone: (+48 71) 71 77 400 E-mail: pomoc@myphone.pl website: www.myphone.pl...

  • Page 9: Hammer Iron

    There is a sticker containing the IMEI and serial number on the packaging of myPhone Hammer Iron 2 set. We advise you to keep the packaging for a case of a possible complaint. Therefore it is recommended to keep...

  • Page 10: Audio Connection

    © 2016 myPhone. All rights reserved. Hammer Iron 2 MyPhone Hammer Iron 2 overwiev LP Icon Description Function Volume Increase button up / decrease down volume of the speaker, headphones, audio connection, ringtone volume...
  • Page 11 © 2016 myPhone. All rights reserved. Hammer Iron 2 or change the sound profile. Camera: press to activate the shutter software allows such a function). Other apps: press to control the volume of music or other sounds. Display LCD screen...

  • Page 12: Camera Lens

    © 2016 myPhone. All rights reserved. Hammer Iron 2 illuminate. Rear Camera lens 5 Camera Strong holder to Loop hole attach a lanyard Audio Headphone jack connector 3.5mm mini jack Short press: lock / unlock screen Approx 2 sec. press turn on /...
  • Page 13 © 2016 myPhone. All rights reserved. Hammer Iron 2 / return to the previous screen. Short press: go to the desktop screen Home Long press: turn Button on the list of open applications. Make sure that the microphone is not obstructed...

  • Page 14: Specifications

    © 2016 myPhone. All rights reserved. Hammer Iron 2 with special attention to the gasket. Multi-functional Micro USB micro connector socket Rear External speaker speaker Specifications Parameters Description Processor Quad Core Cortex- A7 1,3 GHz MT6580A/Mali-400 MP 500 MHz Rear camera...
  • Page 15 © 2016 myPhone. All rights reserved. Hammer Iron 2 Operating system Android™ 6.0 Marshmallow Dual SIM 2 x SIM Dustproof and IP68 waterproof Connectors microUSB, minijack 3,5 mm Communication Wi-Fi 802.11 b/g/n, Bluetooth, GPS z A-GPS 850/900/1800/190 0 MHz WCDMA (3G)

  • Page 16: First Steps

    © 2016 myPhone. All rights reserved. Hammer Iron 2 First steps Installation of the SIM card myPhone Hammer IRON 2 was made in Dual SIM technology, which allows the use of two mobile networks simultaneously. To correctly insert SIM cards you must turn off the phone.
  • Page 17 © 2016 myPhone. All rights reserved. Hammer Iron 2 with irreversible damages this machine or the corruption of your stored data. To properly insert a memory card, you must turn off the phone. Remove the cover by unscrewing two screws, pay special attention no to damage the machine.
  • Page 18 © 2016 myPhone. All rights reserved. Hammer Iron 2 Put the cover back, while tightening the screws pay special attention to the gasket. Turn off the phone and unplug the charger to remove the battery. When the battery is fully discharged, the indicator might display after a few moments.
  • Page 19 Connection with a computer To connect myPhone Hammer Iron 2 to a computer with the operating system Microsoft Windows 7/8/10 / Vista / XP use the USB cable included in the box as follows: 1.

  • Page 20: Indicator Icons

    © 2016 myPhone. All rights reserved. Hammer Iron 2 2. The other end of the cable put into the USB port on your computer. 3. When the device is connected, the appropriate notification will appear on your computer screen. 4. On your phone, swipe from the top edge of the bottom and click "USB...

  • Page 21: Icon Description

    © 2016 myPhone. All rights reserved. Hammer Iron 2 are as follows: Icon Description The battery charge Icon active connection to the Wi-Fi network New e-mail New SMS Icon Signal strength of the cellular network A missed call The ongoing call...

  • Page 22: Download Applications

    © 2016 myPhone. All rights reserved. Hammer Iron 2 Download applications You can greatly expand the capabilities of your device by installing additional applications. Please be aware that applications installed from questionable sources may put your phone at risk. It is recommended to use the service [Google Play] to install additional apps.
  • Page 23 © 2016 myPhone. All rights reserved. Hammer Iron 2 To run the application you have installed on your device press its icon located in the menu. To install applications downloaded from other sources, select [Application menu] [Settings] [Security]  ...
  • Page 24 © 2016 myPhone. All rights reserved. Hammer Iron 2 available Wi-Fi networks, the status of the connection between the device and your network is indicated by an icon depicting signal strength. Security password is presented with a padlock visible at the bottom right side of an icon.
  • Page 25 © 2016 myPhone. All rights reserved. Hammer Iron 2 device, melt the plastic components destroy rechargeable battery. • Do not attempt to disassemble the device. Unprofessional interference in the device may result in a serious damage or its destruction. • For cleaning, use only a dry cloth.
  • Page 26 © 2016 myPhone. All rights reserved. Hammer Iron 2 environments, extreme temperatures, open flames etc. myPhone Sp. z o.o. and no other vendor are not liable for damages caused breaking procedures, referrals and obligations contained in the manual or usual,...
  • Page 27 © 2016 myPhone. All rights reserved. Hammer Iron 2 transferred in any form or with use of any electronic or mechanical means, including creation photocopies, registering maintaining information storing retrieval systems. Trademarks: • Android, Google, Google Play, Google Play logo and other brands are the trademarks of Google Inc.

  • Page 28: Environmental Protection

    © 2016 myPhone. All rights reserved. Hammer Iron 2 UMTS UMTS BAND 1800 BAND I VIII HEAD 0,237 0,161 0,250 0,395 BODY 0,881 0,951 0,957 0,808 Environmental protection Notice: The device is marked with symbol crossed-bin, accordance with European Directive...
  • Page 29 © 2016 myPhone. All rights reserved. Hammer Iron 2 protect natural resources. Proper recycling waste electrical electronic equipment has a positive impact on human health and the environment. In order to obtain information about where and how to safely dispose of...
  • Page 30 © 2016 myPhone. All rights reserved. Hammer Iron 2 rechargeable batteries together with communal waste. The rechargeable battery(-ies) users must make use of the available reception network for the components, that enables their return, recycling and utilization. In the European Union, the...
  • Page 31 © 2016 myPhone. All rights reserved. Hammer Iron 2 Directive 1999/5/EC. Information about this and our other products: http://www.myphone.pl/en/...
