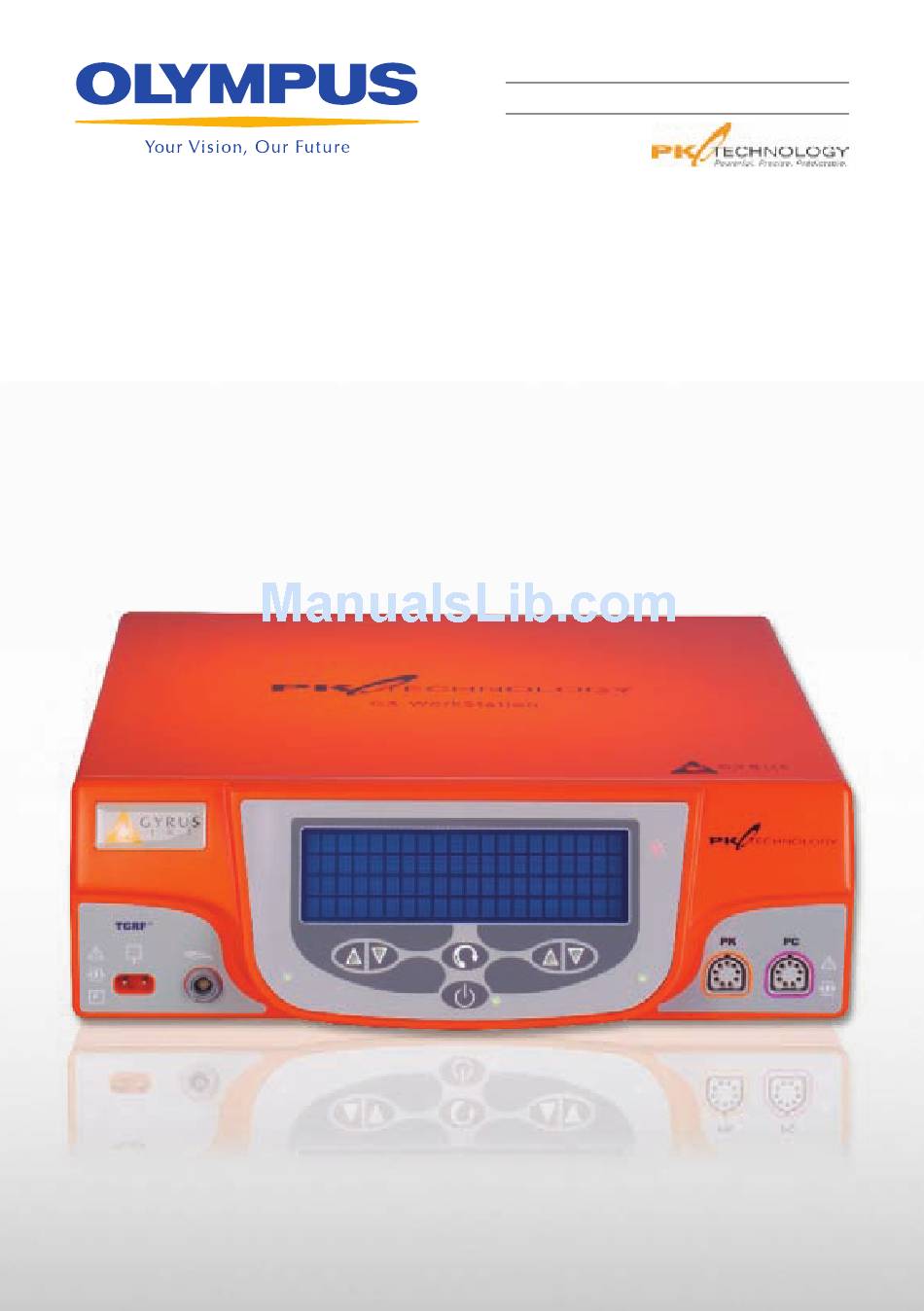

- Page 1 G3 WorkStation Instructions Guide for G3 WorkStation Procedure Setup...

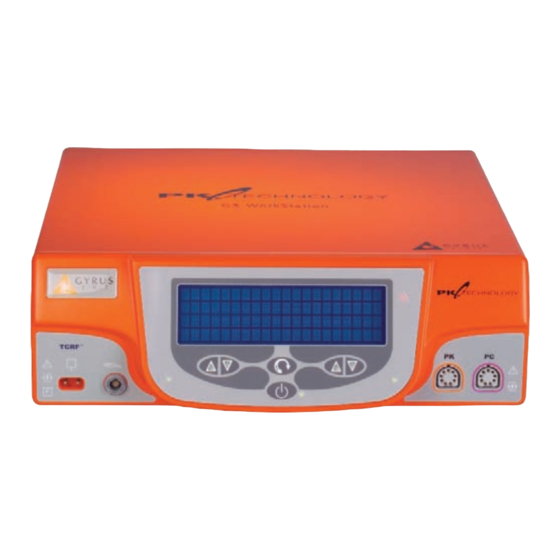

- Page 2 G3 WORKSTATION G3 WorkStation The G3 WorkStation provides precise delivery and control of PK Technology for head and neck surgical procedures. In addition to PlasmaCision, the G3 supports TCRFTM (Temperature- Controlled Radio Frequency) for the Somnoplasty procedures. As a result, one technology platform can be used for a growing variety of surgical procedures, providing enhanced value and versatility, now and in the future.
- Page 3 ProCEDUrE SEtUP GUiDE • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Using temperature Controlled radio Frequency (tCrF) •...
- Page 4 G3 WORKSTATION Begin treatment: Press and release the BLUE foot pedal OR press the MODE button (located in the center of the controller with a round arrow) ONCE (This will set the system to RF SENSING OFF). Press and release the BLUE foot pedal OR press the Mode button a second time.
- Page 5 Settings using tCrF for palate reduction: • Temperature: 85ºC • Joules: 600 to 750 for midline lesion • Joules: 300 to 350 for lateral lesions • Impedance: 110 - 160 OHMS IMPORTANT NOTE: Rapid Lesion is not recommended for soft palate. Settings using tCrF for base of tongue: •...
- Page 6 BLUE pedal to increase the COAG component in 5% increments. Press the BLACK mode foot pedal to select the new PlasmaBlend ratio. Alternatively, use the “up/down” PlasmaBlend buttons on the left side of G3 WorkStation to adjust the CUT/COAG to desired settings.
-
Page 7: Ordering Information
If the WorkStation gives a “clean tip” message; clean the instrument tip and reset the WorkStation by pressing the BLACK mode foot pedal. ordering information Cat. No. Description EG70353001 G3 WorkStation EG70353002 Footswitch for G3 WorkStation EG720100901 Powercord USA EG70353003 Tonsil PlasmaKnife (4-pack) EG70353005 Dissector PlasmaKnife (4-pack) EG70353006... - Page 8 G3 WORKSTATION Specifications, design and accessories are subject to change without any notice or obligation on the part of the manufacturer. Postbox 10 49 08 20034 Hamburg, Germany www.olympus-europa.com...
