V100 Positioner

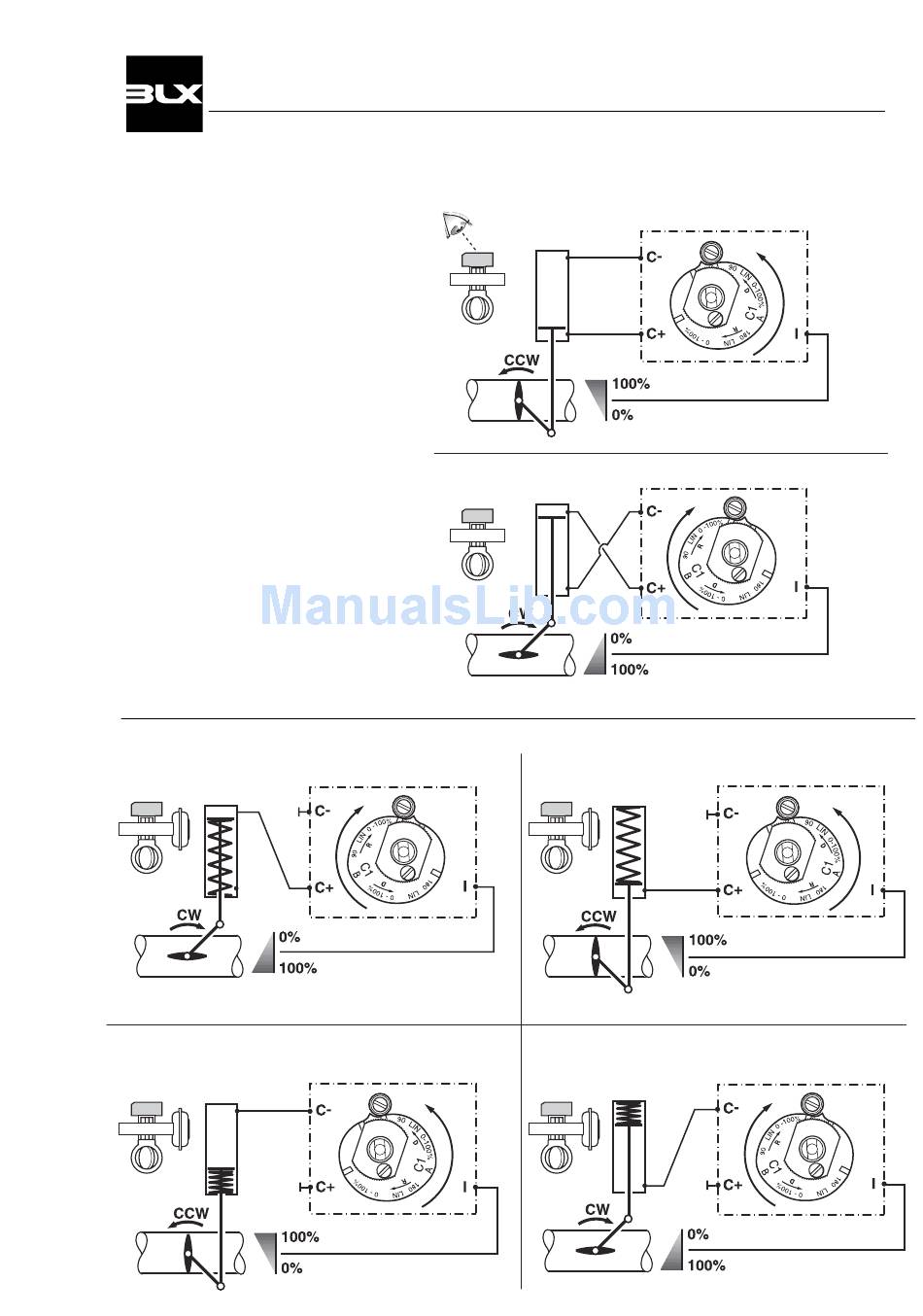

2.3 Installation instructions for rotary actuators

2.3.1 Double acting

2.3.2 Single acting

Spring opens
C
Spring opens
E
A
B
Reverse (CW)
Signal closes
Direct (CCW)
Signal opens
Direct (CCW)
Signal opens
Reverse (CW)
Signal closes
Spring closes
D
Spring closes
F
Direct (CCW)
Signal opens
Reverse (CW)
Signal closes
