V100 Positioner

3. MAINTENANCE

3.1 Front cover and Indicator

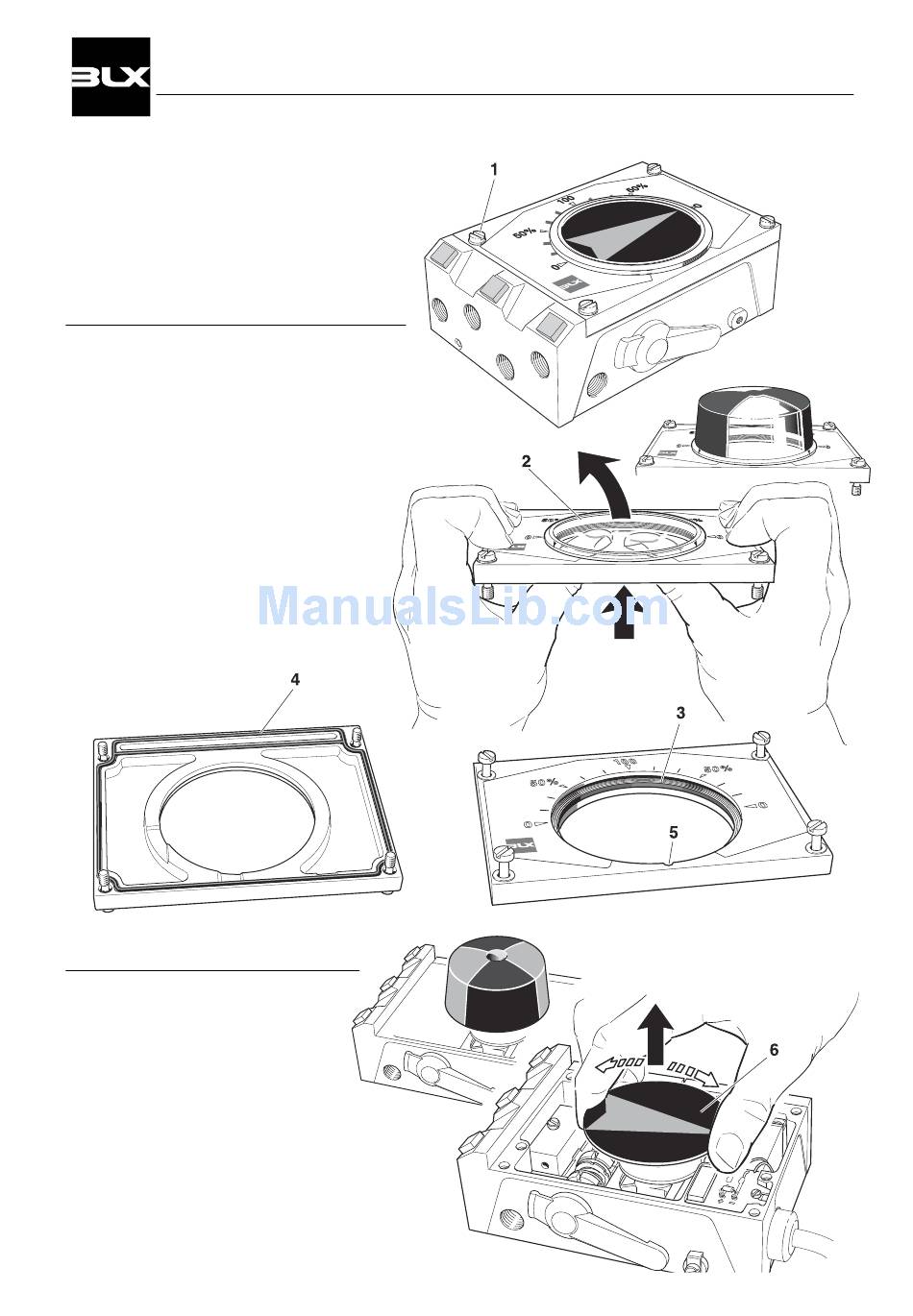

Removing the front cover
Remove the four screws(1) and
the front cover.
Changing the sealing in the front cover
Remove the indicator cover(2) by pressing
from the backside.(see sketch)
Remove the rubber gasket(3) and replace
with a new gasket.
Remove the O-ring(4) on the backside
of the front cover and replace with a
new O-ring.
Mount the indicator cover by installing
its tap into the groove(5) of the front
cover and lock it in place.
Removing the indicator
Pull the indicator(6) straight up.
Important Note!
Note the indicator's position so it
can be remounted in the same position.
Mounting the indicator
Install the indicator in place over the drive shaft
and press it straight down.
Turn the indicator to the proper display position.
12
