V100 Positioner

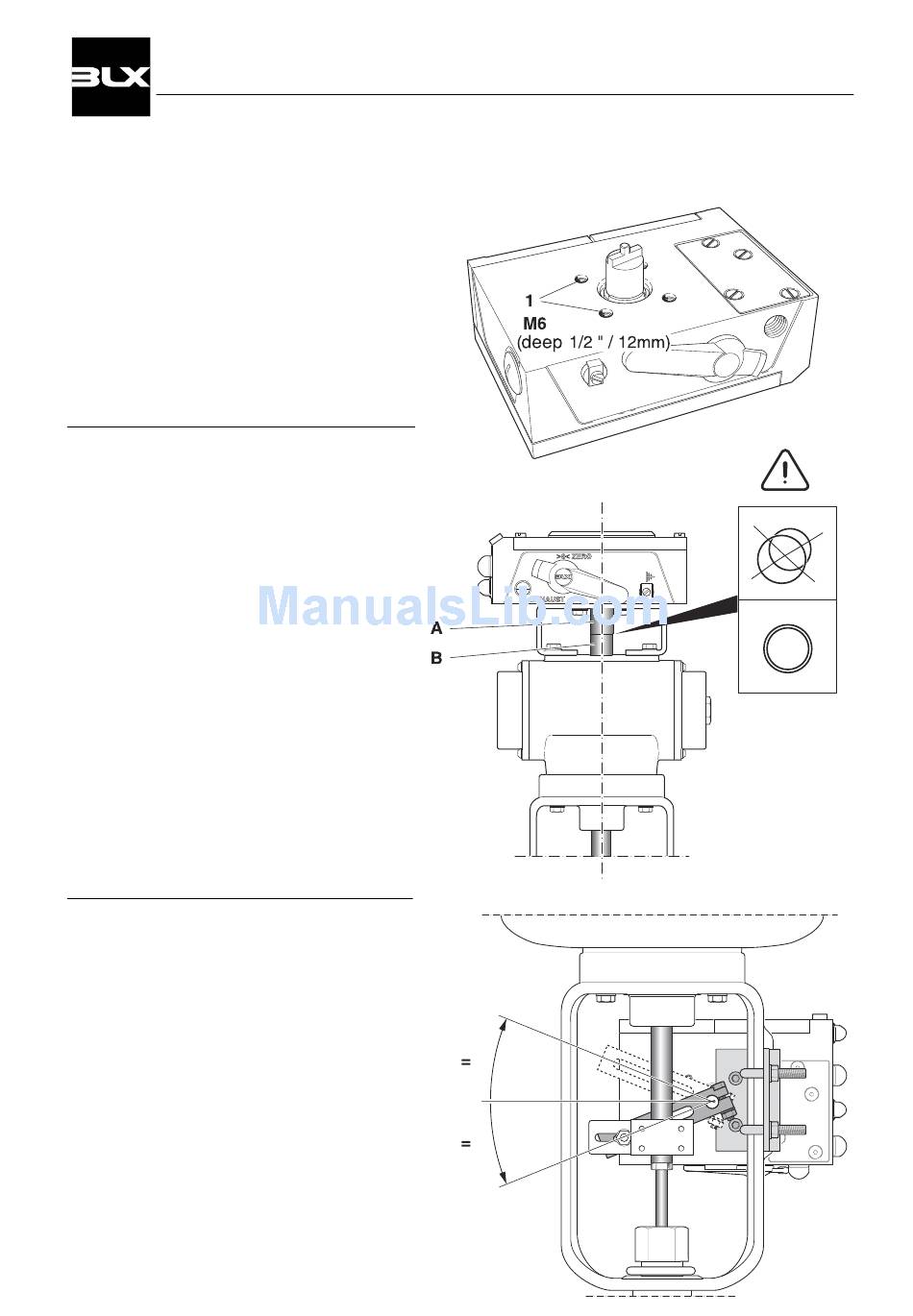

2.2 General mounting instructions.

The V100 has the ISO F05 hole pattern(1)
for mounting kits.
2.2.1 Rotary actuator
The BLX V100 has a very stable and pro-
perly sized drive shaft bearing.
However, the positioner drive(A) should
be aligned properly to the rotary actuator
spindle(B). A relatively small error com-
bined with a rigid coupling can create
very
powerful radial forces, which can in turn
overload and in short time wear out even
the very best drive shaft bearing.
2.2.2 Linear actuator
When mounting on linear actuators, the
positioner should be attached in such a
way that its drive is in the center of the
actuator's stroke. Proper installation and
alignment will minimize linearity error.
6
