Response 75 – Issue 2 – Edition 1 – 7/10/03
User Guide
BT RESPONSE 75
This product is intended for connection to
analogue public switched telephone networks
and private switchboards in the United Kingdom.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the response 75 and is the answer not in the manual?

Questions and answers

Summary of Contents for BT response 75

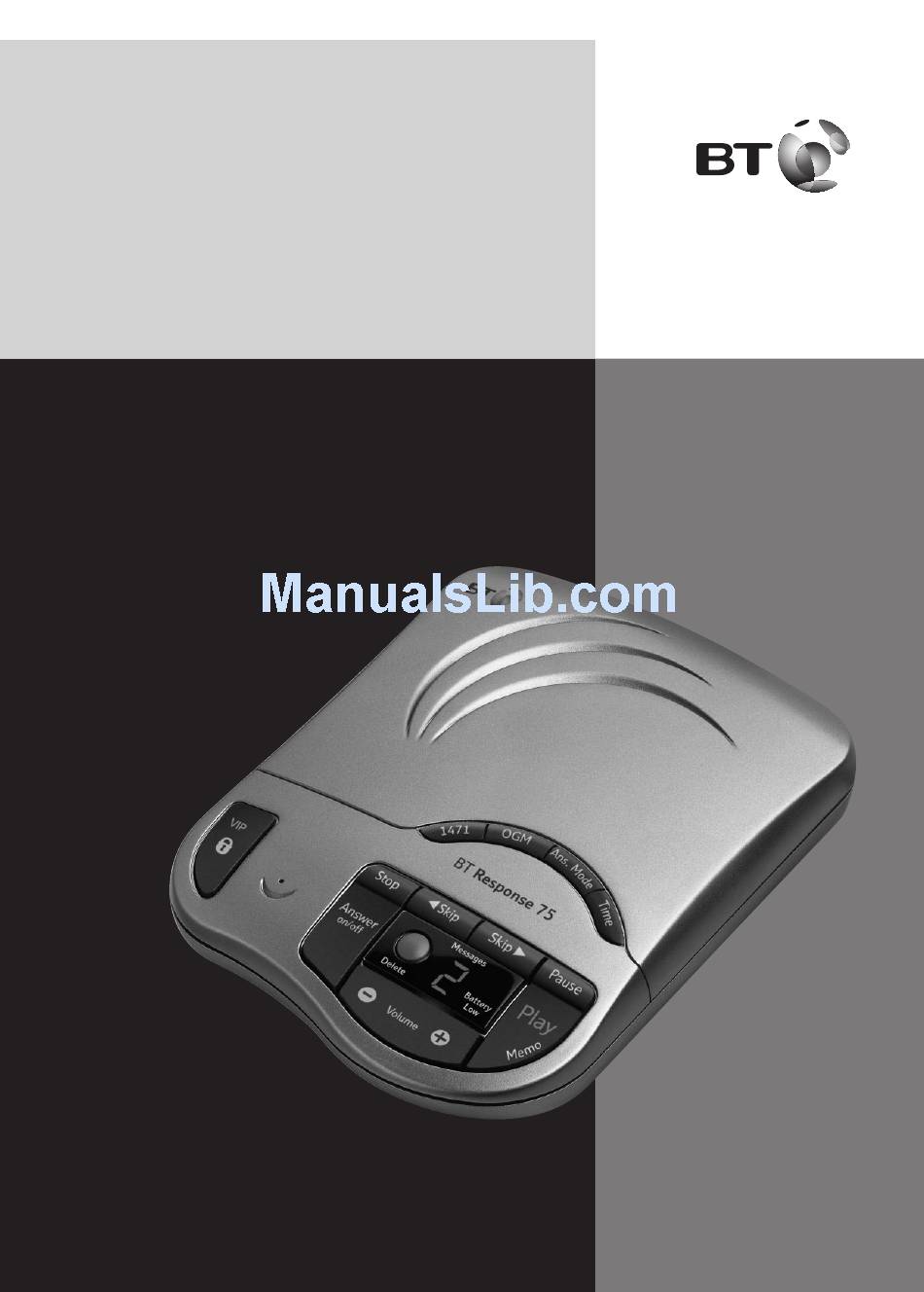

  • Page 1 Response 75 – Issue 2 – Edition 1 – 7/10/03 User Guide BT RESPONSE 75 This product is intended for connection to analogue public switched telephone networks and private switchboards in the United Kingdom.
  • Page 2 Response 75 – Issue 2 – Edition 1 – 7/10/03 Please open this page for an ‘at a glance’ guide to your BT Response 75...
  • Page 3: At A Glance

    Response 75 – Issue 2 – Edition 1 – 7/10/03 At a glance 1471 on-off Ans. Mode Use to record and To set the 1471 check your personal Lets you change Skip feature to on or off. outgoing message. answer mode to...
  • Page 4: Key Features

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Key features 36 minutes recording capacity Time saver Offers the benefits of digital recording. You can set your BT Response 75 so that it will answer after 2 rings if messages have been left.
  • Page 5: Table Of Contents

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 In this guide At a glance Key features Introduction Setting up Safety instructions Using your BT Response 75 Answering machine controls Outgoing message Receiving messages Audible message alert Call screening...
  • Page 6: Introduction

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Introduction Your BT Response 75 has been designed for ease of use and made to the high standards set by BT You can expect your BT Response 75 to give For your records you many years of trouble-free service.
  • Page 7: Setting Up

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Setting up Follow these steps to set up your BT Response 75 ready for use Plan the location of your Plug the mains power BT Response 75 cord into the back of the...
  • Page 8 BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Plug your BT Response 75 Insert the back-up battery into the telephone socket Before inserting the back-up battery you must ensure that your unit is connected to the mains power.
  • Page 9 BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Wall mounting your BT Response 75 Use the template on page 27 to drill holes in the wall. Leave a small gap between the screw heads and the wall.
  • Page 10: Safety Instructions

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Safety instructions General Environmental • Simply clean your BT Response 75 • Do not expose to direct sunlight. with a damp (not wet) cloth, or an • The product may heat up. This antistatic wipe.
  • Page 11: Using Your Bt Response 75

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Using your BT Response 75 To set the answering machine Answering machine controls to Answer Only mode: Press the Ans. Mode button. Ans. mode To set the answering machine You will hear “Answer Only on”...
  • Page 12 BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Press and hold down the Please note Time Time button, your BT Response 75 announces the If you alter the volume during playback current hour setting. of a message, the beep does not sound but the volume will change accordingly.
  • Page 13: Outgoing Message

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Your 2 outgoing messages will Outgoing message be stored separately and the outgoing message played will The outgoing message is the message depend on the mode you have a caller hears when your BT Response selected.
  • Page 14 BT Response 75 – Issue 2 – Edition 1 – 7/10/03 To check your outgoing Call counter message The counter will display the Select the Answer mode in which number of messages that have you want to check your OGM: been recorded in the memory.
  • Page 15: Receiving Messages

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Your BT Response 75 To receive incoming messages announces the current ring delay and the message counter displays the selected answer Your BT Response 75 will delay setting. automatically record an...
  • Page 16: Audible Message Alert

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Audible message alert Please note To play back, delete or skip forward or Press and hold Skip to toggle between on and off. backward through memos, follow the instructions for playing back messages You can stop your BT Response 75 (see below).
  • Page 17: Call Screening

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Make sure that the volume is set to an To delete individual messages audible level and that the VIP feature is off. During message playback Allow the incoming call to be answered press the Delete button.
  • Page 18: Feature

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 When you reach your desired To check the VIP code and code number, release the VIP setting button. Your BT Response 75 will announce the new VIP code. Press and release the VIP button.
  • Page 19 BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Please note The free 1471 service announces the day and time that the call was left. Your BT Response 75 will automatically record this announcement immediately after receiving a call. Consequently the day of the call will be recorded as ‘today’.
  • Page 20: Remote Access

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Remote access You can switch on and operate your answering machine from another TouchTone phone to play back your messages and memos Please enter again”. If you Your security code...
  • Page 21: Menu For Remote Access

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 To skip forwards to the next Please note message If the memory is full, you will have to delete some messages before your BT During message playback: Response 75 will switch to ‘answer on’...
  • Page 22 BT Response 75 – Issue 2 – Edition 1 – 7/10/03 To change your outgoing To pause a message message During message playback: When you hear “End of Press the 2 button. You will KEYPAD messages” or “You have no hear a beep every 10 seconds.
  • Page 23: Help

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Help If you have any problems using your BT Response 75, this section gives you the most common solutions BT Response 75’s battery low Call counter does not light up...
  • Page 24 BT Response 75 – Issue 2 – Edition 1 – 7/10/03 No OGM You cannot access remotely You may have accidentally pressed the Make sure that the telephone you are OGM button for too long when using to access your BT Response 75...
  • Page 25: Guide To The Display

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Guide to the display BT Response 75 Message counter display shows Power off –– –– Power up or reset (about 8 seconds) –– (flashing) Power on – answer-off mode ––...
  • Page 26: General Information

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 General information Within the 12 month guarantee period: Guarantee If you experience difficulty using the product, prior to returning your Your BT Response 75 is guaranteed for product, please read the Help section a period of 12 months from the date of beginning on page 21.
  • Page 27: Technical Information

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Technical information Connection information The BT Response 75 is intended to be How many telephones can you have? connected to analogue networks and All items of telephone equipment have...
  • Page 28 BT Response 75 – Issue 2 – Edition 1 – 7/10/03 If the power fails If the battery warning light was not lit before the power was lost, all information should be retained for at least one hour (up to 6 hours for a fresh alkaline battery).
  • Page 29: Wall Mounting Template

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Wall mounting template 72mm...
  • Page 30 BT Response 75 – Issue 2 – Edition 1 – 7/10/03...
  • Page 31: Index

    BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Index answering machine 1471 feature nswer delay utgoing messages Answering machine check your outgoing message answer only delete your outgoing message loudspeaker volume record your outgoing message on/off layback...
  • Page 32 BT Response 75 – Issue 2 – Edition 1 – 7/10/03 Visit us at www.bt.com Offices worldwide The telecommunications services described in this publication are subject to availability and may be modified from time to time. Services and equipment are provided subject to British Telecommunications plc’s respective standard conditions of contract.
