Option Wi-Fi
HORLOGEs
HANDI
/ LEDI
®
®
MODE D'EMPLOI - page 3
HANDI
/ LEDI
CLOCks
®
®
USER GUIDE - page 17
MDE-option_Wi-Fi_horloges_HANDI_LEDI-1103V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HANDI and is the answer not in the manual?

Questions and answers

Summary of Contents for Gorgy Timing HANDI

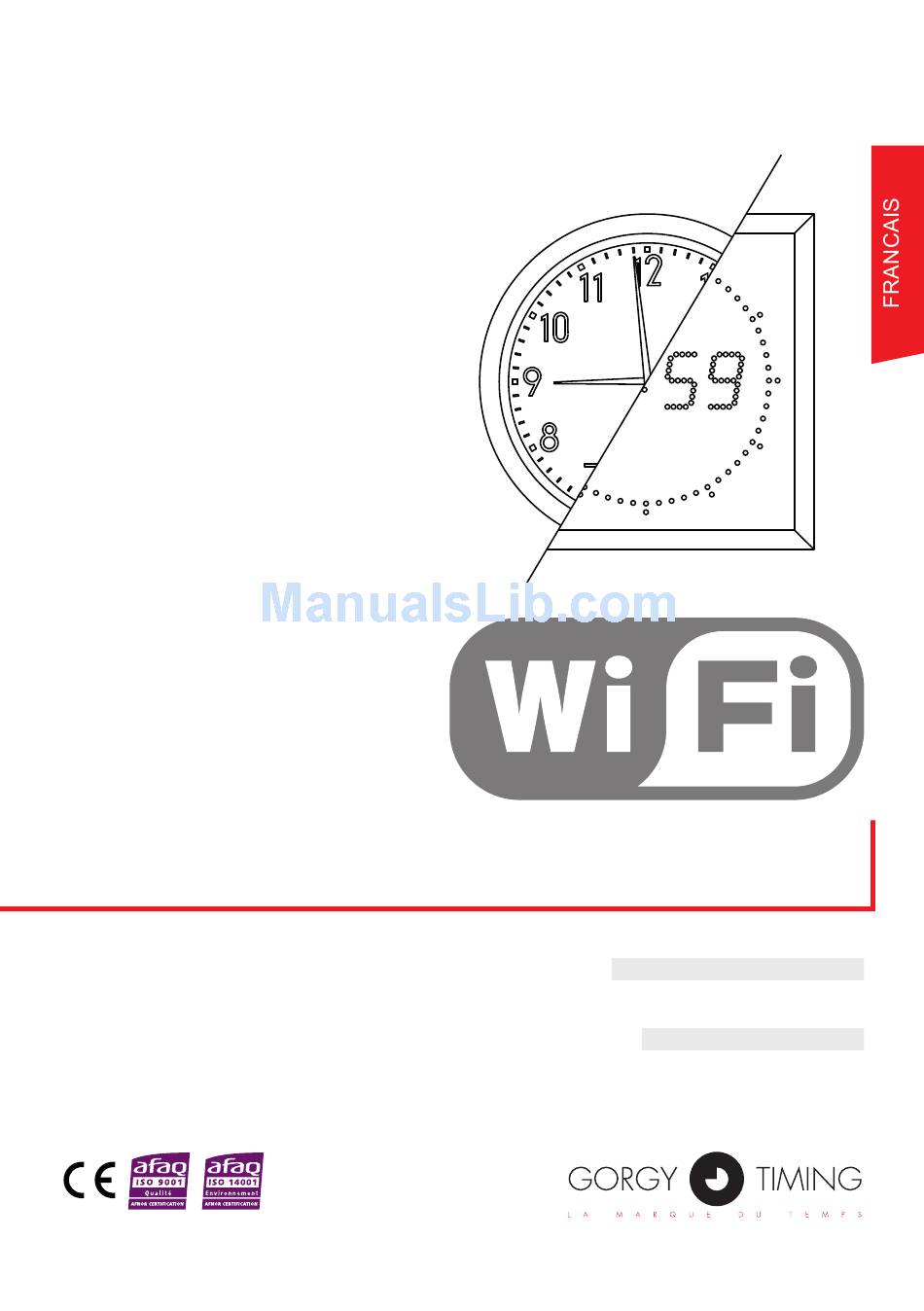

  • Page 1 Option Wi-Fi HORLOGEs HANDI / LEDI ® ® MODE D’EMPLOI - page 3 HANDI / LEDI CLOCks ® ® USER GUIDE - page 17 MDE-option_Wi-Fi_horloges_HANDI_LEDI-1103V1.1...
  • Page 2 (garder quelques centimètres de distance) Gorgy Timing décline toute responsabilité en cas d’accidents ou de dommages provoqués par une mauvaise utilisation du produit. Les produits GORGY TIMING sont conformes aux normes : CE, EN 60950, EN 55022, EN 50024. MDE-option_Wi-Fi_horloges_HANDI_LEDI-1103V1.1...
  • Page 3 ExPLICATION DES SYMbOLES PRÉSENTS SUR LE PRODUIT Danger général – si les instructions ne sont pas suivies, il y a un risque de dommages aux équipements. Danger électrique – si les instructions ne sont pas suivies, il y a un risque d’électrocution et de dommages corporels.
  • Page 4: Table Of Contents

    SOMMAIRE FONCTIONNEMENT GÉNÉRAL ................... 5 CONFIGURATION AvEC TAbLETTE ANDROID + GT NETWORk MANAGER MObILE ................6 CONFIGURATION MANUELLE ..................9 3.1. Connexion à l’horloge ......................9 3.2. Accès à l’interface Web de l’horloge ..................11 3.3. Configuration Réseau ......................11 3.4. Configuration NTP ......................12 3.5.
  • Page 5: Fonctionnement Général

    Wi-Fi avec les caractéristiques suivantes : GT_TYPE_xxxxxx Où « TYPE » est « LEDI » ou « HANDI », et « xxxxxx » le numéro de série de l’horloge. Par exemple, une horloge LEDI que l’on vient d’alimenter après déballage ne sait pas où...
  • Page 6: Configuration Avec Tablette Android + Gt Network Manager Mobile

    CONFIGURATION AvEC TAbLETTE ANDROID + GT NETWORk MANAGER MObILE La tablette Android avec l’application GT NETWORk MANAGER MOBILE est le moyen le plus rapide de configurer les horloges. Une fois l’application démarrée, dans l’onglet « statut », un bouton « scanner Wi-Fi » permet de rechercher les réseaux Wi-Fi aux alentours.
  • Page 7 ► Dans l’onglet "Configuration", il faut d’abord choisir le type de réseau (personnel ou entreprise), puis il faut renseigner la clef de cryptage du réseau choisi, ainsi que l’adresse IP du serveur qui sera utilisé pour la synchronisation. . ► Cliquer ensuite sur valider pour confirmer cette configuration.
  • Page 8 ► La dernière étape consiste à déployer la configuration sur les horloges. Il suffit pour cela de se rendre dans le 3 onglet « Déployer » et de cliquer sur « Envoyer la configuration ». ème ☛ Une fois l’horloge configurée, un signe apparait La configuration principale est terminée, l’horloge va ensuite automatiquement essayer de se connecter au réseau désigné.
  • Page 9: Configuration Manuelle

    CONFIGURATION MANUELLE La configuration manuelle des horloges consiste à reproduire les étapes automatisées par l’application GT Network Manager mobile . 3.1. CONNExION à L’hORLOGE ► Dans un premier temps, il faut connecter un terminal (Ordinateur portable, smartphone, Tablette . . ) à l’horloge. ►...
  • Page 10 ► Choisir l’horloge à configurer et utiliser la clef de cryptage fournie pour s’y connecter. ► Une fois le mot de passe validé, la tablette se connecte à l’horloge : MDE-option_Wi-Fi_horloges_HANDI_LEDI-1103V1.1...
  • Page 11: Accès À L'interface Web De L'horloge

    3.2. ACCèS à L’INTERFACE WEb DE L’hORLOGE Lorsque la connexion est établie, l’horloge attribue automatiquement une adresse IP à l’équipement connecté. Cette adresse est de la forme 192.168.2.xx . ► Pour accéder à l’interface de configuration, ouvrir un navigateur web (Internet Explo- rer, Chrome, Firefox,...) et entrer l’adresse IP suivante : 192.168.2.1 dans la barre d’adresse.
  • Page 12: Configuration Ntp

    3.4. CONFIGURATION NTP ► Pour indiquer à l’horloge quel serveur NTP utiliser pour la synchronisation, ouvrir la page « Paramètres NTP ». ► Renseigner les champs, puis cliquer sur « Apply » pour valider cette configuration. MDE-option_Wi-Fi_horloges_HANDI_LEDI-1103V1.1...
  • Page 13: Configuration Wi-Fi

    3.5. CONFIGURATION WI-FI ► Pour indiquer à l’horloge à quel réseau Wi-Fi se connecter, ouvrir la page « paramètres Wi-Fi » et renseigner les champs ssID (nom du réseau Wi-Fi) et shared key (Clef de cryptage) ☛ Attention ! Respecter les majuscules / minuscules lors de la saisie de ces deux champs.
  • Page 14: Option Chronomètre

    3.6. OPTION ChRONOMèTRE ► Si l’horloge possède l’option chronomètre, vous pouvez configurer le chronomètre à l’aide de la page web. La page «stopwatch», rapporte un état instantané du chrono- mètre et permet de le configurer. ► La section "status" donne l'état du chronomètre à la dernière actualisation. ►...
  • Page 15: Fonctionnalités Avancées

    4. FONCTIONNALITÉS AvANCÉES 4.1. CONFIGURATION DE PLUSIEURS hORLOGES ► En utilisant la tablette + GT Network Manager mobile : il suffit de cliquer sur chaque horloge que l’on veut configurer dans la liste de l’onglet « statut ». ► Dans l’onglet « Déployer » un clic sur « Envoyer la configuration » configure auto- matiquement toutes les horloges de la liste.
  • Page 16 Tél: +33 4 76 30 48 20 Fax: +33 4 76 30 85 33 email: gorgy@gorgy-timing.fr - www.gorgy-timing.com RADIO TIMING , LEDI , LEDICA , HANDI sont des marques déposées GORGY TIMING. ® ® ® ® Numéro de déclaration d’activité de prestataire de formation : 82 38 04877 38...
  • Page 17 /LEDI CLOCkS ® ® Option Wi-Fi USER GUIDE MDE-option_Wi-Fi_horloges_HANDI_LEDI-1103V1.1...
  • Page 18 (keep the distance of a few centimeters). Gorgy Timing disclaims all responsibility in case of accident or damage caused by an improper use of the product. GORGY TIMING products are compliant with the following standards: CE, EN 60950, EN 55022, EN 50024 MDE-option_Wi-Fi_horloges_HANDI_LEDI-1103V1.1...
  • Page 19 NOTICE OF SAFETY SIGNS ON ThE PRODUCT Danger – risk of damage to equipment if the instructions are not followed. Electrical Hazard – Failure to follow the instructions may result in electric shock and injury to persons. The equipment is completed protected through double insulation. Warning Follow the precautions and instructions as indicated below in order to ensure your safety and that of your environment, and to prevent your device from any possible damage.
  • Page 20 GENERAL DESCRIPTION ..................21 CONFIGURATION USING ThE ANDROID TAbLET + GT NETWORk MANAGER MObILE ................22 MANUAL CONFIGURATION ..................25 3.1. Connection to the clock ...................... 25 3.2. Clock Web interface ......................27 3.3. Network Settings ........................ 27 3.4. NTP Configuration ......................28 3.5.
  • Page 21: General Description

    GT_TYPE_xxxxxx Where « TYPE » is « LEDI » or « HANDI » and « xxxxxx » is the serial number of the clock. For instance, an out of the box LEDI clock won’t know where to connect. It will then create...
  • Page 22: Configuration Using The Android Tablet

    2. CONFIGURATION USING ThE ANDROID TAbLET + GT NETWORk MANAGER MObILE The Android tablet and GT Network Manager Mobile are the quickest way to configure the clocks. Once the application is started, in the « status » tab, a « scan Wi-Fi » button allows the user to search for any Wi-Fi network in the area.
  • Page 23 ► In the « Settings » tab, you must first select the type of network (Personnal or enter- prise), then you have to fill in the encryption key of the chosen network and the IP address of the server that will be used for synchronization. ►...
  • Page 24 The last step is to transfer the configuration to the clocks. ► To do this, go to the third tab (« deploy ») and tap “send the configuration”. ☛ Once the clock is configured, a green sign appears The main configuration is done; the clock will then automatically try to connect to the spe- cified network.
  • Page 25: Manual Configuration

    3. MANUAL CONFIGURATION The manual configuration is the succession of the steps that are automatically done with the GT Network Manager Mobile software. 3.1. CONNECTION TO ThE CLOCk ► To begin, you have to connect a Wi-Fi device to the clock. (Laptop, smartphone, tablet ...) ►...
  • Page 26 ► Use the provided encryption key to connect to the clock. ► Once validated the password, the tablet will connect to the clock: MDE-option_Wi-Fi_horloges_HANDI_LEDI-1103V1.1...
  • Page 27: Clock Web Interface

    3.2. CLOCk WEb INTERFACE When the connection is established, the clock will automatically give an IP address to the connected device. This address is 192.168.2.xx. ► To reach the configuration interface, open a web browser ( Internet Explorer, Chrome, Firefox, . . . ) and use the following IP address : 192.168.2.1 in the address bar. ►...
  • Page 28: Ntp Configuration

    3.4. NTP CONFIGURATION ► To tell which NTP server to be used for synchronization, open the « NTP settings » page. ► Fill in the fields and click « Apply » to save the settings. MDE-option_Wi-Fi_horloges_HANDI_LEDI-1103V1.1...
  • Page 29: Wi-Fi Configuration

    3.5. WI-FI CONFIGURATION ► To tell the clock which Wi-Fi network to use, open the « Wi-Fi Settings » page and fill the “SSID” (Name of the Wi-Fi Network) and “shared Key” (Encryption key) fields. ☛ Warning! These fields are case sensitive. A mistake would prevent the clock from connecting to the Wi-Fi network.
  • Page 30: Timer Option

    3.6. TIMER OPTION ► If the clock has the timer option, you can set the timer using the web page. The "stopwatch" page reports an instantaneous state of the stopwatch and allows configuring and commanding it. ► The "status" section gives the stopwatch state at the last refresh. ►...
  • Page 31: Advanced Features

    4. ADvANCED FEATURES 4.1. CONFIGURING MANY CLOCkS ► Using the tablet + GT Network Manager Mobile: You just have to tap every clock you want to configure in the list of detected clocks in the “status” tab. ► In the « Deploy tab », tap the « Send this configuration » button to automatically confi- gure all the clocks in the list.
  • Page 32: Technical Support

    +33 476 30 48 20 support@gorgy-timing.fr RADIO TIMING®, LEDI®, LEDICA®, HANDI® are trademarks by GORGY TIMING. Number of statement for training provider activity : 82 38 04877 38 Gorgy Timing RC74B38 - Any technical, aesthetic, color modifications can be made without notice. MDE-option_Wi-Fi_horloges_HANDI_LEDI-1103V1.1...
