Ensure the flue extension slopes
downwards towards the boiler by a
minimum of 25 - 30 mm per metre
Easy-Flue 45 mm clamp
90° bend
Easy-Flue
40 mm clamp
and seal
Seal joint
133
Front of boiler
1.9. FIT PLUME MANAGEMENT
COMPONENTS - (OPTIONAL)
The following procedures detail the options
for management of the exhaust flue gas/plume
emitted from the terminal.
- The terminal supplied with the Easy-Flue can
be altered to divert exhaust flue gas/plume at
an angle.
This can be achieved by simply turning the end
section of the terminal to the desired angle.
- The CD Easy-Flue can be converted to allow the
inner flue duct to be extended so as to position
the terminal in an area where the exhaust flue
gas/plume will not cause a nuisance. This can
be done before or after installation of the flue,
providing there is access to the terminal from
outside.
a. Remove the screws (1 in Fig. 1-13) securing
the terminal and remove the terminal by
pulling it from the flue assembly. Remove the
screw (2 in Fig. 1-13) securing the terminal
end section and remove the end section from
the terminal.
Ensure outer flue duct of Easy-Flue is horizontal
Extension clamp
Inner seal joint
CD Flue extension
End of extension
38
b. Locate a 93° Plume Management bend
into the flue assembly and rotate it to the
direction required.
c. Connect to the 93° bend the required Plume
Management components as detailed and
refer to Fig. 1-14.
Notes:
- The wall support brackets must be used to
secure the Plume Management pipework
to the wall and prevent disconnection of
the 93° bend from the flue assembly or any
other component.
- Each joint must be secured with one of
the screws provided to prevent accidental
disconnection.
- Ensure there is always a slight slope
towards the flue assembly fitted in the
wall and there is no part of the plume
management pipework where condensate/
rain will collect and cause a blockage or any
restriction.
1
2
Ensure the inner duct within the terminal
is at the top.
Note:
to slope towards the boiler
CD Easy-Flue
Inner seal joint
Flue length (L)
1
9
The inner duct must be positioned
120
20
Flue sealing
collar

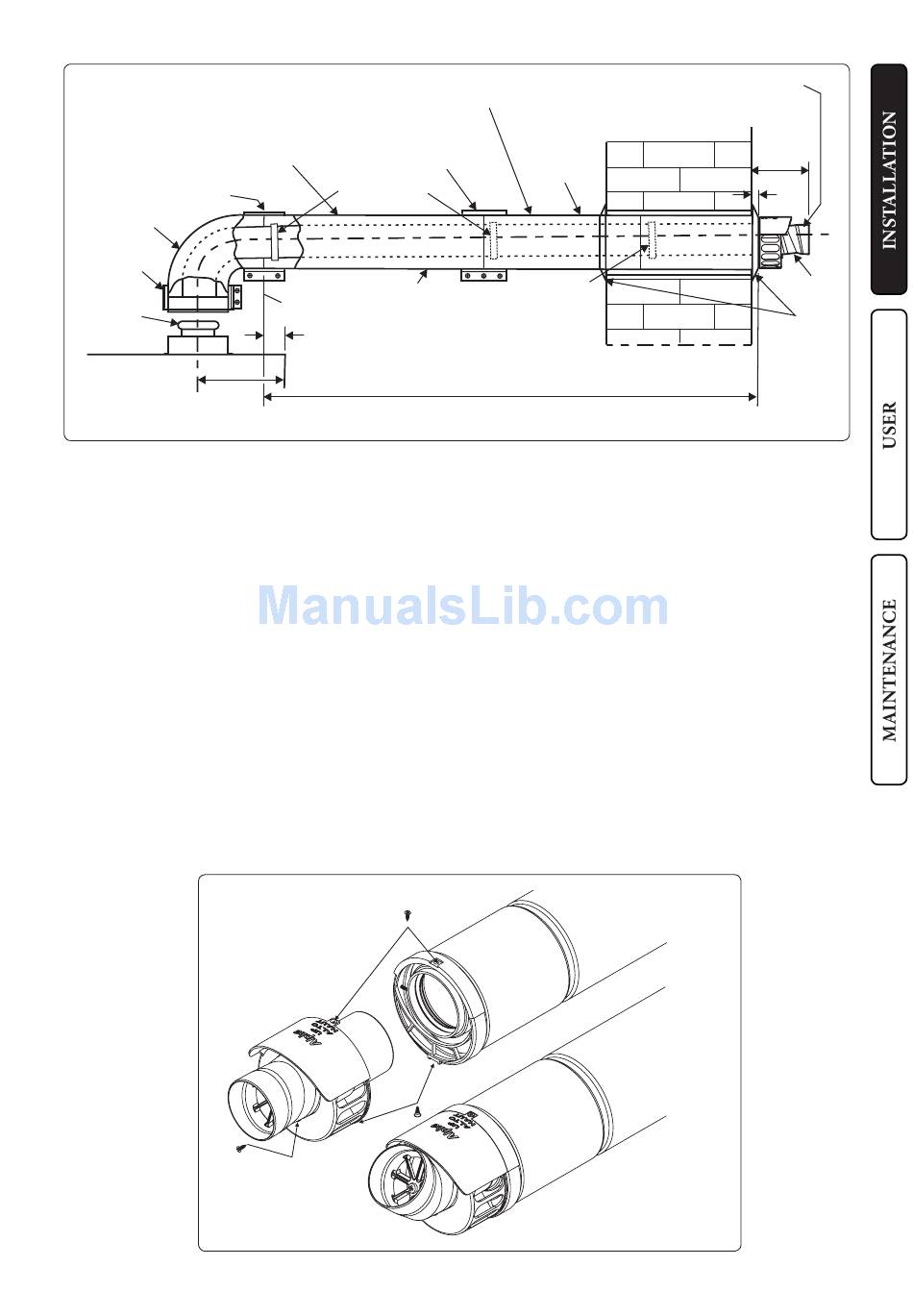

Fig. 1-12 - Right side flue
d. Terminate the Plume Management pipework
by fitting the terminal end section (push-fit)
previously removed. Refer to Fig. 1-13.
e. The Plume Management components
available for extending the inner flue duct
are as follows:-
Plume Management 93° bend 60 mm dia.
(each 93° bend equivalent to 1.3 m flue
length)
Plume Management 45° bend 60 mm dia.
(each 45° bend equivalent to 0.9 m flue
length)
Plume Management 1000 mm extension 60
mm dia. (equivalent to 1 m flue length)
60 mm dia. wall bracket
Fig. 1-13
Alpha Intec 50CS
Terminal
