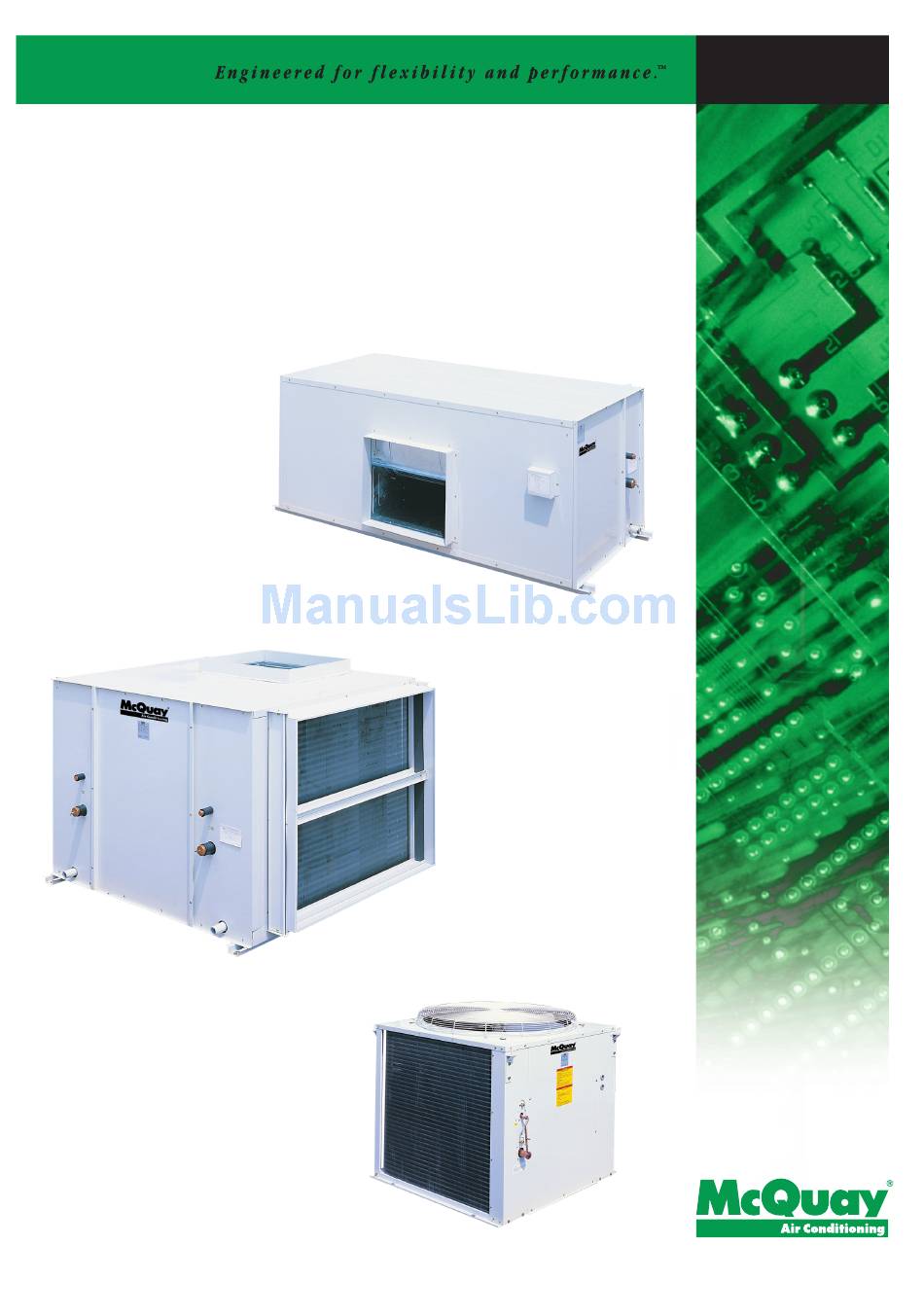

MDB - D - 2004
Ducted Blower Split Systems
Models: MDB 075 - 500D
MDB 075 - 500DR
MDB 125/150 D/DR
MDB 200 - 500 D/DR
MMC 075 - 150 D/DR
