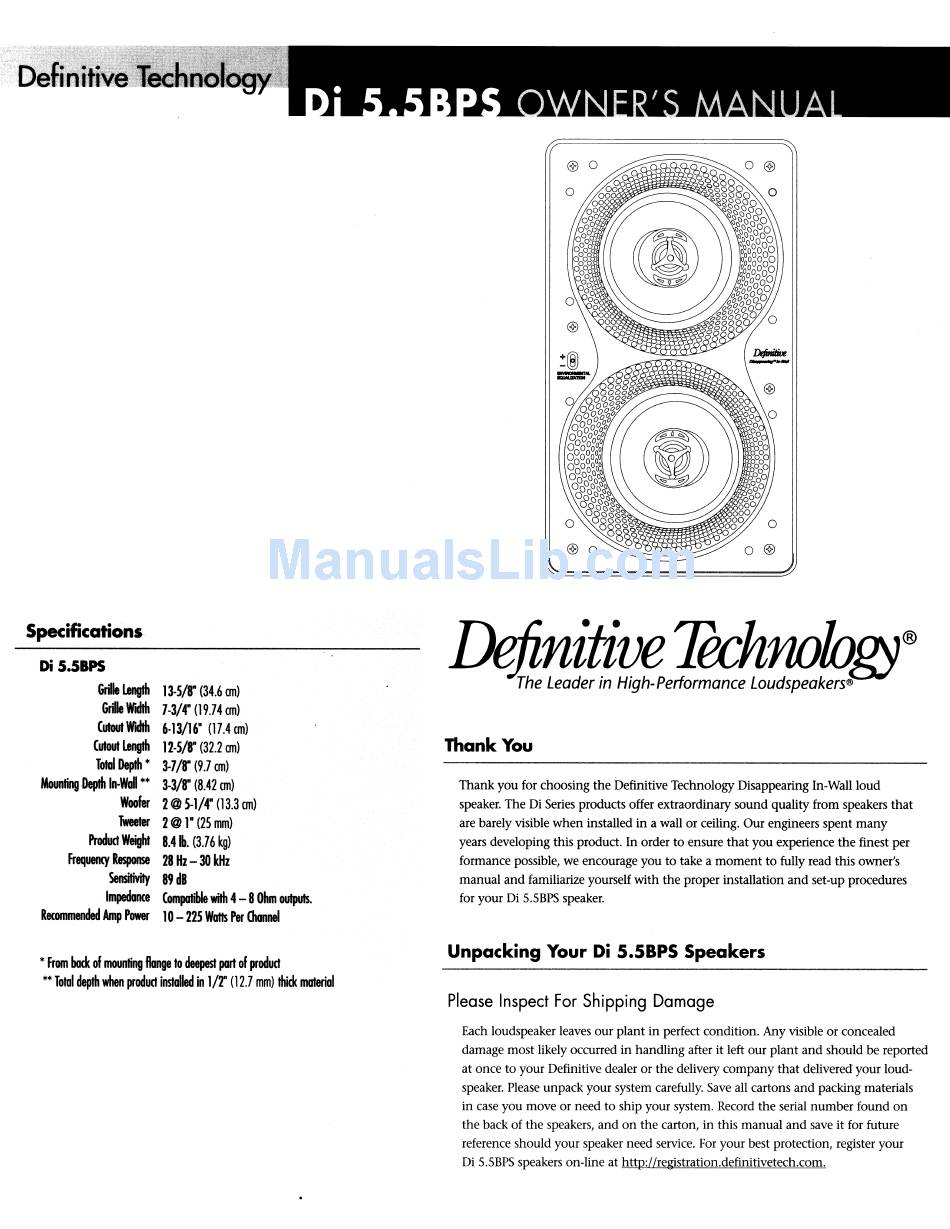

Definitive Technology DI 5.5BPS Owner's Manual

Specifications
Di 5.5BPS
Grille Length 13-5/8" (34.6
an)
Gri8e WIlhb 7·3/4· (19.74
an)
Cutout
WidIh 6·13/16' (17.4
an)
Cutout
Length 12·5/1" (32.2
an)
Total Depth
0
3.7/8" (9.7
an)
Mounting.Depth In-WaH
00
3.3/1" (8.42
an)
Woofer
2
@
5-1/4' (13.3
an)
Tweeter 2@ I' (25
mm)
Product
Weight
8.4 lb. (3.76kg)
frequelKy Response 2B Hz - 30 kHz
SensiIiviIy
B9 dB
Impedonce Compatible with 4- 8
Ohm
outpuIs.
Recommended Amp
Power 10 - 225 Watts Per Channel
o
From bode of
mounting
flange
to
deepest
part
of produrt
00
Total depth when product installed in
I/T
(12.7
mm) thid<
material
DejjnitiveTechnology®
The Leader in High-Performance Loudspeakers®
Thank
You
Thank you for choosing the Definitive Technology Disappearing In-Wall loud
speaker. The Di Series products offer extraordinary sound quality from speakers that
are barely visible when installed in a wall or ceiling. Our engineers spent many
years developing this product. In order to ensure that you experience the finest per
formance possible, we encourage you to take a moment to fully read this owner's
manual and familiarize yourself with the proper installation and set-up procedures
for your
Di
S.SBPS speaker.
Unpacking Your Di 5.5BPS Speakers
Please Inspect For Shipping Damage
Each loudspeaker leaves our plant
in
perfect condition. Any visible or concealed
damage most likely occurred in handling after it left our plant and should be reported
at once to your Definitive dealer or the delivery company that delivered your loud-
speaker. Please unpack your system carefully. Save all cartons and packing materials
in case you move or need to ship your system. Record the serial number found on
the back of the speakers, and on the carton, in this manual and save it for future
reference should your speaker need service. For your best protection, register your
Di S.SBPS speakers on-line at http://registration.definitivetech.com.
