green&clean hood type Dishwasher, Manual
with ESD, ZERO LIME Device & Filtering System
504288 (EHT8IELG6)
Short Form Specification
Item No.
Unit to be Electrolux Green & Clean upright hood type hot water rinsing
dishwasher with WASH SAFE CONTROL. Electrical characteristics to
be ___380-400 volts, three phase 50Hz operation, convertible to single
phase on-site. Uses 2 liters of clean water per final rinse cycle. 84°C
rinse temperature and pressure guaranteed by AISI 304 built in
atmospheric boiler and built in rinse booster pump. Washing
performance is guaranteed by a powerful 0.8 kW wash pump and
upper and lower stainless steel revolving washing spray arms. Energy
Saving Device recovers the heat inside the machine to heat-up the
incoming water to the boiler. ZERO LIME Device automatically de-
scales the whole hydraulic circuit and washing chamber. Unit to feature
"WASH SAFE CONTROL" led light. Green light will indicate that all
items washed have been properly rinsed. CLEAR BLUE filtering system
removes majority of soil from the wash water. 304 Stainless steel
construction to include double skin insulated hood, external, front and
side panels, wash tank, tank filter plus wash and rinse arms. Unit shall
be field convertible from straight to corner operation. The unit shall
include drain pump, detergent and rinse aid dispenser pumps and is
equipped with flexible fill hoses. Delivered on height-adjustable feet.
APPROVAL:
Warewashing
Filtering System

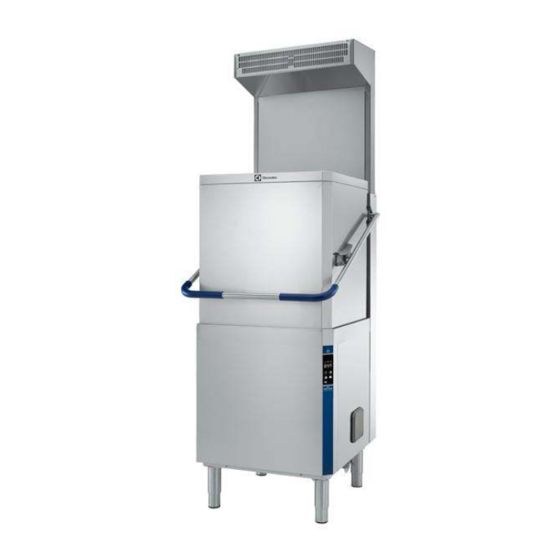

Green&Clean Hood type
dishwasher, with manual
double skin insulated,
Energy Saving Device,
ZERO LIME Device, CLEAR
BLUE Filtering System, 80r/h
- 380-400V/3N/60Hz
Electrolux Professional
www.professional.electrolux.com
professional@electrolux.com
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
• Built-in high efficiency Energy Saving Device (ESD)
transfers the heat captured inside the machine to
the incoming cold water before entering the boiler,
thus saving energy; no ventilation hood is needed
for the machine (depending on local regulation
and conditional on compliance with VDI 2052).
• ZERO LIME Device ensures total scale removal
from the boiler, the hydraulic circuits and the
washing chamber allowing ultimate performances
and lower energy consumption thanks to the high-
efficiency heating element.
• CLEAR BLUE advanced filtering system provides
cleaner wash water and higher active detergent
thus ensuring better washing performances and
lower running costs.
• Requires only 2 liters of water per washing cycle
thus ensuring low energy, water, detergent and
rinse aid consumption.
• Built-in atmospheric boiler sized to raise incoming
cold water to a minimum of 84 °C for sanitizing
rinse. No external boiler is required. Constant
temperature of 84 °C throughout the rinsing cycle
regardless of the network's water pressure.
• Green light of "WASH SAFE CONTROL" confirms
that items have been rinsed properly.
• Unique temperature interlock guarantees required
temperatures in both the wash and final rinse.
• Incorporated Soft Start feature to offer additional
protection to more delicate items.
• Slanted wash arms and sloped ceiling to avoid
detergent-filled wash water dropping on clean
dishes after the rinsing phase, thus guaranteeing
ideal washing results.
• Cycle may be interrupted at any time by lifting the
hood.
• Automatic self-cleaning cycle and self-draining
vertical wash pump and boiler to avoid bacteria
proliferation.
• State-of-the-art electronic controls with built-in
programming, self-diagnostics for serviceability
and automatic interior self-cleaning cycle.
• Built-in rinse aid and detergent dispenser with
automatic initial and continuous cycle loading for
perfect result while minimizing service and
maintenance needs.
• Boiler power setting from control panel to facilitate
technician's operation
installed power, thus avoiding the need of machine
opening.
• Three phase electrical connection, convertible to
single phase on-site.
• IP25 protection against water jet, solid objects and
small animals (larger than 6 mm).
• NSF/ANSI 3 and DIN 10512 compliant.
• Maximum capacity per hour of 80 racks or 1.440
dishes (High productivity mode) easy to switch to
63 racks or 1.134 dishes (NSF/ANSI 3 mode) by
pressing a button.
• 45/84/150 seconds cycles (High productivity
mode); 57/84/150 seconds cycles (NSF/ANSI 3
mode).
