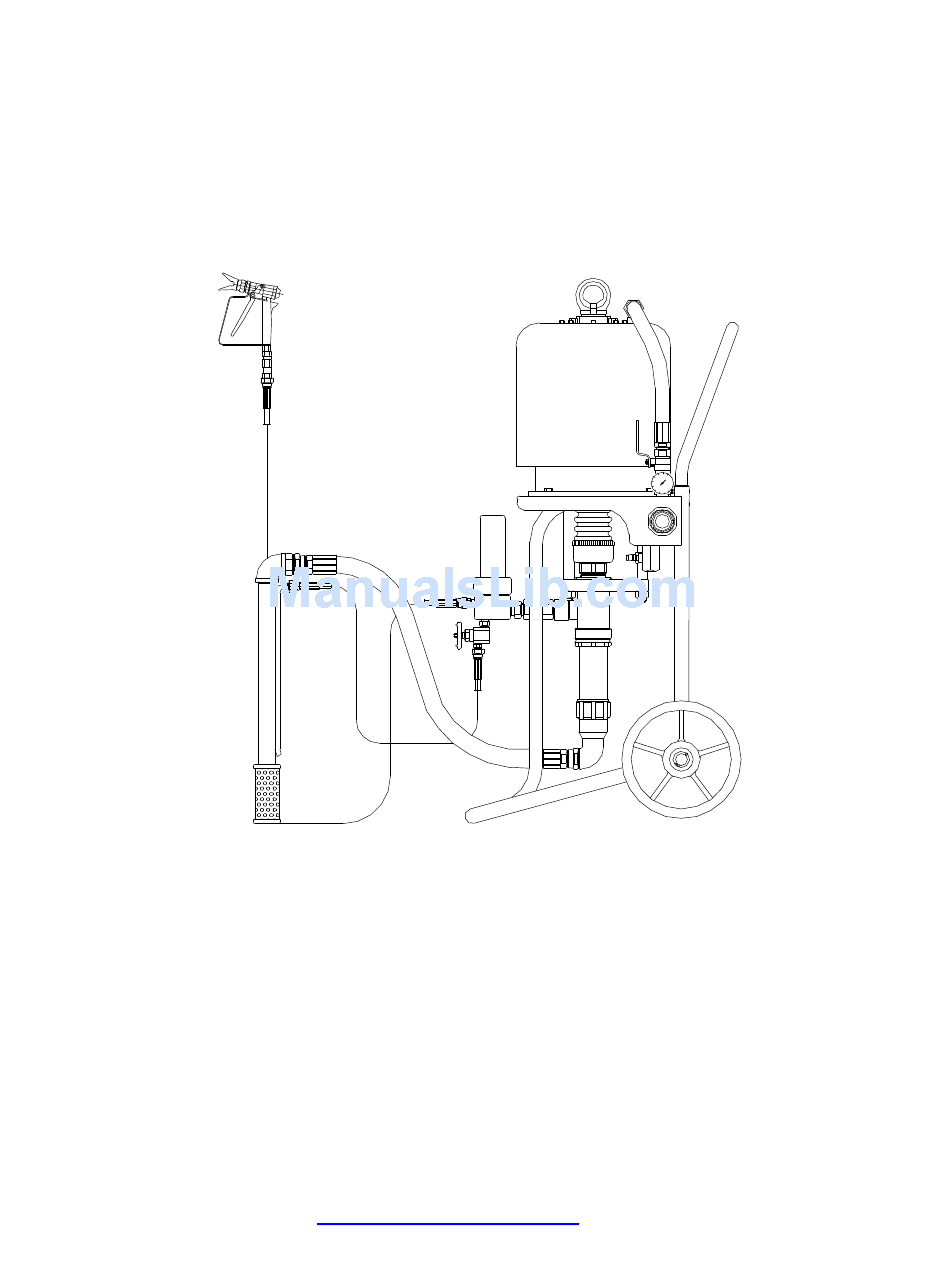

- Page 1 MODEL DP-6390/DP63C (63:1) PNEUMATIC AIRLESS PAINT PUMP INSTRUCTION MANUAL www.airlesspaintsprayer-pump.com...
- Page 2 CATALOGUE USAGE TROUBLE AND MAINTENANCE WARNINGS SPARE PARTS LIST...
- Page 3 DP6390/DP63C AIRLESS PUMP SPECIFICATION 1. FLUID PRESSURE RATIO 63：1 2. DELIVERY 28L/MIN 3. MAX. DISCHARGE PRESSURE 378BAR 4. AIR PRESSURE RANGE 0.3-0.6MPA...
- Page 4 2. To connect the inlet air hose. Generally the diameters of the inlet hoses shouldn’t be less than 20mm. If the air source is far away from the airless pump, the diameters of the inlet hoses shouldn’t be less than 25mm. Also to confirm every airway hose and valve connector clean to connect the air source hoses.
- Page 5 When the load resistance of the airless pump is balanced with the pulls of the air motor, the cycle of hydraulic pump can be stopped gradually and the spray can be started.
- Page 6 10. After the painting, firstly to exhaust the painting completely, then put the suction hose into the solvent barrel to cycle the pump until the pump become clean. 11. To twist the paint hose and spray gun on the main unit in order not to be damaged.
- Page 7 Painting hydraulic system troubles: 1. If the air motor cycles normally, the exhaust of paintings is not normal. Please check the painting barrel whether the barrel is empty or not, and check all the exhaust system and filtering net whether they are blocked or not.
- Page 8 6. The spark can cause the fire and explosion, the fire is forbidden in the painting area. 7. This airless pump must be grounded during the usage to avoid the static electricity. 8. Before the cleaning and maintenance, the air source must be closed...
-
Page 9: Airless Pump
DP63C AIRLESS PUMP Drawing No. Description DP63C.001.000 Air motor DP63C.002.000 Air regulator kit DP63C .003.000 Cart DP63C.001.000 Painting pump DP63C.003.000 Surge tank filter DP63C.006.000 Suction hose kit DP63C .007.000 Suction cup DP63C .008.000 Painting recycle hose DP63A.006.000 High pressure painting hose kit P8180 attached 1.000... - Page 10 DP63C AIR MOTOR PART DRAWING...
- Page 11 DP-6390C 63:1 PUMP HOUSING PART DRAWING...
- Page 12 DP6390C 63:1 SURGE TANK FOR NO PULSE DURING PAINTING...
- Page 13 DP6390C 63:1 AIR REGULATOR VALVE ASSEMBLY...
