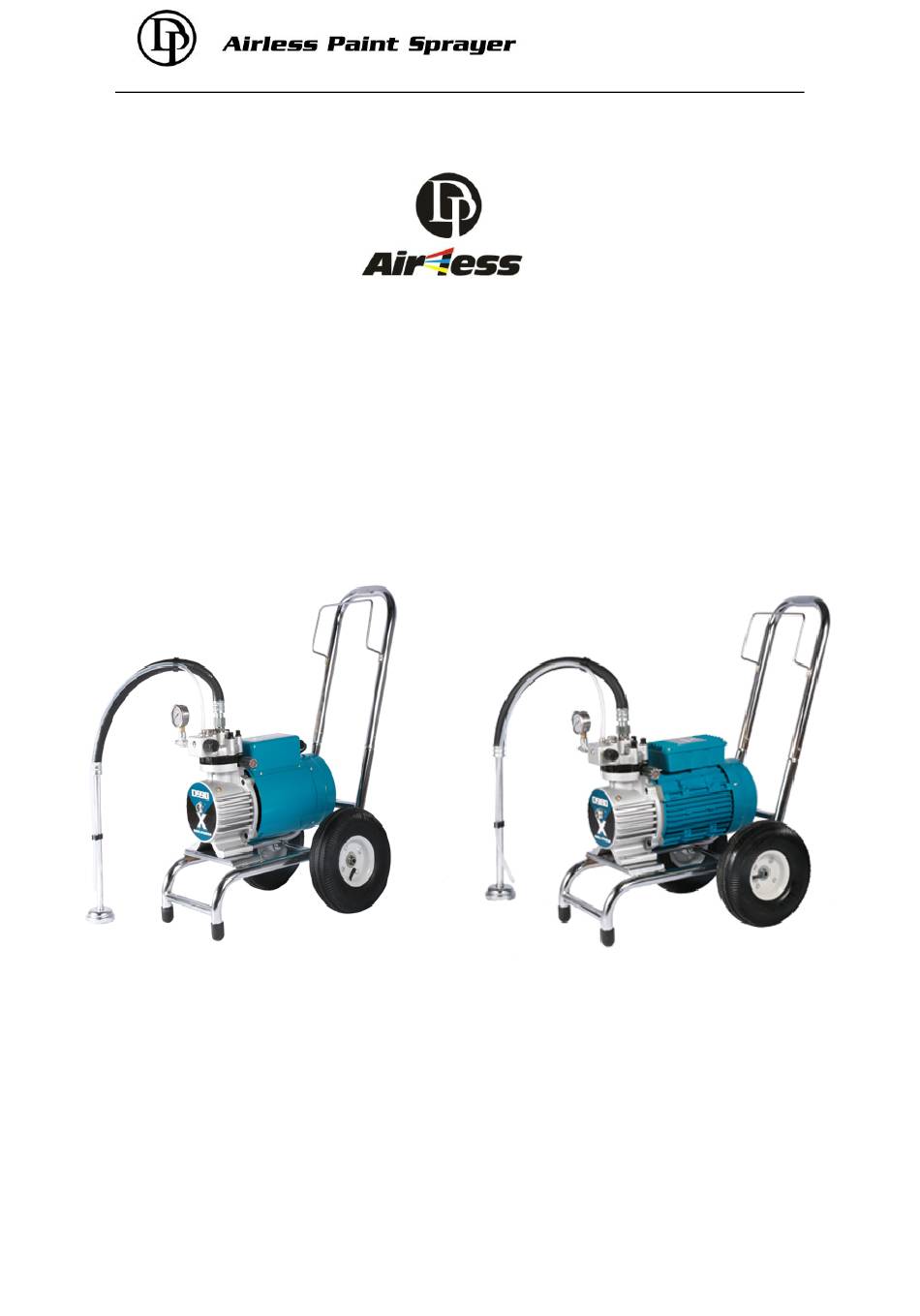

Operating Instruction

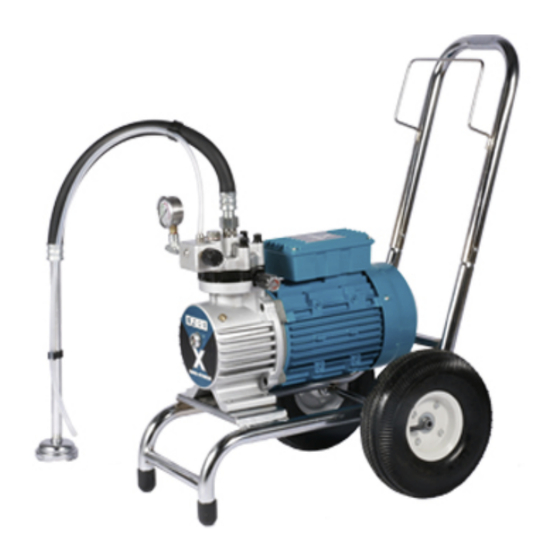

Model No.: X980 X990 DP-6000
Please read and keep this manual, Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all
safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instruction for future reference.
www.dpairless.com
1
Advertisement
Table of Contents
Related Manuals for Airless X980
Summary of Contents for Airless X980
- Page 1 Operating Instruction Model No.: X980 X990 DP-6000 Please read and keep this manual, Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instruction for future reference.
-
Page 2: Warnings For Safe Usage
Before using the equipment please make sure that you have read and understood the Instruction Manual and observe all warnings when operating. High pressure caution! Airless painting equipment generates extremely high pressure. Paint sprayed under high pressure can cause personal injury so please observe the following precautions. ... - Page 3 The airless gun is earthed via paint hose (which can conduct electricity) Do not connect the earth wire to a gas pil_ as it can lead to fire or explosion.
- Page 4 Part names, functions & basic operation Warning! The airless gun sprays at extremely high pressure and is dangerous. Never touch tip of gun (spray orifice) or place it near the face. Very high pressure is applied to paint hose. Do not twist, bend, flatten or cut with any sharp object.
-
Page 5: Operational Procedures
Operational procedures Preparation Make sure that paint hose, return hose,airless gun and nozzle tip are all properly connected. Do not connect Oil gauge suction hose yet. Use oil gauge to check whether there is any oil. Carry out earth and check fuel. -
Page 6: Confirming Operation
Confirming operation Turn the relief valve right around to "open" Turn the pressure control valve around to “low” Check that suction filter is not blocked. After engine starts ( see Engine Start up) turn the pressure control valve slowly to “high” Place the palm of your hand against air intake and check for suction. -
Page 7: Commencing Operation
“low” Turn relief valve to “close” Slowly turn pressure control valve to “high” while pulling the trigger of airless gun and paint will come out of the nozzle. Then release gun trigger and re-set pump to desired spraying pressure. - Page 8 Switch off engine. Close fuel cock. Shut-down and maintenance procedures Check that pressure is at zero then activate safety lock on airless gun and remove nozzle tip. Check that relief valve is at "open" and pressure control valve is at "low" then remove suction hose from paint and start engine.
- Page 9 Shut-down and maintenance procedures (continued) 4. Once cleaning fluid has run out of return hose, turn relief valve to “close”, disengage safety lock on airless gun, pull trigger and purge paint out of hose. 5. Once cleaning fluid has run through tip...
-
Page 10: Airless Spray Gun Operation
Airless spray gun operation Remove nozzle tip gun filter as illustrated. If nozzle tip is Aim gun at surface for painting blocked, remove tip and clear blockage by blowing in air and move horizontally keeping florm opposite direction. When attaching, check that... - Page 11 Nozzle tip diameter Orifice Size Fan Width - Inches Flow Rate Application Filter 2” – 4” 4” – 6” 6” – 8” – 10” 10” – 12” 12” – 14” 16” – 18” inch L/min 8” Fan 0.011” 0.12 0.45 Stain or Lacquer 150mesh (red) 0.013”...
-
Page 12: Maintenance And Inspection
Maintenance and inspection Changing oil Confirm that drain plug is in place then pur in apporx. Remove oil cap and drain plug 900cc of oil and check using oil gauge. Overfilling will to drain oil result in leaking via relief valve during operation. Caution! Please take waste oil to your nearest petrol station. - Page 13 Changing outlet valve Should paint particles or aggregate enter the valve it will show marked wear. Removed discharge vales using Remove outlet valve holder using corresponding 27mm spanner. corresponding 12mm hex key. Changing suction valve As with the outlet valve certain paint will also cause marked wear. Please change using the suction valve set.
-
Page 14: Troubleshooting
Troubleshooting Problem Cause Action 1. Air purging hasn’t been No suction strength 1. Purge air carried out 2. Carry primingand 2. Sticking suction clear any adhension by discharge valves inserting a rod into the 3. Pressure control valve suction valve. has loosened toward the 3. - Page 15 Operating procedure for DP-6860E PREPARATION 1. Connect paint hose, suction hose, return hose and airless gun properly. 2. Check the oil levels. 3. Check that the unit is switched 'off' connect to 2LIOV power. Do not exceed 15m if using extension cord.
-
Page 16: Exploded View
Exploded view... - Page 19 Bolt Down seal Seal of inlet valve Piston Upper part of outlet valve Spring Cooper gasket Spring pad Spraying for outlet valve Circlip Valve ball Gasket Down part of outlet valve Air release valve Return tube connector Oil level glass gasket Screw of return tube connector Oil level glass Body of inlet valve...
