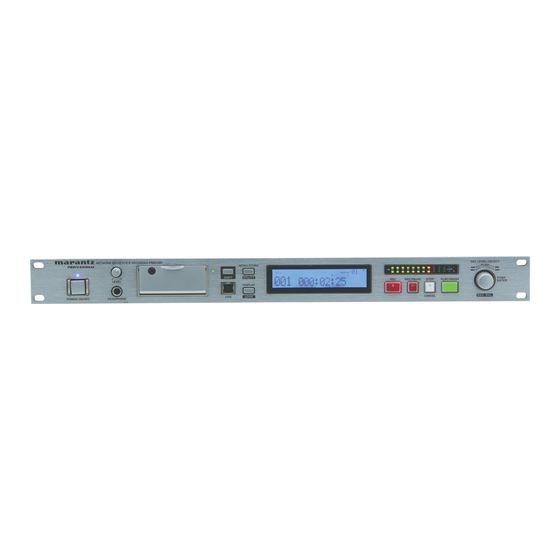

Network solid state recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

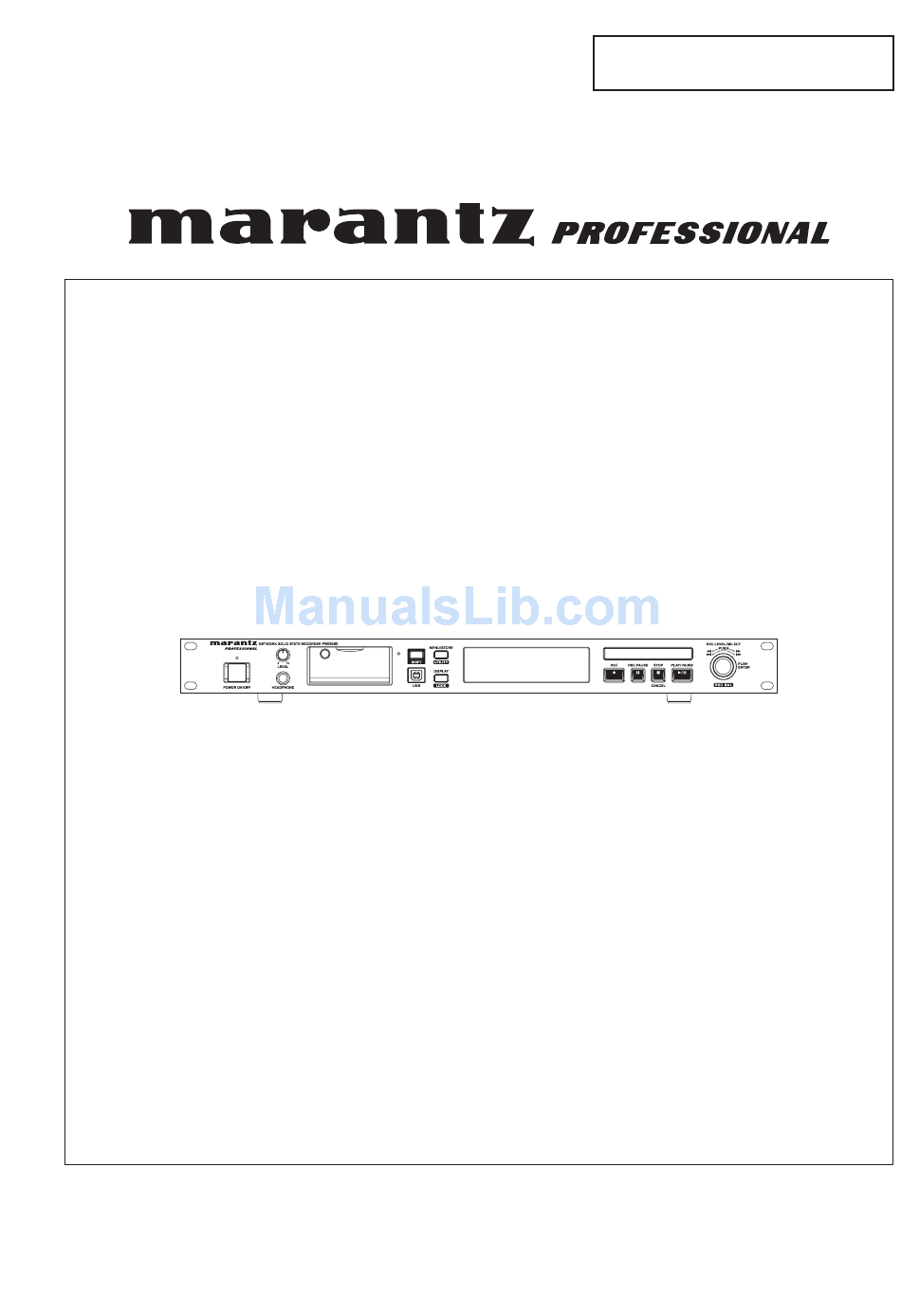

SERVICE MANUAL
MODEL
Network Solid State Recorder
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
修理の際は、必ず取扱説明書を準備し操作方法を確認の上作業を行ってください。
KAYABACHO TOWER, 1-21-2 SHINKAWA, CHUO-KU, TOKYO 104-0033 JAPAN
PMD580
D
M Holdings Inc.
&
PROFESSIONAL BUSINESS COMPANY
Telephone : 03 (6731) 5588
For U.S.A., Canada, Europe,
& Japan model
Part no. 00M09CS855010
First Issue 2008.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMD580 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz PMD580

Summary of Contents for Marantz PMD580

  • Page 1 For U.S.A., Canada, Europe, & Japan model SERVICE MANUAL PMD580 MODEL Network Solid State Recorder Please use this service manual with referring to the user guide ( D.F.U. ) without fail. 修理の際は、必ず取扱説明書を準備し操作方法を確認の上作業を行ってください。 M Holdings Inc. & PROFESSIONAL BUSINESS COMPANY KAYABACHO TOWER, 1-21-2 SHINKAWA, CHUO-KU, TOKYO 104-0033 JAPAN Telephone : 03 (6731) 5588 Part no.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE 1. TECHNICAL SPECIFICATIONS ..................... 1 2. SERVICE MODE ..........................2 3. SETTING THE MAC ADDRESS ..................... 4 4. UPDATING THE FIRMWARE ......................5 5. WIRING DIAGRAM ........................11 6. BLOCK DIAGRAM ........................13 7. SCHEMATIC DIAGRAM ....................... 15 8.

  • Page 3: Technical Specifications

    1. TECHNICAL SPECIFICATIONS Digital Audio System Balanced Digital output Type ........XLR (1:GND, 2:HOT, 3:COLD) System ..........Solid State Recorder Output impedance ..........110 ohms Usable Media ....CF memory cards, Microdrive cards Standard output level ........... 3.5 Vp-p Recording and media methods Format ...

  • Page 4: Service Mode

    2. SERVICE MODE 以下の手順に従い、 サービスモードを実行できます。 Service mode can be performed with the following procedures: 1. POWER ON/OFF スイッチを押し、 PMD580 の電源を入 1. Press the POWER ON/OFF switch to turn on the power. れます。電源を入れた後、ディスプレイに “Booting” When the power is turned on, “Booting” then “Initial”...
  • Page 5 Press the Jog wheel while The default values for the destination this display is shown. (Europe, United States, or Japan) are set for initialization. 表示中にジョグダイヤル 1) Select “US” for the United States, “EU” for を押します。 Europe, or “JP” for Japan. 2) Press the Jog wheel.
  • Page 6 (For Japan) （日本向けのみ） The lighting condition of the LED of each button Press the Jog wheel while can be checked with the special tool connected this display is shown. to the parallel connector. • PLAY button ....The PLAY LED lights. 表示中にジョグダイヤル...

  • Page 7: Setting The Mac Address

    3. MAC ADDRESS 設定方法 3. SETTING THE MAC ADDRESS サービスモードにある “Mac アドレス” 設定を行います。 Set “Mac Address” in Service mode. 1. POWER ON/OFF スイッチを押し、 PMD580 の電源を入 1. Press the POWER ON/OFF switch to turn on the power. れます。 2. STOP/CANCEL ボタンと DISPLAY/LOCK ボタンを同時...

  • Page 8: Updating The Firmware

    Service mode. For details, see “EEPROM” settings in の “EEPROM” 設定をご覧ください。 Service mode. Requirements for updating the firmware ファームウェアの更新作業に必要なもの • 書き換えたい PMD580 • PMD580 to be updated • CF カード • CF card • パーソナル・コンピュータ • Personal computer • ファームウェア更新用ファイル...
  • Page 9 ファームウェアの更新作業 Updating the fi rmware Load the prepared CF card into the PMD580 to update the 前準備した CF カードを PMD580 に挿入してファームウェ fi rmware. アを更新します。 1. Insert the CF card to the Card compartment with the 1. PMD580の電源をOFFにした状態で、 前準備したCFカー PMD580 turned off and close the door. The USB cable ドを...
  • Page 10 更新作業の実施 Updating procedures 1. To update the firmware, first press the Jog wheel with 1. ファ ー ムウェアを更 新 するときは、ディスプレ イに “Update? Yes” displayed. “Update? Yes” が表示されている状態で、 ジョグダイヤル を押してく ださい。 The following confirmation display appears. このとき、 以下の確認表示が表示されます。 • If the version of the fi rmware updating fi le is older than •...
  • Page 11 更新を終了し通常モードへの移行 Terminating updating and returning to the normal mode 1. ディスプレイに “Update? Yes” が表示されている状態 1. Turn right the Jog wheel one click with “Update? Yes” で、ジョグダイヤルを時計方向に 1 クリック回します。 displayed. “Update? No” appears on the display. ディスプレイが “Update? No” に変わります。 2. Press the Jog wheel. “Loading“ appears on the display, 2.
  • Page 12 ファームウェアのバージョン確認 Checking the fi rmware version In Stop mode, you can check the fi rmware version with “F/W 停止状態においてユーティリティメニューの“F/W version”に version” of the Utility menu. よりファームウェアバージョンを確認することができます。 1. Press both the MENU/STORE button and the SHIFT 1. 停 止 状 態において、 SHIFT ボタンを押しながら MENU/ button in Stop mode.

  • Page 13: Wiring Diagram

    5. WIRING DIAGRAM RS232C INTERFACE PCB(U)/ POWER SUPPLY PCB AUDIO REMO SPDIF DIGTAL DIGTAL AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO PARALLEL PCB(F) IN/OU IN BAL INTERFACE UNBAL UNBAL BAL-L BAL-L BAL-R BAL-R D-SUB W001 J701 ER SW 9IN(U) / JC03 TRANS: 15PIN(F) SELECTOR:...

  • Page 14: Block Diagram

    6. BLOCK DIAGRAM AUDIO AUDIO SELECTOR SELECTOR LC78211 LC78211(2/3) (1/3) XLR INPUT FLASH MEMORY SDRAM JS28F128P30T85 MT48LC64M4A2 ×2 INPUT VOLUME TC9459BFG ADDRESS BUFFER TC74LCX16244FT LINE INPUT CONNE CTOR CODEC DATA BUFFER CS4271 TC74LCX16245FT OUTPUT VOLUME/ATT LINE OUTPUT TC9459BFG CONTROLLER CONNE AUDIO CLOCK PROCESSOR ISP1582...

  • Page 15: Schematic Diagram

    7. SCHEMATIC DIAGRAM TPU01 TPU03 TPU05 TPU07 TPU09 TPU11 TPU13 TPU15 TPU17 TPU19 TPU44 P101 00MWI09CS1010 TP49 TPU02 TPU04 TPU06 TPU08 TPU10 TPU12 TPU14 TPU16 TPU18 TPU45 TO REAR PCB +5V PANEL TPF01 +3 3VD Q001 R450 R003 J014 NJM2387DL2 CPU AROUND POWER 22FMN BMTTN A TFT VOUT...
  • Page 16 (SDCLK=133MHz) 1SS301 +3 3VC R132 N17 XTALO RDLED RDLED D GND R016 GRLED R411 C045 Q022 X001 0 1u JS28F128P30T85(FOR PMD580) 14 7456MHZ Q105 (128MB_FLASH_MEMORY) TPF153 TPF154 B101 RS5C372A 20H 1 AD[1] 29 A1 DA[0] D GND AD[2] 25 A2...
  • Page 17 +3.3VC P101 00MWI09CS1010 +3.3VC KEY_ROW[0-3,5] KEY_COL[0-2,4] R431 RU55 R229 R303 R079 Q018 OPEN ES9315-CBZ-E1 KEY ROW[0] R17 ROW0 R022 R485 EGPIO/R1 REMOTE KEY ROW[1] U20 ROW1 R023 R486 EGPIO1 78211_STB KEY_ROW[2] T19 ROW2 R344 R487 EGPIO2 USB_CS- KEY_ROW[3] R18 ROW3 R025 R488 EGPIO3/TEN...
  • Page 18 +3 3VD +3 3VD CA[0 10] P101 00MWI09CS1010 AD2[0 10] AD2[0 10] CF CARD CONNECTOR CF_IN (EJECTOR:SCFB3A0300) Q122 Q159 AD2[0] CA[0] TC7SZ32F AD2[1] CA[1] AD2[2] CA[2] AD2[3] CA[3] +3 3VD VDD3 3V TPF56 TPF54 AD2[4] CA[4] D GND AD2[5] CA[5] +3 3VD AD2[6] CA[6]...
  • Page 19 P101 00MWI09CS1010 TPF85 TO_DISPLAY PCB TPF84 +5V_PANEL +3 3VD TPF95 J011 KEY_ROW[0 3,5] FH12 34S 0 5SV +5V_PANEL +3 3VD +5V_PANEL KEY_COL[0 2,4] +3 3VD Q005 SN74LV125APW +3 3VD C421 C166 L013 D_GND 0 1u 0 1u OPEN D_GND BLM18BD601SN1D KEY ROW[0] L017 R304...
  • Page 20 TPF209 TPF203 TPF204 +14V P201 00MWI09CS2010 TPF045 TPF228 XLR INPUT TPF229 RA17 CA09 TPF193 +14V RA09 RA03 4 7k 5 6k LA01 CA11 CA07 TPF305 TPF303 DA01 TPF192 CA27 0 1u BLM11B601 TPF258 47u/25 RA13 DAN202K CD43 I/O A UNIT 47u/25 TPF256 RA05...
  • Page 21 +3VU TPF949 P203 00MWI09CS2030 P202 00MWI09CS2020 TPF932 Q852 TPF934 TPF578 NJU3716AM-TE1 D-GND TPF935 I/O C UNIT PANEL UNIT D500 R898 13 DATA R509 TPF544 TLGU1002A(T02) TPF108 R899 14 CLK TO MAIN UNIT R900 15 STB# TPF528 R901 16 CLR# TO W015 Q500 R501 J011(MAIN UNIT)
  • Page 22 +3VU Q703 R727 TPF752 NJM2387DL2 0 1/10W VADJ 4 R729 CNT 2 D719 OPEN C721 R728 0.1u R730 TPF753 R732 C720 100k 10u/50 R731 R797 C724 L704 Q704 680u/35V TPF754 56uH BD9781HFP RJH-35V681MI6#-S1 CDRH127/LD TO W005 1 VIN ∼J001 C725 R736 D-GND R733...
  • Page 23 P302 00MWG09CS3020 -14V HP JACK UNIT +14V +14V C805 +14V ∼J506(I/O A UNIT) J800 C802 C801 S6B-PH-SM3 CON.BASE TO W004 R810 47u/25 47u/25 TPF801 R807 OPEN (MUTE_ON) L806 -14V BLM21PG221SN1D GND_A GND_A TPF802 C807 D801 L807 0.1u +14V R803 DAN202K BLM21PG221SN1D TPF803 L808...

  • Page 24: Parts Location

    8. PARTS LOCATION B101 D018 R057 R235 R421 P101 A C002 D025 R058 R236 R422 C004 D110 R060 R240 R423 C006 D118 R061 R245 R434 C007 J001 R062 R246 R435 C010 J004 R063 R247 R436 C011 J005 R065 R248 R448 C013 J007 R066...
  • Page 25 P101 B C001 G6 CU35 B5 R099 F3 R305 D2 R469 B9 C003 D2 CU36 B5 R100 F3 R306 D5 R474 G4 C005 F7 CU38 B4 R101 F3 R307 D2 R475 G3 C008 D1 CU39 B5 R102 F3 R308 F2 R479 B9 C009 B9 CU40 B5...
  • Page 26 BD04 CB15 P201 A BD05 CB16 BD08 CB17 CA01 CB18 CA02 CB19 CA03 CB20 CA04 CB21 CA05 CB22 CA06 CB23 CA07 CB24 CA08 CB25 CA09 CB26 CA10 CB27 CA11 CB28 CA12 CB29 CA13 CB30 CA14 CB31 CA15 CB32 CA16 CB33 CA17 CB34 CA18...
  • Page 27 P201 B 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 28 P202 A P202 B C850 A5 C866 B7 D862 B14 D878 B14 R855 A6 R871 B13 R887 B14 R903 A9 C851 A5 C867 B8 D863 A13 D879 A11 R856 A6 R872 B14 R888 B14 R904 A9 C852 A5 C868 B7 D864 A14 D880 A11 R857 A6...
  • Page 29 P203 A P203 B C500 B3 C511 C1 C527 C3 R500 B3 R514 B1 C501 B3 C512 C2 D500 B2 R501 B2 R515 A1 C502 C3 C513 C2 J501 A1 R502 A2 R516 A1 C503 B2 C514 B2 J502 A2 R503 B2 R517 A1 C504 B3...
  • Page 30 P301 A BD02 F6 D720 A2 R736 C9 BD03 D6 G700 C1 R737 C9 BD06 B6 J701 B1 R738 C9 BD07 D6 J702 A8 R739 B10 C700 C2 J703 A4 R740 A3 C701 D1 J704 F6 R741 C10 C702 E1 J705 F1 R742 B10 C703 G1...
  • Page 31 P301 B 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 32 P302 A P302 B BD01 A1 C813 C1 L806 B2 R805 C2 R818 C1 C801 B1 C814 C1 L807 B2 R806 C2 R819 C1 C802 B2 C815 C1 L808 B2 R807 C2 R820 C1 C803 D2 C816 C1 L810 B2 R808 C2 R822 C1 C804 D2...
  • Page 33 P303 A P303 B C650 A1 D662 B2 C651 A1 J651 B3 C652 A2 J652 A1 C653 A2 R654 A2 C654 B2 R655 A2 C655 B2 R657 A1 D652 A2 R658 A2 D653 A2 R659 A2 D655 A2 R660 A1 D656 A2 R661 A1 D657 A2...

  • Page 34: Exploded View And Parts List

    9. EXPLODED VIEW AND PARTS LIST 5128 ø 3x8(U) 022D(U) 020D 5110 5110 ø 3x6(A) ø 3x6(A) 5110 001L ø 3x6(A) 002L 5301 5126 5110 ø 3x8(U) 006D ø 3x6(A) 5203(U,N) 5110 ø 3x6(A) 5110 ø 3x6(A) 5126 ø 3x8(U) 004D 002D 5101...

  • Page 35: Packing And Parts List

    10. PACKING AND PARTS LIST VERS. POS. NO. PART NO. PART NAME DESCRIPTION COLOR 006B 00M238H355020 LENS LENS ACCESS LED 002T 008B 00M204N122110 ADHESIVE ADHESIVE FOR LENS 010B 00M09CS105022 FRONT CHASSIS FRONT INNER CHASSIS 014B 00M43BS160010 HP BRACKET HP BRACKET FOR HP PWB 004T 018B 00M43BS154220...

  • Page 37: Ic Data

    11. IC DATA 78Q2120 PACKAGE PIN DESIGNATIONS (TOP VIEW) AT24C16B PIN CONFIGURATION 8-LEAD SOIC Pin Name Function A0 - A2 No Connect Serial Data Serial Clock Input Write Protect Ground Power Supply...
  • Page 38 CS4271 2.5 V to 5 V 3.3 V to 5 V Hardware or Left and Internal Voltage Internal External C/SPI Right Mute Reference Oscillator Mute Control Control Data Controls Register / Hardware Configuration Reset Selectable Left Volume Switched Capacitor ΔΣ Modulator Interpolation Differential Control...
  • Page 39 CS8420 VA+ AGND FILT RERR RMCK VD+ DGND ILRCK OLRCK Serial Sample Serial ISCLK OSCLK Audio Rate Audio Input Converter Output SDIN SDOUT Clock & AES3 C & U bit AES3 Receiver Driver Data S/PDIF Data S/PDIF Recovery Decoder Buffer Encoder Control Output...
  • Page 40 EP9315 PIN BGA PINOUT...
  • Page 41 ISP1582 BLOCK DIAGRAM 12 MHz DREQ DIOR to or from USB DACK DIOW XTAL1 XTAL2 3.3 V ISP1582 1.5 kΩ HANDLER INTERFACE SoftConnect 30 to 33, 35 to 40, RREF 42 to 47 HI-SPEED USB MEMORY NXP SIE/PIE DATA TRANSCEIVER MANAGEMENT [ 15:0 ] REGISTERS...
  • Page 42 JS28F128P30 56-LEAD TSOP PINOUT (64/128/256-MBIT) WAIT A 16 A 17 DQ15 DQ14 DQ13 DQ12 ADV# Intel StrataFlash ® Embedded Memory (P 30) RST# 56-Lead TSOP Pinout DQ11 14 mm x 20 mm DQ10 Top View VCCQ OE # Notes: A1 is the least significant address bit. A23 is valid for 128-Mbit densities and above;...
  • Page 43 MT48LC64M4A2 Pin Assignment (Top View) 54-Pin TSOP DQ15 VssQ DQ14 DQ13 VssQ DQ12 DQ11 VssQ DQ10 VssQ DQML DQMH CAS# RAS# Note: The # symbol indicates signal is active LOW. A dash (–) indicates x8 and x4 pin function is same as x16 pin function.
  • Page 44 SN65LVDM179 (TOP VIEW) FUNCTION TABLE Receiver INPUTS OUTPUT Open H = "H" Level, L = "L" Level, ? = indeterminate Driver INPUT OUTPUTS Open H = "H" Level, L = "L" Level SN65LVDS3487 (TOP VIEW) LOGIC DIAGRAM 1,2EN 1,2EN 3,4EN 3,4EN...
  • Page 45 SN74LV04A FUNCTION TABLE H : High Level L : Low Level SN74LV125A (TOP VIEW) LOGIC DIAGRAM (POSITIVE LOGIC)
  • Page 46 SN74LV138A (TOP VIEW) FUNCTION TABLE ENABLE INPUTS SELECT INPUTS OUTPUTS SN74LV244A FUNCTION TABLE H : High Level L : Low Level X : Don't care Z : High impedance...
  • Page 47 SN74LV273A (TOP VIEW) FUNCTION TABLE H : High Level L : Low Level X : Don't care SN74LV541A (TOP VIEW) FUNCTION TABLE (each buffer/driver) INPUTS OUTPUT OUTPUT LOGIC DIAGRAM (POSITIVE LOGIC) To Seven Other Channels...
  • Page 48 TC74HCU04A 16244 (TOP VIEW) 1A1-1A4 1Y1-1Y4 3Y1-3Y4 3A1-3A4 2A1-2A4 2Y1-2Y4 4Y1-4Y4 4A1-4A4 2Y3 11...
  • Page 49 TC74LCX16245 (TOP VIEW) 1DIR 2DIR 1DIR 1B7 11 2DIR...
  • Page 50 TC9459BFG (TOP VIEW) BLOCK DIAGRAM Same as L-ch Lch 7 to 91 decoder Rch 7 to 91 decoder Lch latch circuit Rch latch circuit Shift register (24 bit) Level shift circuit...
  • Page 51 uPD4721 EC11B15242AE...
  • Page 52 NJU3716A BLOCK DIAGRAM SHIFT LATCH REGISTER CIRCUIT CONTROL CIRCUIT...
  • Page 53 RCU7276Y-B BLOCK DIAGRAM PIN CONFIGURATION Backlight Power Supply LCD Connector Connector Pin No. Signal Pin No. Name...
  • Page 54 CR2032 (SANYO) The exchange of the battery (IEC60065, UL60065). 電池 (IEC60065, UL60065) の交換について CAUTION 注意 Danger of explosion if battery is incorrectly replaced. 電池を誤って交換すると爆発する危険があります。 Replace only with the same or equivalent type. 同一又は同等の型のものにのみ交換してください。...

  • Page 55: Electrical Parts List

    12. ELECTRICAL PARTS LIST PARTS INFORMATION ABBREVIATION AND MARKS ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL : HEADPHONE MIC. : MICROPHONE μ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR : SPEAKER : SWITCH TRANSF.
  • Page 56 D016 00MHZ30012060 NSAD500F SURGE ABSORBER P101 D018 00D2760833900 ESD PROTECTOR(6802) P101 D019 00D2760833900 ESD PROTECTOR(6802) P101 D023 00D2760833900 ESD PROTECTOR(6802) P101 D024 00D2760833900 ESD PROTECTOR(6802) NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 57 BLM11B601S CHIP FERRITE P101 L112 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE P101 L113 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE P101 L120 00MFC90020110 BLM18BD601SN1D P101 L151 00MFN21010060 DLW21SN900SQ2L DLW21SN900SQ2L NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 58 00MBA10012210 DTA114TU (ROHM) 0 Ω ± 5% 1/10W P101 R003 00MNI05000110 0Ω ±5% 1/10W 4.7 Ω ± 5% 1/10W P101 R007 00MNI05047110 4.7Ω ±5% 1/10W NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 59 47 µF M 25V RA-2 P201 CA89 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2 P201 CA90 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 60 DAP202KT146 P201 DB03 00D2760560901 DAN202KT146 P201 DB04 00D2760559909 DAP202KT146 P201 DB05 00D2760560901 DAN202KT146 P201 DB06 00D2760559909 DAP202KT146 P201 DB07 00D2760559909 DAP202KT146 P201 DB08 00D2760559909 DAP202KT146 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 61 00MFN21020040 DLP11SN161SL2 COMMON MODE CHOKE COILS P201 LC03 00MFC90020110 BLM18BD601SN1D P201 LC04 00MFC90020110 BLM18BD601SN1D P201 LD01 00MTP41042010 PULS TRANS FOR CD PULS TRANS FOR CD NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 62 SN65LVDS179DGK-EL2 +REF P201 QD02 00MHC700400Z0 CMOS 74HCU04 FLAT TAPING P201 QD03 00MHC10022370 SN65LVD3487D P201 QD04 00MHC10019880 CS8420-CSZR P201 QD05 00MHC12271990 CS4271-CZZR CODEC P201 QD06 00D2622785905 SN74LV125APWRG4 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 63 0Ω ±5% 1/10W 0 Ω 1/10W ± 5% P201 RZ43 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5% P201 RZ44 00MNI05000110 0Ω ±5% 1/10W NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 64 RS232C INTERFACE PCB ASSY P203 C500 00MOA47505020 4.7µF M 50V RA-2 P203 C502 00MOA47505020 4.7µF M 50V RA-2 P203 C508 00MOA47505020 4.7µF M 50V RA-2 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 65 33µF M 25V RA-2 P301 C741 00MEF56703526 RJH-35V561MI5#-S1 P301 C743 00MOA10602520 10µF M 25V RA-2 P301 C744 00MEF56703526 RJH-35V561MI5#-S1 P301 C746 00MOA10602520 10µF M 25V RA-2 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 66 P301 Q707 00D2690082902 DTC114EKT96 P301 Q708 00MHX341161C0 2SC4116GR P301 Q709 00MHS43BSN01F UPD78F9222(DNC640) P301 Q710 00D2690082902 DTC114EKT96 P301 Q711 00D2690082902 DTC114EKT96 P301 Q712 00D2622785905 SN74LV125APWRG4 +C NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 67 L810 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER P302 L811 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER P302 Q801 00MHC10045090 NJM4556AM-TE1 P302 Q802 00D2730414906 2SC3326(A/B) P302 Q803 00D2730414906 2SC3326(A/B) NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 68 D660 00D2760559909 DAP202KT146 DAP202K P303 D661 00D2760559909 DAP202KT146 DAP202K P303 D662 00D2760559909 DAP202KT146 DAP202K P303 J651 00MYJ90001550 YKF42-8524N P303 J652 00MYJ07014200 14P FFC CONNECTOR FMN-BMTTN-TP NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
