Summary of Contents for Motion Concepts matrx

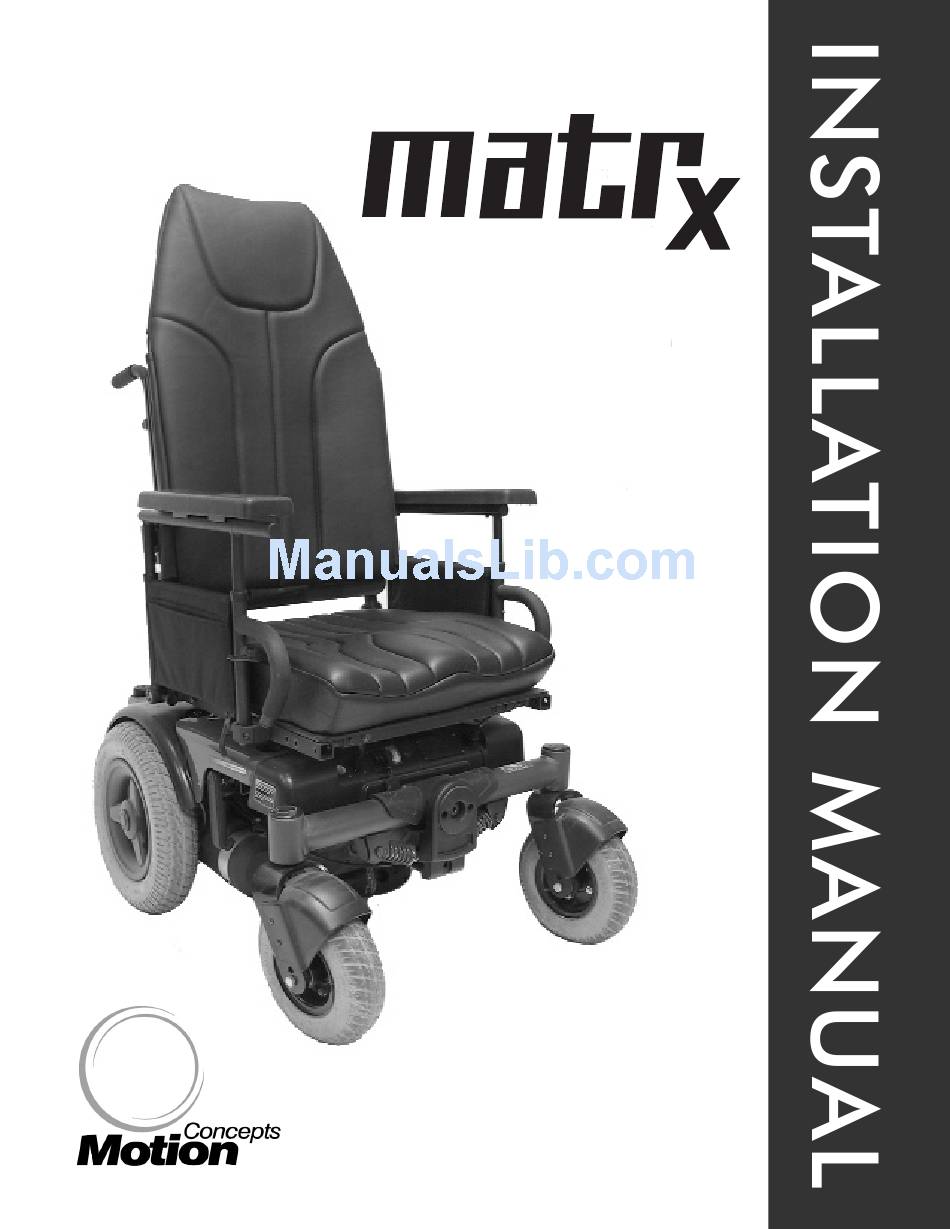

- Page 1 H I G H B A C K TRD0227- MaTRx High Back Installation Manual- August 28, 2009...
- Page 2 - 2 -...
- Page 3 - 3 - Table of Contents: 1.0 Hardware Kit and Sizing Information 2.0 Tools Required 3.0 Back Mounting Bracket Installation 4.0 Clamping Plate/ High Back Installation...
- Page 4 - 4 - IMPORTANT! The MaTRx High Back and installation hardware provided by Motion Concepts is intended for use with tilt-only wheelchair systems. Due to the varying diameters of wheelchair backcanes, three unique hardware mounting kits have been developed to allow proper mounting onto 1” dia., 7/8” dia., or 1” and 7/8” combined backcanes.
- Page 5 Installa tion Kits The MaTRx High Back is designed to accomodate Lateral Supports, if desired. A separate Lateral Installation Kit may be ordered through our Customer Service Department. Each Lateral Kit will include two Lateral Multi-Rails, the two Swing-Away Laterals (size/configuration to be specified on order form), all associated mounting hardware.
- Page 6 & the backpan prior to final installation. 3 Place the MaTRx High Back (with mounting brackets) onto the wheelchair back canes, using the spacer blocks and additional clamps (if necessary) to hold the back pan in place. Complete any fine tune adjustments to the mounting bracket position and fully tighten hardware to secure all four brackets in place.
- Page 7 Clamping Plate Installation Instructions: 1. Begin by installing one clamping plate onto a mounting bracket on either side of the MaTRx High Back. (note: the second clamping plate should be installed directly opposite the first) 2. Insert the metal tab from the clamping plate into the notch/slot at the end of the mounting bracket (as illustrated in Figure 3.
- Page 8 ARRANTY ARRANTY Every MaTRx High Back is carefully inspected and tested to provide optimum performance. Each back is guaranteed to be free from defects for a period of 24 months from the date purchase provided normal use. Should a defect in materials or workmanship occur within 24 months of the original date of purchase, Motion Concepts will, at its option, repair or replace it free of charge.
