VIVOTEK

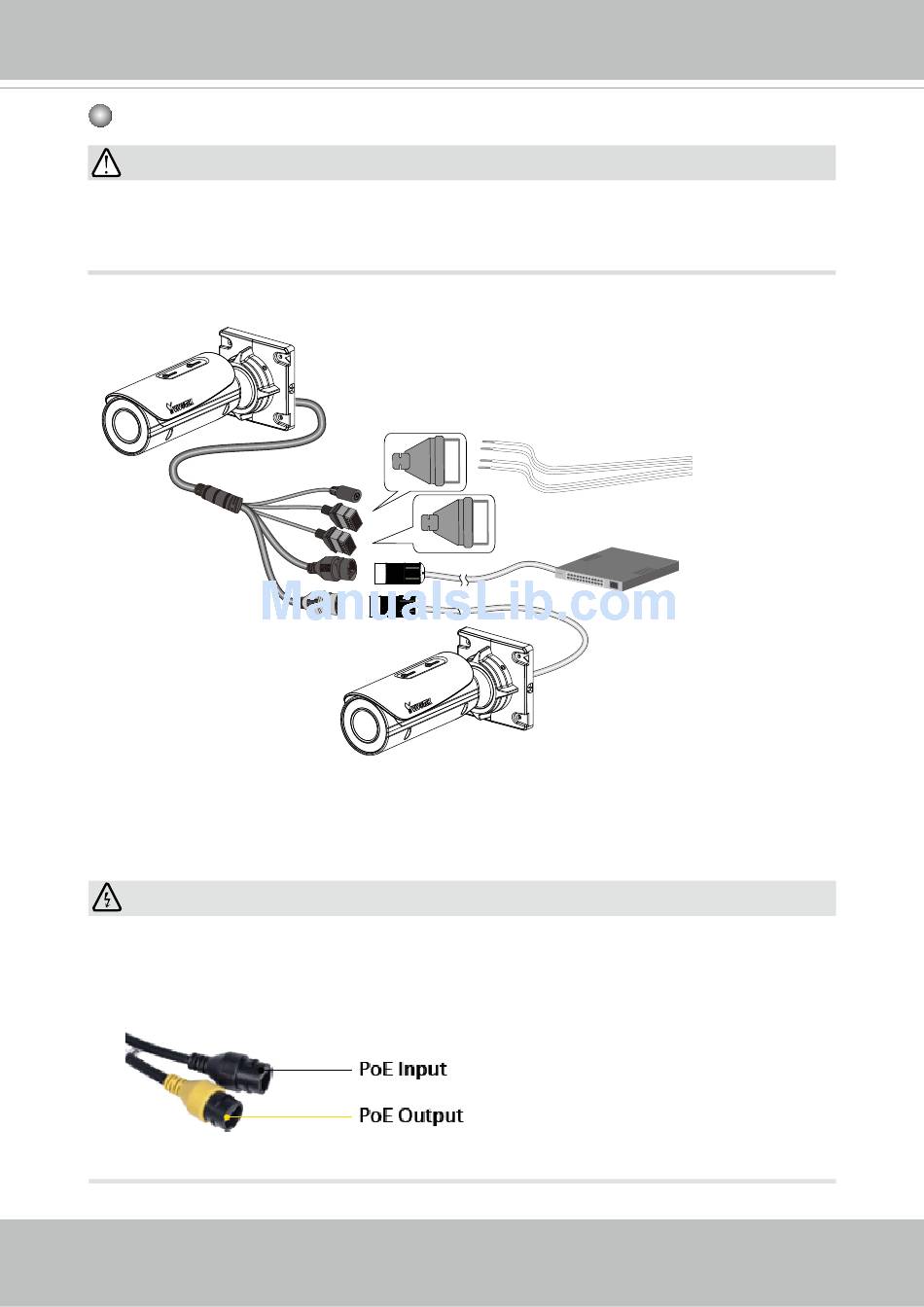

Connectors
IMPORTANT:
• The "E" models, e.g., IB8382-ET, IB836B-EHT, do not support PoE cascade
connections due to its high power consumption. The "E" models come with embedded
heater for low temperature environments.
Ethernet 10/100 RJ45 Plug
The second LAN port (PoE out, yellow) is available on the IB836B-HRT, IB836B-HRF3,
and IB8382-RF3. The R models come without the DC connector.
WARNING:
The yellow LAN port (PoE output) can only be used to connect to another IB836B/8382
camera. Please do not connect the yellow LAN port to a PC or switch LAN port. The high
voltage can damage the LAN port circuits.
6 - User's Manual
R model, e.g., IB836B-HRT.
Au+
Au-
MIC P
MIC N
DO+
DO-
DI+
DI-
General I/O Terminal Block
