User Manual

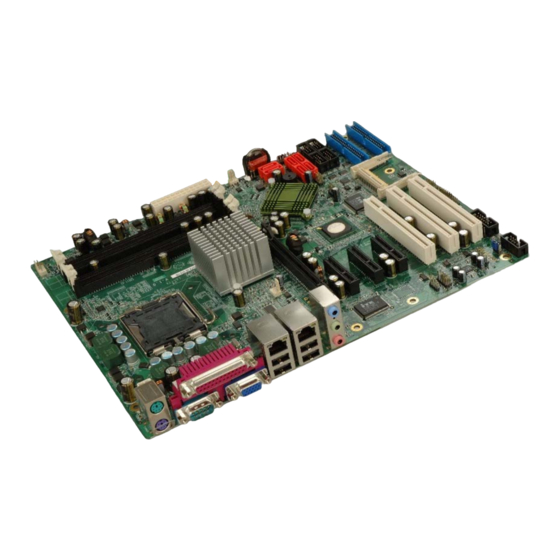

ATX Form Factor with Intel® Core 2 Quad/Duo, Pentium®
D/Pentium® 4, Celeron D CPU FSB 533/800/1066MHz,
VGA, Dual Channel DDR2, LPT, 6 x SATA II,8 x USB2.0 and
6 x COM
Quick Installation Guide
Package Contents
IMBA-X9654 package includes the following items:
1 x IMBA-X9654 industrial motherboard
2 x IDE Cable
6 x SATA Cable
3 x SATA Power Cable
1 x Dual RS-232 Cable
1 x RS-232 Cable
1 x I/O Shielding
10 x mini jumper pack
1 x Utility CD
1 x QIG (Quick Installation Guide)
©2006 Copyright by IEI Technology corp.
IMBA-X9654
Version 1.02
July 17, 2007
All rights reserved.
1
Advertisement
Table of Contents
Related Manuals for IEI Technology IMBA-X9654
Summary of Contents for IEI Technology IMBA-X9654
-
Page 1: Quick Installation Guide
IMBA-X9654 Quick Installation Guide Version 1.02 July 17, 2007 Package Contents IMBA-X9654 package includes the following items: 1 x IMBA-X9654 industrial motherboard 2 x IDE Cable 6 x SATA Cable 3 x SATA Power Cable 1 x Dual RS-232 Cable... -
Page 2: Specifications
Specifications CPU: LGA 775 Intel® Core 2 Quad/Duo, Pentium® 4/D, Celeron D processor, FSB 533/800/1066MHz System Chipset: Intel® Q965 + ICH8DO BIOS : AMI BIOS Label System memory: 4 x 240-pin Dual channel DDR2 533/667/800MHz up to 8GB Ethernet: Dual Broadcom BCM5787M for PCI express GbE (LAN1 with ASF2.0 remote control support) I/O Interface: 8 x USB 2.0... -
Page 3: Ordering Information
Humidity: Operation: 5% ~ 95% non-condensing Dimension: 305(L) mm x 244(W) mm Weight: GW: 1350g; NW: 750g Ordering Information IMBA-X9654-R10 ATX Motherboard with Intel® LGA 775, Core 2 Quad/Duo, Pentium® D/4, Celeron® D processor FSB 533/800/1066MHz, PCIe GbE, SATA II and Audio... - Page 4 CN1: SPDIF Connector Description Description SPDIF OUT SPDIF IN CN3: Front Panel Audio Connector (2.54mm) Description Description MIC (L) MIC (R) +5V/ICH_GPI19 LINE OUT(R) PULL DOWN LINE OUT SENSE LINE OUT(L) PULL DOWN CN4: SPI Flash Connector Description Description SPI VCC CLOCK TPM1: TPM Connector Description...
- Page 5 IO_FAN2 : CPU Fan IR1: IrDA Connector Connector Description Description +12V IR-RX Rotation Signal Control IR-TX IO_FAN1, IO_FAN3 : SYSTEM Fan Connector Description +12V Rotation Signal IDE1, IDE2 : Primary, Secondary IDE Interface Connector Description Description RESET# DATA 7 DATA 8 DATA 6 DATA 9 DATA 5...
- Page 6 COM3~6: Serial Port 2 x 5 Box Header Connector Description Description COM2: Serial Port 2 x 7 Pin Header Connector Description Description USB1, USB2: 8 PIN Header USB Connectors Description Description USB POWER DATA- DATA+ DATA+ DATA- USB POWER DIO1: Digital Input / Output Description Description Input0...
-
Page 7: Board Layout: Jumper And Connector Locations
Board Layout: Jumper and Connector Locations...
