D-Link DWL-8200AP Install Manual

Managed dualband access point
Hide thumbs Also See for DWL-8200AP:
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual See also: User Manual, Manual

Install Guide

DWL-8200AP
Managed Dualband Access Point

Advertisement

Table of Contents
loading

Related Manuals for D-Link DWL-8200AP

Summary of Contents for D-Link DWL-8200AP

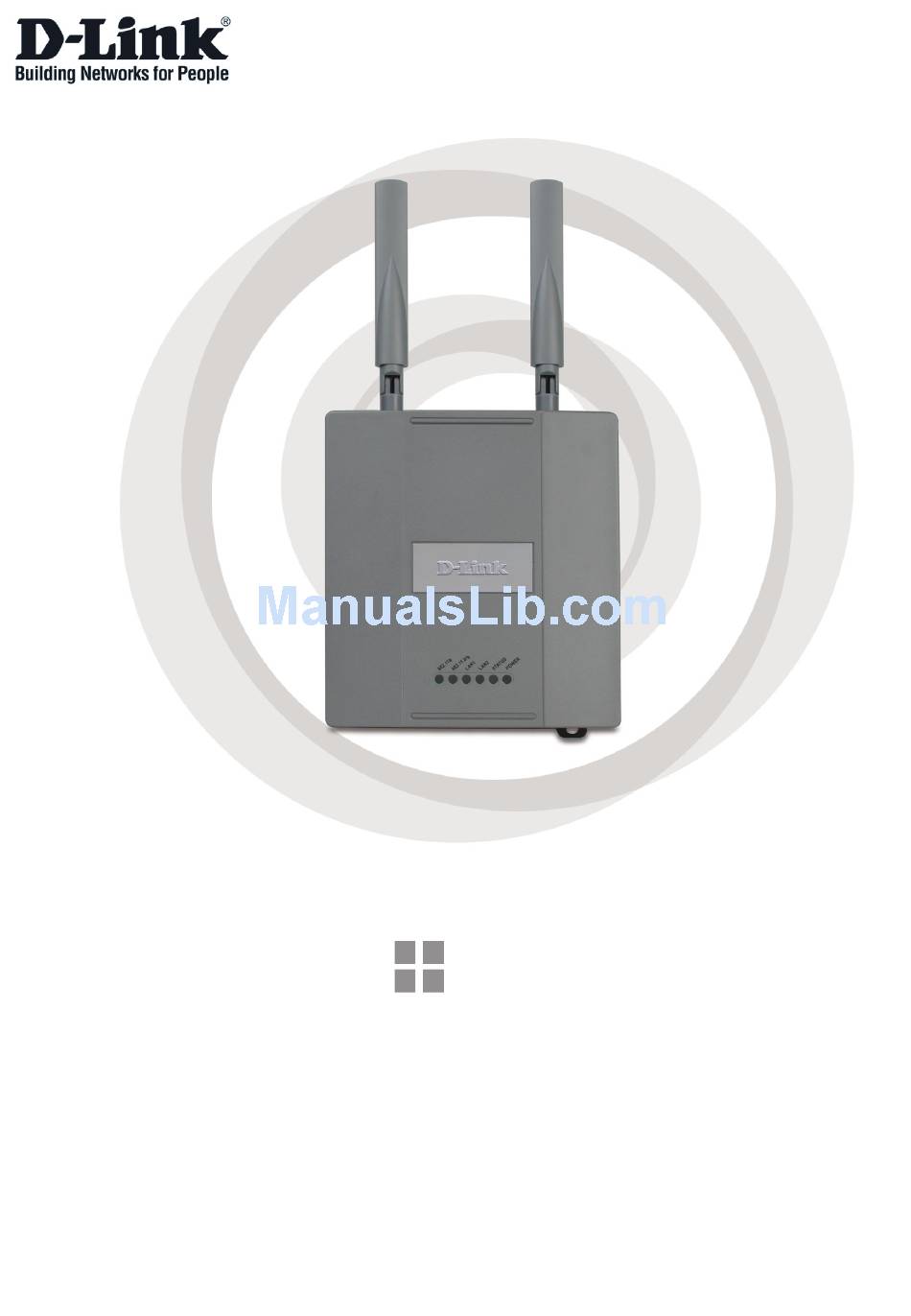

  • Page 1: Install Guide

    Install Guide DWL-8200AP Managed Dualband Access Point...

  • Page 2: System Requirements

    ® ® • Installed Ethernet Adapter • Internet Explorer version 6.0 or Netscape Navigator version 7.0 and ™ above Package Contents CD-ROM with Manual DWL-8200AP Managed Dualband Access Point Mounting Plate Power over Ethernet base unit Power Cord Power Adapter-DC 48V, 0.4A Ethernet Cable (CAT5 UTP/Straight Through) Note: Using a power supply with a different voltage than the one included with the DWL-8200AP will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller.

  • Page 3: Installing The Hardware

    Installing the Hardware Antennas Power Cord socket LAN 2 Reset LAN 1 (PoE)
  • Page 4 Step 1 Connect one end of an Ethernet cable (included with your package) to the LAN 1 (PoE) port on the DWL-8200AP, and the other end of the Ethernet cable to the port labeled P+DATA OUT on the PoE base unit. Step 2 Connect another Ethernet cable from the DATA IN port on the PoE base unit to your router/switch or to a PC. DWL-8200AP Step3 P+DATA Line1(PoE) Step1 DATA Step2 Computer Router or Switch (Straight Through Cable) (Straight Through Cable) Step 3 Attach the power adapter to the connector labeled POWER IN on the PoE base unit. Attach the power cord to the power adapter and into an electrical outlet.
  • Page 5 Mounting Plate Assembly Step 1: Insert provided wall anchors in the wall where the mounting plate will be attached. Step 2: Use the provided screws to secure the mounting plate on the wall.
  • Page 6 Step 3: Attach the remaining screws securely to the back of the DWL-8200AP. Step 4: Attach the DWL-8200AP to the mounting plate.
  • Page 7 Step 5: Slide the DWL-8200AP down into the grooves on the mounting plate to secure it to the plate.
  • Page 8 Your Setup is Complete When you have completed the steps in this Installation Guide and configured your for your network, your network should look similar to this: * Maximum Wireless signal rate derived from IEEE Standard 802.11a and 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual data throughput rate.

  • Page 9: Technical Support

    Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers in Australia: Tel: 1300-766-868 24/7(24Hrs, 7days a week) technical support http://www.dlink.com.au e-mail: support@dlink.com.au India: Tel: 1800-222-002 9.00 AM to 9.00 PM. All days http://www.dlink.co.in/support/productsupport.aspx Indonesia, Malaysia, Singapore and Thailand: Tel: +62-21-5731610 (Indonesia) Tel: 1800-882-880 (Malaysia) Tel: +65 6501 4200 (Singapore) Tel: +66-2-719-8978/9 (Thailand) 24/7, for English Support Only http://www.dlink.com.sg/support/ e-mail: support@dlink.com.sg Korea: Tel: +82-2-2028-1815 Monday to Friday 9:00am to 6:00pm http://www.d-link.co.kr e-mail: arthur@d-link.co.kr New Zealand:...
  • Page 10 Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers in Egypt: Tel: +202-2919035 or +202-2919047 Sunday to Thursday 9:00am to 5:00pm http://support.dlink-me.com Email: support.eg@dlink-me.com Iran: Te: +98-21-88880918,19 Saturday to Thursday 9:00am to 5:00pm http://support.dlink-me.com Email : support.ir@dlink-me.com & support@dlink.ir Israel: Magshimim 20 St., Matalon center, Petach Tikva, Israel 49348 Consumer support line: 03-9212886 Business support line: 03-9212608 Pakistan: Tel: +92-21-4548158 or +92-21-4548310 Monday to Friday 10:00am to 6:00pm http://support.dlink-me.com E-mail: zkashif@dlink-me.com South Africa and Sub Sahara Region: Tel: +27-12-665-2165 08600 DLINK (for South Africa only) Monday to Friday 8:30am to 9:00pm South Africa Time http://www.d-link.co.za Turkey: Tel: +90-212-2895659 Monday to Friday 9:00am to 6:00pm http://www.dlink.com.tr...

  • Page 11: Руководство По Установке

    Руководство по установке DWL-8200AP управляемая двухдиапазонная точка доступа...

  • Page 12: Системные Требования

    , Macintosh , или Linux • Установленный Ethernet-адаптер. Internet Explorer версии 6.0 или ™ Netscape Navigator версии 7.0 или выше Содержимое комплекта поставки: CD-ROM, содержащий руководство пользователя DWL-8200AP управляемая двухдиапазонная точка доступа Монтажная пластина Базовый блок Power over Ethernet Шнур питания Адаптер питания 48В Кабель Ethernet переменного тока, 0,4 А (UTP категории 5/ прямой) Использование источника питания с другими характеристиками может...

  • Page 13: Установка Устройства

    Установка устройства Антенны Разъем для шнура LAN 2 питания Сброс настроек LAN 1 (PoE - питание через Ethernet)
  • Page 14 Шаг 1 Подключите один конец кабеля Ethernet (входит в комплект поставки) к порту LAN 1 (PoE ) устройства DWL-8200AP, а другой конец Ethernet- кабеля к порту P+DATA OUT базового блока PoE. Шаг 2 Подключите другой Ethernet-кабель от порта DATA IN базового блока PoE к маршрутизатору, коммутатору или к компьютеру. DWL-8200AP Step3 P+DATA Line1(PoE) Step1 DATA Step2 Computer Router or Switch (Straight Through Cable) (Straight Through Cable) Шаг 3 Подключите адаптер питания к разъему, обозначенному как POWER IN на базовом блоке PoE. Подключите шнур питания к блоку питания и к сети переменного тока.
  • Page 15 Использование Мастера установки Шаг 1: Забейте дюбели в стену, где будет установлена крепежная пластина. Шаг 2: С помощью болтов, входящих в поставку, прикрепите крепежную пластину к стене.
  • Page 16 Шаг 3: Оставшиеся болты надежно закрепите к задней панели DWL- 8200AP. Шаг 4: Закрепите DWL-8200AP к крепежной плате.
  • Page 17 Шаг 5: Плавно направьте DWL-8200AP вниз в пазы на крепежной плате для безопасности этой платы.
  • Page 18 Установка завершена! When you have completed the steps in this Installation Guide and configured your for your network, your network should look similar to this: *Максимальная скорость беспроводного соединения определена спецификациями стандартов IEEE 802.11a и 802.11g. Реальная пропускная способность будет другой. Условия, в которых работает сеть, а так же факторы окружающей среды, включая объем сетевого трафика, устройство зданий и материалы, из которых они состоят, а так же потери пакетов в сети снижают ее пропускную способность.

  • Page 19: Техническая Поддержка

    Техническая поддержка Обновления программного обеспечения и документация доступны на Интернет-сайте D-Link. D-Link предоставляет бесплатную поддержку для клиентов в течение гарантийного срока. Клиенты могут обратиться в группу технической поддержки D-Link по телефону или через Интернет. Техническая поддержка D-Link: +7(495) 744-00-99 Техническая поддержка через Интернет http://www.dlink.ru e-mail: support@dlink.ru...
  • Page 20 Notes...

  • Page 21: Guía De Instalación

    Guía de instalación DWL-8200AP Managed Dualband Access Point...

  • Page 22: Requerimientos Del Sistema

    , Macintosh , o Linux • Interfaz Ethernet ™ • Internet Explorer versión 6.0 o Netscape Navigator versión 7.0 o superior Contenido del Paquete CD-ROM con Manual DWL-8200AP Managed Dualband Access Point Placa de Montaje Cable de Energía Unidad Power over Ethernet Fuente de Poder DC -48V, 0,4A. Cable Ethernet (CAT5 UTP) Usar una fuente de poder con un voltaje diferente dañará el producto, anulándose la garantía.
  • Page 23 Instalando el equipo Antenas Enchufe cable de LAN 2 energía LAN 1 (PoE) Reset...
  • Page 24 Paso 1 Conecte uno de los extremos del cable Ethernet (incluido con su paquete) a la puerta LAN 1 (PoE) del DWL-8200AP, y el otro extremo a la puerta etiquetada P+DATA OUT en la unidad PoE. Paso 2 Conecte otro cable Ethernet desde la puerta DATA IN de la unidad PoE a un router/switch o a un PC. DWL-8200AP Step3 P+DATA Line1(PoE) Step1 DATA Step2 Computer Router or Switch (Straight Through Cable) (Straight Through Cable) Paso 3 Conecte la fuente de poder al conector etiquetado POWER IN en la unidad PoE. Enchufe el cable de energía a la fuente de poder y a la toma eléctrica.
  • Page 25 Mounting Plate Assembly Paso 1: Inserte los sujetadores de pared proporcionados, en la pared a la cual la placa de montaje será montada. Paso 2: Utilice los tornillos proporcionados, para asegurar la placa de montaje en la pared...
  • Page 26 Paso 3: Ajuste firmemente los tornillos a la parte trasera del DWL-8200AP Paso 4: Ajuste el DWL-8200AP a la placa de montaje...
  • Page 27 Paso 5: Deslice el DWL-8200AP a través de las ranuras de la placa de montaje para asegurarlo en la placa...
  • Page 28 La configuración ha finalizado! When you have completed the steps in this Installation Guide and configured your for your network, your network should look similar to this: * La tasa Máxima de la señal Inalámbrica es obtenida de las especificaciones de los estándares IEEE 802.11a y 802.11g. La tasa de transferencia real puede variar. Las condiciones de red y factores ambientales, incluyendo el volumen del tráfico de red, materiales de construcción y redes saturadas, disminuyen la tasa de transferencia real.

  • Page 29: Soporte Técnico

    Costa Rica 0800 - 0521478 Lunes a Viernes 05:00am a 18:00pm Ecuador 1800 - 035465 Lunes a Viernes 06:00am a 19:00pm El Salvador 800 - 6335 Lunes a Viernes 05:00am a 18:00pm Guatemala 1800 - 8350255 Lunes a Viernes 05:00am a 18:00pm México 01800 - 1233201 Lunes a Viernes 06:00am a 19:00pm Panamá 011 008000525465 Lunes a Viernes 05:00am a 18:00pm Perú 0800 - 00968 Lunes a Viernes 06:00am a 19:00pm República Dominicana 18887515478 Lunes a Viernes 05:00am a 18:00pm Venezuela 0800 - 1005767 Lunes a Viernes 06:30am a 19:30pm Soporte Técnico de D-Link a través de Internet www.dlinkla.com e-mail: soporte@dlinkla.com & consultas@dlinkla.com...
  • Page 30 Notes...

  • Page 31: Guia De Instalação

    Guia de Instalação DWL-8200AP Access Point Dual Band Gerenciável...

  • Page 32: Requisitos De Sistema

    ™ Navigator 7.0 ou superior Conteúdo da Embalagem CD-ROM com Manual Access Point Dual Band Gerenciável DWL-8200AP Placa de Montagem Unidade base Power over Ethernet Cabo de Energia Adaptador de Energia - DC 48V, 0.4A Cabo Ethernet ( CAT5 UTP ) Usar um adaptador de energia com a voltagem diferente, poderá danificar o produto e violar a garantia.
  • Page 33 Instalando o Hardware Antenas Ligação do cabo de LAN 2 energia Reset LAN 1 (PoE)
  • Page 34 Passo 1 Conecte uma extremidade do cabo Ethernet (incluído com o seu pacote) na porta LAN 1 (PoE) no DWL-8200AP, e a outra extremidade do cabo, na porta descrita P+DATA OUT na base da unidade PoE. Passo 2 Conecte outro cabo Ethernet na porta DATA IN na base da unidade PoE para o seu router/switch ou para o PC. DWL-8200AP Step3 P+DATA Line1(PoE) Step1 DATA Step2 Computer Router or Switch (Straight Through Cable) (Straight Through Cable) Passo 3 Conecte o adaptador de energia na porta POWER IN na base da unidade PoE. Conecte a outra extremidade do cabo em uma tomada na parede ou a um estabilizador.
  • Page 35 Mounting Plate Assembly Passo 1: Insira as buchas na parede no local onde será fixado o access point. Passo 2: Utilize os parafusos fornecidos para fixação na parede.
  • Page 36 Passo 3: Coloque os parafusos na parte traseira do DWL-8200AP. Passo 4: Parafuse o DWL-8200AP ao suporte de montagem.
  • Page 37 Passo 5: Deslize o DWL-8200AP para baixo até que o suporte de montagem fique encaixado com segurança.
  • Page 38 Sua Configuração está Concluída! When you have completed the steps in this Installation Guide and configured your for your network, your network should look similar to this: * A taxa máxima do sinal Wireless atende os padrões IEEE 802.11a e 802.11g. Os dados de largura de banda poderão variar. As condições da rede e fatores do ambiente, incluindo volume do tráfego de rede, materiais usados na construção, e o tráfego excessivo na largura de banda da rede, podem fazer com que o sinal tenha variações.

  • Page 39: Suporte Técnico

    Suporte Técnico Você pode encontrar atualizações de software e documentação de usuário no site da D-Link Brasil. A D-Link fornece suporte técnico gratuito para clientes no Brasil durante o período de vigência da garantia deste produto. Suporte Técnico para clientes no Brasil: Horários de atendimento: Segunda à Sexta-feira, das 8:00h às 21:00h, Sábado, das 8:00h às 20:00h Website para suporte: www.dlink.com.br/suporte e-mail: suporte@dlink.com.br Telefones para contato: Clientes de São Paulo: 2185-9301 Clientes das demais regiões: 0800 70-24-104...
  • Page 40 Notes...
  • Page 41 安裝手冊 DWL-8200AP 可網管 雙頻無線基地台...
  • Page 42 • 安裝有 Windows , Macintosh , or Linux-based 作業系統之電腦 ™ • 安裝網路卡與Internet Explorer version 6.0 或Netscape Navigator version 7.0 ,或更新版本之瀏覽器 包裝清單 光碟 (內含 設備使用手冊) DWL-8200AP 可網管 雙頻無線基地台 設備壁掛固定盤 POE 連接器 電源線 電源供應器 DV-48V 0.4A 乙太網路纜線 (CAT5 UTP 直線) 使用不同電壓的電源供應器可能導致設備損壞,並影響設備的保固。 若是包裝中的配件有缺少,請聯絡您所購買的店家或經銷商...
  • Page 43 硬體安裝 天線 網路孔2 電源插座 網路孔1 (POE) 重置鍵...
  • Page 44 步驟一 將網路線(隨附在產品包裝中)一端連接至DWL-8200AP LAN1 (POE) 網路孔,另 一端網路線接頭連接至PoE轉接器上貼有”P+DATA”的插孔。 步驟二 將另一條網路線接頭一端連接在PoE 轉接器 標示有 “DATA IN” 的網路 埠,另一端網路線接頭連接至 您的路由器/交換器或是電腦。 DWL-8200AP Step3 P+DATA Line1(PoE) Step1 DATA Step2 Computer Router or Switch (Straight Through Cable) (Straight Through Cable) 步驟三 將電源供應器連接至PoE 轉接器上標有”Power IN “ 插座,再將電源供應器插 頭插入供電的電源插座上。...
  • Page 45 Mounting Plate Assembly 步驟一：請將壁掛螺紋固定栓塞放入牆壁上準備安裝無線基地台位置之固 定鑽孔。 步驟二：請將無線基地台壁掛架使用螺絲固定於牆壁上。...
  • Page 46 步驟三：請將配件剩餘的螺絲固定於DWL-8200AP設備背面之螺絲孔。 步驟四：將DWL-8200AP固定於設備壁掛架上。...
  • Page 47 步驟五：當DWL-8200AP設備固定於壁掛架上時，請確實將設備依圖示方法向 下壓，以固定設備...
  • Page 48 您的安裝已經完成！ Radius 伺服器 企業等級 路由器 可網管交換器 電腦1：使用108AG 電腦3 :使用108AG 無線網路卡 PoE 交換器 無線網路卡 電腦2：使用54AG 無線網路卡 電腦4：使用108AG 無線網路卡 可網管雙頻無線基地台 可網管雙頻無線基地台 電腦10：使用108G 電腦7：使用108G 無線網路卡 電腦8：使用108G 無 電腦5：使用 無線網路卡 線網路卡 802.11G 無線 網路 電腦9：使用108G 電腦6：使用 無線網路卡 802.11G 無線網路 *最大的無線訊號速率定義於IEEE 802.11a和802.11g無線標準規範。實際的資料傳輸速率會因網路 環境而下降或改變,網路狀態和環境因素,包含網路的流量,建築物的材質或是無線網路實際資料傳輸 速率過低等都是影響因素。...
  • Page 49 D-Link 友訊科技 台灣分公司 技術支援資訊 如果您還有任何本使用手冊無法協助您解決的產品相關問題，台灣 地區用戶可以透過我們的網站、電子郵件或電話等方式與D-Link台灣 地區技術支援工程師聯絡。 D-Link 免付費技術諮詢專線 0800-002-615 服務時間：週一至週五，早上9:00到晚上9:00 (不含周六、日及國定假日) 網 站：http://www.dlink.com.tw 電子郵件：dssqa_service@dlink.com.tw 如果您是台灣地區以外的用戶，請參考D-Link網站，全球各地 分公司的聯絡資訊以取得相關支援服務。 產品保固期限、台灣區維修據點查詢，請參考以下網頁說明： http://www.dlink.com.tw 產品維修： 使用者可直接送至全省聯強直營維修站或請洽您的原購買經銷商。...
  • Page 50 Notes...

  • Page 51: Petunjuk Pemasangan

    Petunjuk Pemasangan DWL-8200AP Managed Dualband Access Point...

  • Page 52: Isi Paket

    ® , atau Linux • Sebuah kartu jaringan yang terpasang • Internet Explorer versi 7.0 atau Mozilla Firefox versi 3.0 atau yang lebih baru Isi Paket CD-ROM yang berisi Petunjuk Penggunaan DWL-8200AP Managed Dualband Access Point Mounting Plate Unit dasar PoE Kabel Power Power Adapter-DC 48V, 0.4A Kabel Ethernet (CAT5 UTP / Straight Through) Catatan : Menggunakan power adapter yang tegangannya berbeda dengan yang ada dalam paket penjualan DWL-8200AP dapat menyebabkan kerusakan dan akan membatalkan garansi produk ini.
  • Page 53 Pemasangan Perangkat Keras Antena Lubang Power LAN 2 Reset LAN 1 (PoE)
  • Page 54 Langkah 1 Hubungkan salah satu ujung kabel Ethernet (yang termasuk dalam paket pen- jualan) ke port LAN pada DWL-8200AP dan ujung satunya lagi pada port yang berlabel P+DATA OUT pada unit dasar PoE. Langkah 2 Hubungkan kabel Ethernet lainnya dari port DATA IN pada unit dasar PoE ke Router/Switch anda atau ke sebuah PC. DWL-8200AP Step3 P+DATA Line1(PoE) Step1 DATA Step2 Computer Router or Switch (Straight Through Cable) (Straight Through Cable) Langkah 3 Colok power adapter ke konektor yang berlabel POWER IN pada unit dasar PoE. Kemudian Colok kabel power ke power adapter lalu colok ke colokan listrik.
  • Page 55 Pemasangan Mounting Plate Langkah 1: Masukkan wadah penahan yang sudah disediakan kedalam dinding dimana nantinya mounting plate akan dipasang. Langkah 2: Gunakan Sekrup yang disediakan untuk memasang mounting plate ke dinding.
  • Page 56 Langkah 3: Pasang sekrup yang tersisa ke belakang DWL-8200AP. Langkah 4: Pasang DWL-8200AP ke mounting plate.
  • Page 57 Langkah 5: Geser DWL-8200AP kebawah mengikuti alur-alur yang ada pada mounting plate untuk mengamankan dan memastikan DWL-8200AP sudah terpasang dengan baik ke mounting plate.
  • Page 58 Pengaturan Selesai When you have completed the steps in this Installation Guide and configured your for your network, your network should look similar to this: * Kecepatan transfer data mengikuti spesifikasi dari IEEE 802.11a dan 802.11g. Throughput data sesungguhnya bisa bervariasi. Kondisi jaringan dan faktor lingkungan, termasuk jumlah dari lalu lintas jaringan, material gedung dan konstruksi, dan overhead jaringan dapat menurunkan throughput data sesungguhnya.
  • Page 59 Dukungan Teknis Update perangkat lunak dan dokumentasi pengguna dapat diperoleh pada situs web D-Link. Dukungan Teknis untuk pelanggan: Dukungan Teknis D-Link melalui telepon: Tel: +62-21-5731610 Dukungan Teknis D-Link melalui Internet: Email : support@dlink.co.id Website : http://support.dlink.co.id...
  • Page 60 Ver. 2.01 (I) 2008/12/30 6WL8200QML05G...
