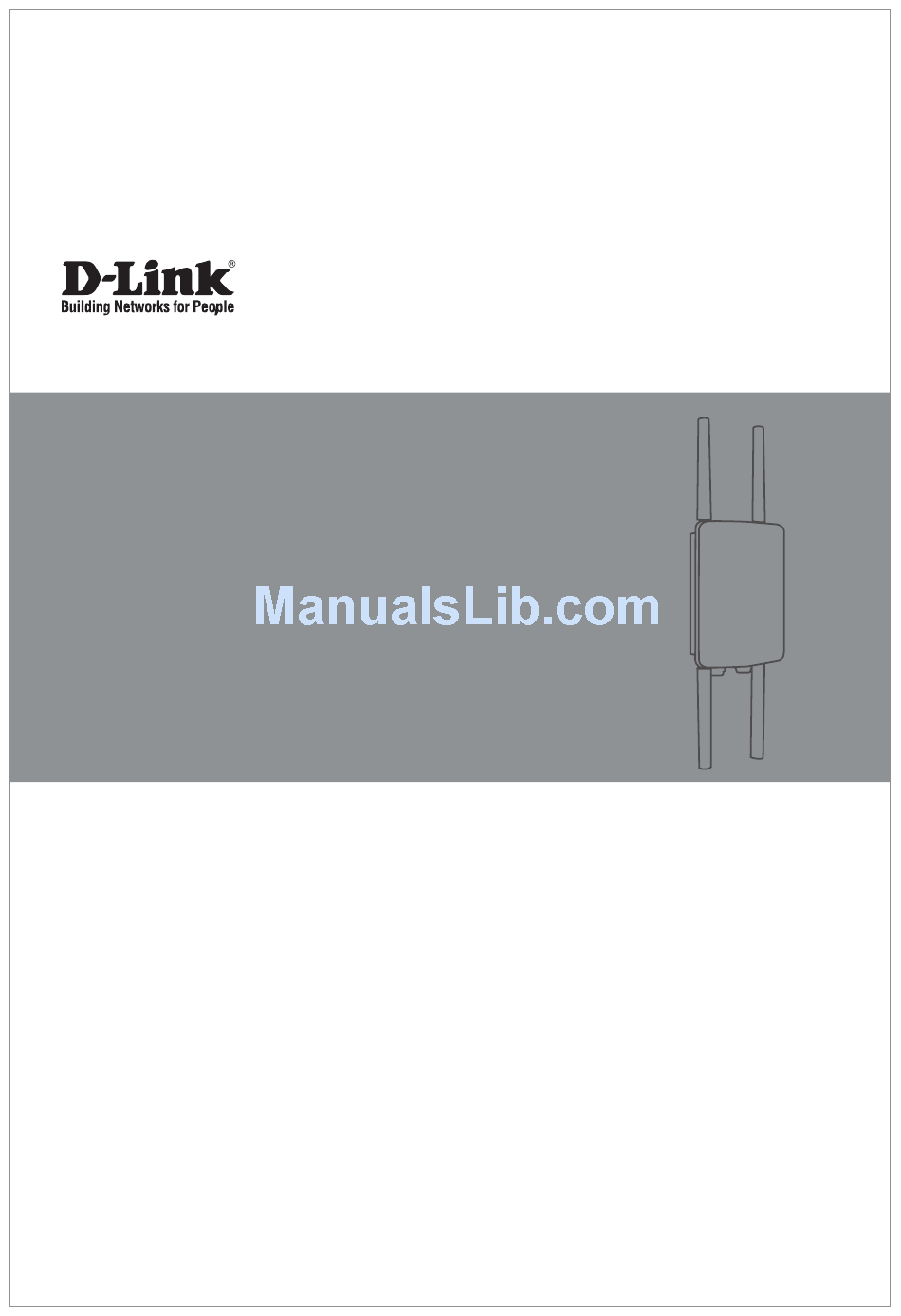

Page 1: Quick Installation Guide
Quick Installation Guide This document will guide you through the basic installation process for your new D-Link Access Point. DWL-8710AP Documentation is also available on the CD and the D-Link website... -
Page 2: Hardware Overview
• CD-ROM with documentation Bottom Interface Connectors To power the DWL-8710AP, please use any D-Link IEEE 802.3at-compliant PoE switch or the D-Link DPE-101GI/ DPE-301GI PoE injector. If any of the above items are damaged or missing, please contact your local D-Link reseller. -
Page 3: Hardware Installation
Top Interface Connectors Hardware Installation Powering the Access Point You can power the DWL-8710AP by connecting a PoE injector’s PoE-OUT to the LAN1 port (PoE-Input) on the DWL-8710AP. Then connect the PoE injector’s LAN-IN port to an available Ethernet port on your Figure 3: Top panel connectors computer and plug in the injector’s power cord into... -
Page 4: Mounting The Ap To A Wall
1. Use the mounting base plate to mark the location on the surface where you want to mount the DWL-8710AP. Next, drill a hole of 8 mm wide and 37 mm deep on all 4 markings. 2. Remove the nut and washer from the bolts and place the bolts in the holes as shown below in figure 8. - Page 5 “5 GHz” to the designated 5 GHz connectors screws. Refer to figure 13 for the proper position on the AP. The DWL-8710AP is now ready to be of the pole mounting bracket for each direction. connected to the network.
-
Page 6: Configuring The Access Point
2 antennas marked “2.4 GHz” to the designated 2.4 GHz connectors and the 2 antennas marked “5 GHz” to the designated 5 GHz connectors on the AP. The DWL-8710AP is now ready to be connected to the network. Figure 17: Attaching the antennas... - Page 7 2 antennas marked “2.4 GHz” to the designated 2.4 GHz connectors and the 2 antennas marked “5 GHz” to the designated 5 GHz connectors on the AP. The DWL-8710AP is now ready to be connected to the network. Figure 17: Attaching the antennas...
-
Page 8: Federal Communication Commission Interference Statement
Federal Communication Commission radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Interference Statement This equipment has been tested and found to comply Caution : with the limits for a Class B digital device, pursuant to Part (i) the device for operation in the band 5150-5250 MHz 15 of the FCC Rules. - Page 9 Professional installation instruction (for FCC) Instructions d’installation professionnelle 1. Installation personal 1. Installation This product is designed for specific application and Ce produit est destine a un usage specifique et doit needs to be installed by a qualified personal who has RF etre installe par un personnel qualifie maitrisant les and related rule knowledge.
- Page 12 Ver. 1.00(WW)_90x130 2016/04/19...
