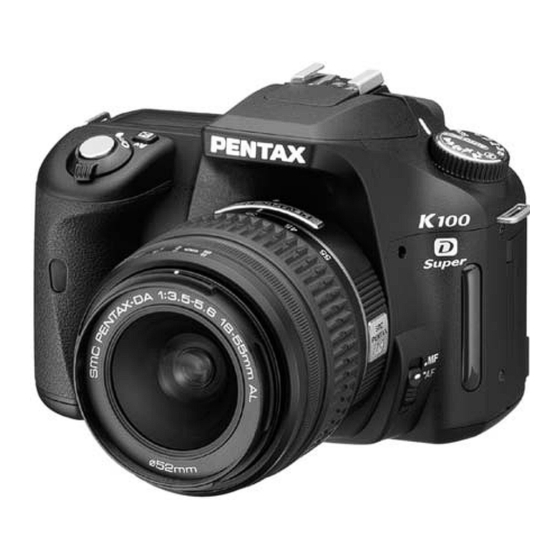

Pentax K100D SUPER Service Manual
Hide thumbs
Also See for K100D SUPER:
- Operating manual (220 pages) ,
- Service manual (95 pages) ,
- Pictorial manual (8 pages)
Related Manuals for Pentax K100D SUPER
Summary of Contents for Pentax K100D SUPER

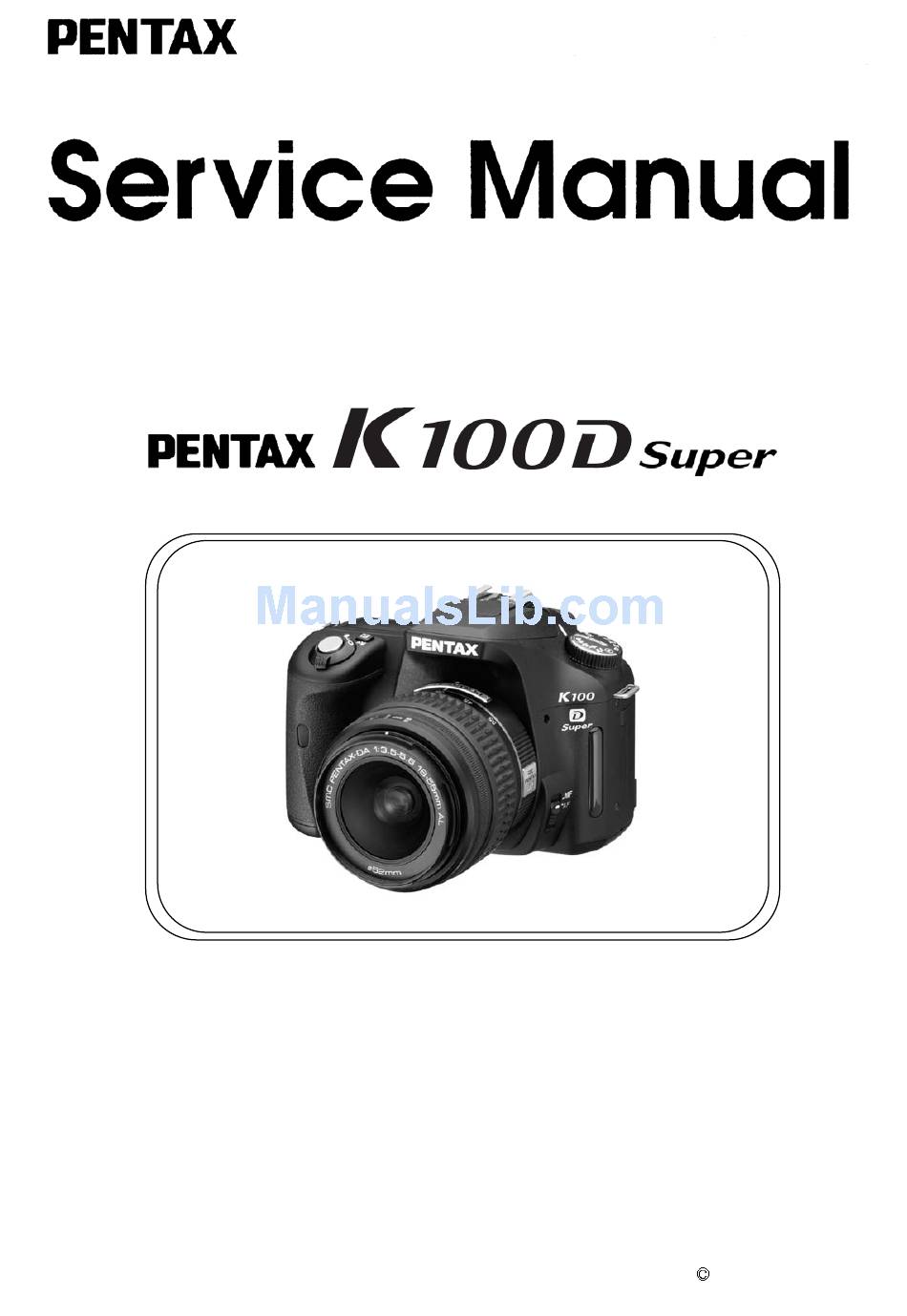

- Page 1 ENGLISH Product No.76706 PENTAX Corporation Service Technical Section 07.07 H.Y.
-
Page 2: Table Of Contents
Concerning the disassembly, assembly, adjustment procedure and technical information, please refer to the service manual of K100D (76700). The following spare parts are exclusive use for k100D Super. Refer to the parts list for k100D Super ◇ Front cover right （A161） ◇ Plate (A162） ◇ Rear Cover（A201）... -
Page 3: Preparation
PREPARATION 1． Service tools, tester (Same as K100D except below adjustment software) Adjustment software for 76706/76700 (SLR / Digital / SR) --- 95901 P412 If you already has adjustment software for K100D, the new software which correspond K100D Super will provide automatically. If you do not have adjustment software for K100D, please place order with 95901 P412 Preparation for adjustment Preparation:... -
Page 4: Disassemby And Assenbly
DISASSEMBY AND ASSENBLY 1．Replace 0-T100 ◆ When replaced T100, the following procedure is required 【Caution】 ① Install FW for replaced T100 ② Install product FW ③ Initialize the data Important note: It should be done from ① → ② → ③ 2．Arrangement the lead wires on ０－T100 ①... -
Page 5: 3．0-T770（Sdm Pcb
3．0-T770（SDM PCB） ① 0-T770 ② Lead wires x 5 ① T200 ② Black 0-T770 Blue Yellow ③ DT(7x11) Violet ③ 2 lead wires (Q200→T770) 5 lead wires (T770→T100) ④ Lead wires x 2 (Red, Black) ⑤ Lead wires x 2 (White, Brown) ⑥... -
Page 6: A35（Dust Collection Sheet
5．A35（Dust collection sheet） ① Attach A35 x 2, refer to the picture 6．[CONF] CCD Base Plate Support Pillar [Required equipment] Block gauge for 35mm, Dial gauge comparator, etc. ① Measure height of the CCD base support pillar (3 places) from the mount surface as shown in the figure. -
Page 7: Battery Consumption
Battery consumption current Condition : Lens [FA lens, A position], each mode and setting is default setting. ○ × Lens---- : With : Without ○ × SD card---- : With : Without ＊5,6 and 7 are peak value averages AC Power Battery Condition of camera Lens...
