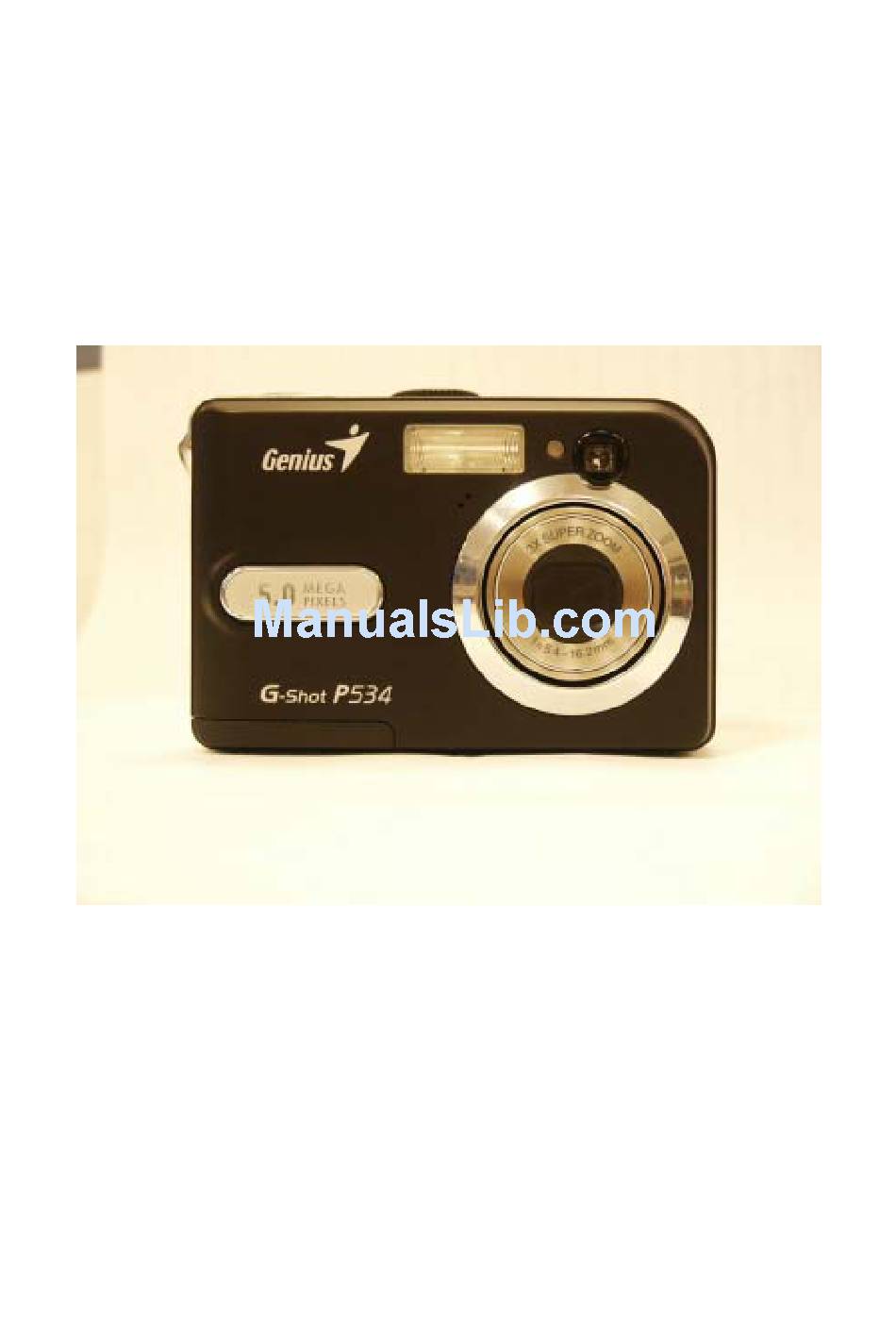

- Page 1 Service Manual G-Shot P534 Version K01A...
-
Page 2: Table Of Contents
Service Manual G-Shot P534 Contents ………………………………...…………..2 1.Function Test ………………………………………3 2.Troubleshooting ……………………………………5 3.Disassemble Procedure ……………………………9 4.Firmware Update Procedure ………………….….12 5.Parts List ……………………………………...……13 6.Tools …..…………………………………….………18 Version: K01A... -
Page 3: Function Test
Service Manual G-Shot P534 1. Function Test TOOL/EQUIPMENT SD card*2, TV, AC adapter, lens-wiping paper USB cable, flower, accessory, computer OPERATION DESCRIPTION ITEM OPERATION DESCRIPTION Insert SD card and AA*2 batteries to power on. Confirm if the FW version is correct. Enter capture mode and confirm if the battery status is consistent with the actual status, and the memory displayed on LCD is SD card icon. - Page 4 Service Manual G-Shot P534 Take 30 pictures in forced flash mode and confirm if there are abnormities, such as missing flash, hang on, power off automatically etc. Switch to video mode and the left-upper on LCD should display Press shutter button to record more than 5s, using sound box to catch sound.
-
Page 5: Troubleshooting
Service Manual G-Shot P534 2. Troubleshooting Item NG point NG Analyzing solution Power system Power on failure 1>. Check if the MCU board and shutter (without current board flex board contact well reaction) 2>. Check if fuse F1 is broken 3>. - Page 6 Service Manual G-Shot P534 TFT-LCD too dark 1>. Check if LCD body is OK 2>. Check if power supply, resistance and U7 of LCD backlight circuit are OK TFT-LCD image Check if golden finger of CCD FPC and unstable connector contact well TFT-LCD white image 1>.
- Page 7 Service Manual G-Shot P534 Trigger failure/ miss 1>. Check if tube is offset or assy flashing/ flash only reversely, wires of tube are cold solder once or insufficient solder 2>. If (1) is normal, check if copper foil of reflector contact well 3>.
- Page 8 Service Manual G-Shot P534 Others USB connecting 1>. Check if USB connector is OK failure or can not 2>. Check if USB_DTC related circuit is search the disk 3>. Confirm if ASIC and related circuit are OK TV play/ no sound/ 1>.
-
Page 9: Disassemble Procedure
Service Manual G-Shot P534 3. Disassemble Procedures Step Figure Discription Remark Tools Examine if there's Finished Product any scratch on the surface. Do not scratch the Remove the Rear Cover camera surface Screw driver at the camera housing. while removing Rear Cover . - Page 10 Service Manual G-Shot P534 Desolder the soldered joints by soldering iron Soldering iron as shown. Desolder the soldered Be careful not to joints by soldering iron Soldering iron burn the wire. as shown. The soldering points are Soldering iron as image shown. Desolder the soldered joints by soldering iron Soldering iron...
- Page 11 Service Manual G-Shot P534 The Strobe PCB ASY located at the camera housing. Disconnect the connector form strobe Tweezer PCB ASY as shown. Remove the strobe PCB and flash tube from Screw driver Main Frame. Remove the lens unit as Screw driver shown.
-
Page 12: Firmware Update Procedure
Service Manual G-Shot P534 4. Firmware Update Procedure To update this camera firmware, you will need to have 1. The new firmware file. 2. One SD card. 3. One card reader. Please follow the steps below to perform the update process: 1. -
Page 13: Parts List
Service Manual G-Shot P534 5. Part List (G-Shot P534) Item Parts Name Pcs / set Premier P/N Remark Front Cover ASY 9Q344-2001 Rear Cover ASY 9Q344-3001 Lens Module ASY 9Q346-6000 Battery Cover 9Q334-460A-99 MCU PCB ASY 9Q347-0100 Strobe PCB ASY 9Q347-4100 Switch-2 PCB ASY 9Q347-3101... - Page 14 Service Manual G-Shot P534 1. Front Cover ASY 2. Rear Cover ASY Version: K01A...
- Page 15 Service Manual G-Shot P534 3. Lens Module ASY 4. Battery Cover Version: K01A...
- Page 16 Service Manual G-Shot P534 5. MCU PCB ASY 6. Strobe PCB ASY Version: K01A...
- Page 17 Service Manual G-Shot P534 7. Switch-2 PCB ASY 8. LCD Version: K01A...
-
Page 18: Tools
Service Manual G-Shot P534 6. Tool Item Description Mark Screw Driver (2.0m/m) Tweezers Soldering iron 1. Screw Driver Version: K01A... - Page 19 Service Manual G-Shot P534 2. Tweezers Version: K01A...
- Page 20 Service Manual G-Shot P534 3. Soldering iron Version: K01A...
