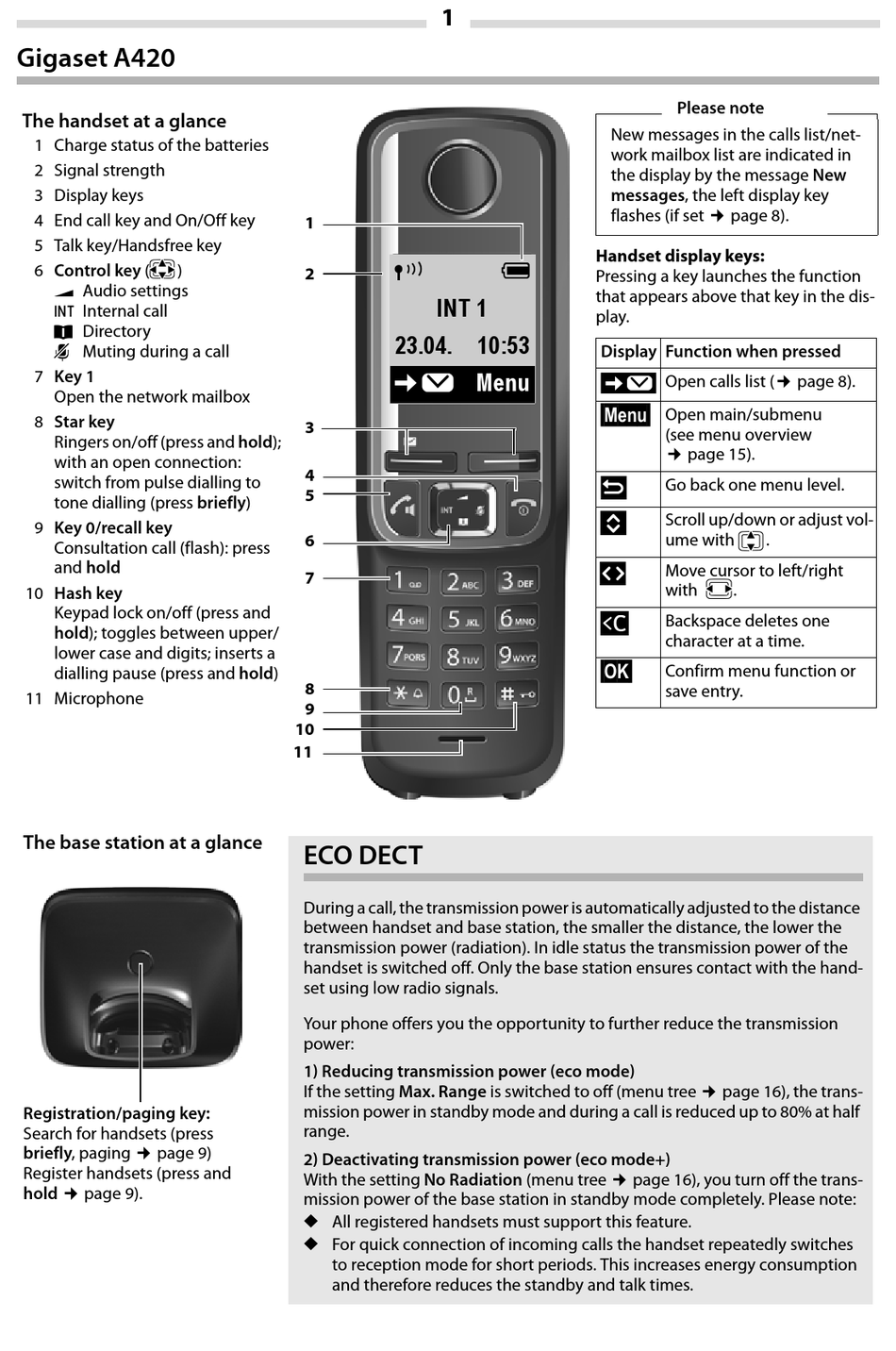

Gigaset A420
The handset at a glance
1 Charge status of the batteries
2 Signal strength
3 Display keys
4 End call key and On/Off key
5 Talk key/Handsfree key
p
6 Control key (
)
ª
Audio settings
INT
Internal call
â
|
Directory
Muting during a call
7 Key 1 
Open the network mailbox
8 Star key 
Ringers on/off (press and hold);
with an open connection:
switch from pulse dialling to
tone dialling (press briefly)
9 Key 0/recall key
Consultation call (flash): press
and hold
10 Hash key
Keypad lock on/off (press and
hold); toggles between upper/
lower case and digits; inserts a
dialling pause (press and hold)
11 Microphone
The base station at a glance
Registration/paging key: 
Search for handsets (press
¢
briefly, paging
page 9)
Register handsets (press and
¢
hold
page 9).
1
1
Ð
2
INT 1
23.04. 10:53
' Menu
3
4
5
6
7
8
9
10
11

ECO DECT

During a call, the transmission power is automatically adjusted to the distance
between handset and base station, the smaller the distance, the lower the
transmission power (radiation). In idle status the transmission power of the
handset is switched off. Only the base station ensures contact with the hand-
set using low radio signals.
Your phone offers you the opportunity to further reduce the transmission
power:
1) Reducing transmission power (eco mode)
If the setting Max. Range is switched to off (menu tree
mission power in standby mode and during a call is reduced up to 80% at half
range.
2) Deactivating transmission power (eco mode+)
With the setting No Radiation (menu tree
mission power of the base station in standby mode completely. Please note:
All registered handsets must support this feature.
For quick connection of incoming calls the handset repeatedly switches
to reception mode for short periods. This increases energy consumption
and therefore reduces the standby and talk times.
New messages in the calls list/net-
work mailbox list are indicated in
the display by the message New
messages, the left display key
flashes (if set
Handset display keys:
U
Pressing a key launches the function
that appears above that key in the dis-
play.
Display Function when pressed
'
Open calls list (
§Menu§
Open main/submenu
(see menu overview
¢
"
Go back one menu level.
Y
Scroll up/down or adjust vol-
ume with
X
Move cursor to left/right
with
Ü
Backspace deletes one
character at a time.
§OK§
Confirm menu function or
save entry.
¢
page 16), you turn off the trans-
Please note
¢
page 8).
¢
page 8).
page 15).
q
.
r
.
¢
page 16), the trans-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A420 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gigaset A420

  • Page 1: Eco Dect

    Gigaset A420 Please note The handset at a glance New messages in the calls list/net- 1 Charge status of the batteries work mailbox list are indicated in 2 Signal strength the display by the message New 3 Display keys messages, the left display key ¢...
  • Page 2: Safety Precautions

    First steps Check the package contents Base station and handset package: One Gigaset handset, one Gigaset A420 base station, one mains adapter, one phone cord, two batteries, one battery cover, one user guide. Handset and charging cradle package: One Gigaset handset, one charging cradle with mains adapter, two batteries, one battery cover, one user guide.
  • Page 3: Connecting The Base Station

    Inserting the batteries and closing the battery cover Warning ¢ Use only the rechargeable batteries recommended by Gigaset Communications GmbH ( page 13), i.e., never use conventional (non-rechargeable) batteries as this could result in significant health risks and personal injury. For example, the batteries could explode.
  • Page 4: Initial Charging And Discharging Of The Batteries

    Charge the handset in the base station/charging cradle for 6 hours. Please note The handset must only be placed in the designated Gigaset base station or charging cradle. ¤ After charging, remove the handset from the base sta- tion/charging cradle and only replace it when the batter- ies are fully discharged.
  • Page 5: Display In Idle Status

    Display in idle status Once the phone is registered and the time set, the idle status is shown as in this example. Ð Screen display ◆ Reception between the base station and the handset: Ð ¨ § ¦ Good to poor: INT 1 ¥...
  • Page 6: Making Calls

    Making calls Making external calls and ending calls External calls are calls using the public telephone network. ¤ c (Enter the phone number) The phone number is dialled. (Or you can first press and hold talk key [dial tone] and then enter the number.) During the call you can adjust the earpiece volume using and set the volume with End the call/cancel dialling: Press the end call key...
  • Page 7: Using The Directory And Lists

    Using the directory and lists Directory To open the directory: press control key You can save up to 100 phone numbers (max. 22 digits) with corresponding names (max. 16 characters).  ¢ Enter letters/characters page 13. Storing the first number in the directory s ¤...
  • Page 8: Managing Entries In The Last Number Redial List

    Managing entries in the last number redial list ¤ q ¤ §Menu§ (press briefly) (select entry) You can select the following settings: Use Number Edit the number or open the directory by pressing the control key to insert a number from the §Menu§...
  • Page 9: Network Mailbox List

    HS registered and returns to idle status. Handsets are assigned the lowest available internal number (1-4). If the internal numbers 1–4 are already assigned to other devices, the number 4 will be overwritten. De-registering handsets You can de-register all other registered handsets from each of the registered Gigaset handsets. ¤ q ¤ q ¤...
  • Page 10: Using Multiple Handsets

    Using multiple handsets Making internal calls Internal calls are free calls to other handsets that are registered to the same base station. 2 handsets are registered Press the control key , the other handset is called. More than 2 handsets are registered Calling a specific handset u ¤...
  • Page 11: Changing The Handsfree/Earpiece Volume

    Changing the handsfree/earpiece volume In idle status: t ¤ ¤ q ¤ q ¤ ¤ §OK§ §OK§ Handset Volume Earpiece/Speaker (set the volume level 1 to 5) ‰ ¤ §OK§ = selected) During a conversation via the earpiece or in handsfree mode: t ¤...
  • Page 12: Resetting The Handset

    5 seconds. Operating the base station on the PABX/router Operating on the router When operating the Gigaset on an analogue port of a router, you can reduce problems with echoing by activating the ¢ XES Mode ( page 16).
  • Page 13: Entering Letters/Characters

    The operating time of your Gigaset depends on the capacity and age of the batteries and the way it is used. (Standby time/talk time/operating time are maximum possible values, charging times are typical values.) Capacity (mAh) approx.
  • Page 14: Questions And Answers

    Questions and answers If you have any queries about the use of your telephone, visit our website at www.gigaset.com/service  for 24-hour support. The table below contains a list of common problems and possible solutions. Problem Cause Solution Nothing appears on The handset is not switched on....
  • Page 15: Environmental Management System

    Our environmental statement We at Gigaset Communications GmbH are aware of our social responsibility. That is why we actively take steps to create a better world. In all areas of our business – from product planning and production to sales and waste of disposal – fol- lowing our environmental conscience in everything we do is of utmost importance to us.
  • Page 16 Preselection Presel. Number/With Preselect/Without Presel. page 6 All rights reserved. Rights of modification reserved. Issued by © Gigaset Communications GmbH 2012 Subject to availability.  Gigaset Communications GmbH Frankenstr. 2a, D-46395 Bocholt All rights reserved. Rights of modification reserved. www.gigaset.com...
  • Page 17 Gigaset Communications GmbH Frankenstr. 2a, D-46395 Bocholt © Gigaset Communications GmbH 2012 Subject to availability. All rights reserved. www.gigaset.com...
