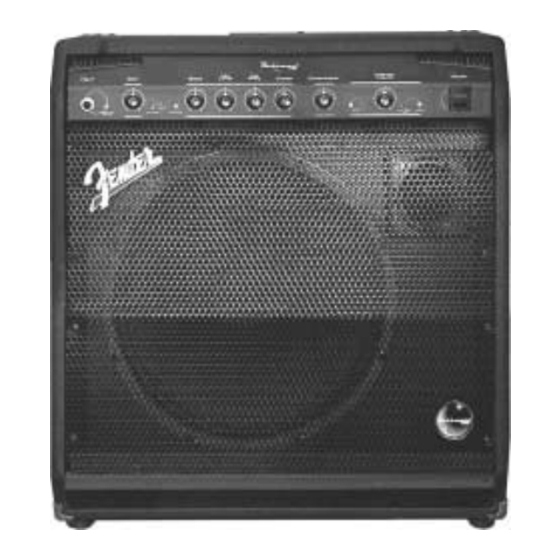

Fender Bassman 100 Service Manual
Hide thumbs Also See for Bassman 100:

Advertisement

Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258
BASSMAN 100
CONTENTS:
Notices
Drawings
p/n 022-4503-000 (120V)
PCB assy pwramp
Chassis assy
Cabinet assy

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bassman 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fender Bassman 100

  • Page 1: Table Of Contents

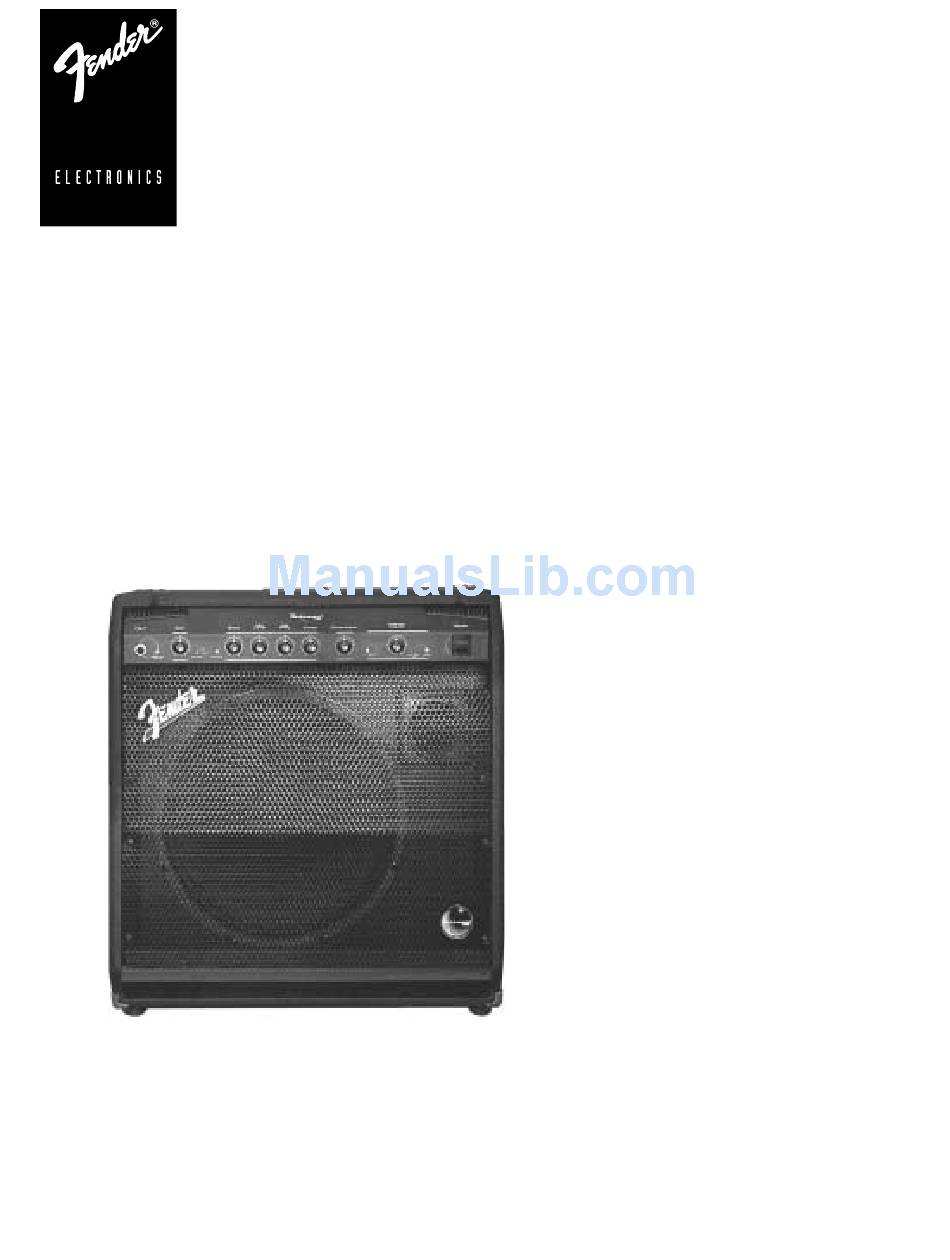

    BASSMAN 100 p/n 022-4503-000 (120V) SERVICE MANUAL CONTENTS: Notices Specifications Service notes Parts lists: PCB assy-preamp PCB assy pwramp Chassis assy Cabinet assy End item Drawings Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258...
  • Page 2: Service Manual

    Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair.
  • Page 3: Specifications

    Mid frequency: 150 to 1500 Hz Mid level: +/-15 dB @ Mid frequency setting Treble: +/-15 dB @ 5 kHz One 4 Ω Fender Special Design 15" woofer (P/N 0040580000) Speaker Complement: One Motorola Piezo Horn (P/N 0053641000) Effects Loop: Send impedance: 1kΩ...
  • Page 4: Service Notes

    BASSMAN 100 SERVICE NOTES HORN REPLACEMENT requires speaker removal in order to access horn wiring. If wire ties, clamps, etc. are removed for ease of connecting/disconnecting horn wires, these must be replaced to prevent buzzing at higher power levels. RIBBON CABLES running between rear panel board and preamp board should be routed next to the chassis, underneath the power-amp board.
  • Page 5 BASSMAN 100 PRINTED CIRCUIT BOARD ASSEMBLY - PREAMP (cont) PART # DESCRIPTION REFERENCE DESIGNATION 27265003 CAP MPF .015uF 100V 10% 27270003 CAP MPF .033uF 100V 10% 27278003 CAP MPF .1uF 63V 10% C3-4 27281003 CAP MPF .22uF 63V 10% 27283003 CAP MPF .33uF 63V 10%...
  • Page 6 48451000 BUTTON PUSH OFF WHITE @ S1-4 36178000 SPACER LED .5X.1 BROWN @ D21 D28 D31 55630000 PCB, FAB, PREAMP, BASSMAN 100 PRINTED CIRCUIT BOARD ASSEMBLY - POWER AMP PART # DESCRIPTION REFERENCE DESIGNATION 53856000 CABLE RIBBON 6 CKT 8"...
  • Page 7 XSTR PNP 2SB1236 14866003 XSTR PNP MPSW92 TO-226AE 48451000 BUTTON PUSH OFF WHITE AT S1-2 55772000 PCB, FAB, POWER AMP, BASSMAN 100 55636000 HEATSINK PLATE, BASSMAN 100 32908000 SCRW TF 6-32X3/8 PHP ZI AT ITEM 103 AND 101 51094003 FUSE CLIP PCB 5MM...
  • Page 8: Pcb Assy-Preamp

    HEATSINK BAR, BASSMAN 100 0028500000 SCRW TF 8-32x3/4 HWH SLTD Z1 @HEATSINK 0055631000 PCB ASSY, PREAMP, BASSMAN 100 0055773000 PCB ASSY, POWER AMP, BASSMAN 100 0055629000 PANEL, REAR, BASSMAN 100 0055628000 PANEL, FRONT, BASSMAN 100 0040582000 SWITCH DPST .250 TAB GLOBAL...
  • Page 9: End Item

    CHS ASSY, BASSMAN 100, 120V DOMESTIC 120V 0055624000 CHS ASSY BASSMAN 100 230V EXPORT 230V UK/EUR 0055626000 CHS ASSY BASSMAN 100 240V AUST EXPORT 240V AUST 0055627000 CHS ASSY BASSMAN 100 100V EXPORT 100V JPN 0047248000 CORD PWR W/ IEC CONN DOM...
