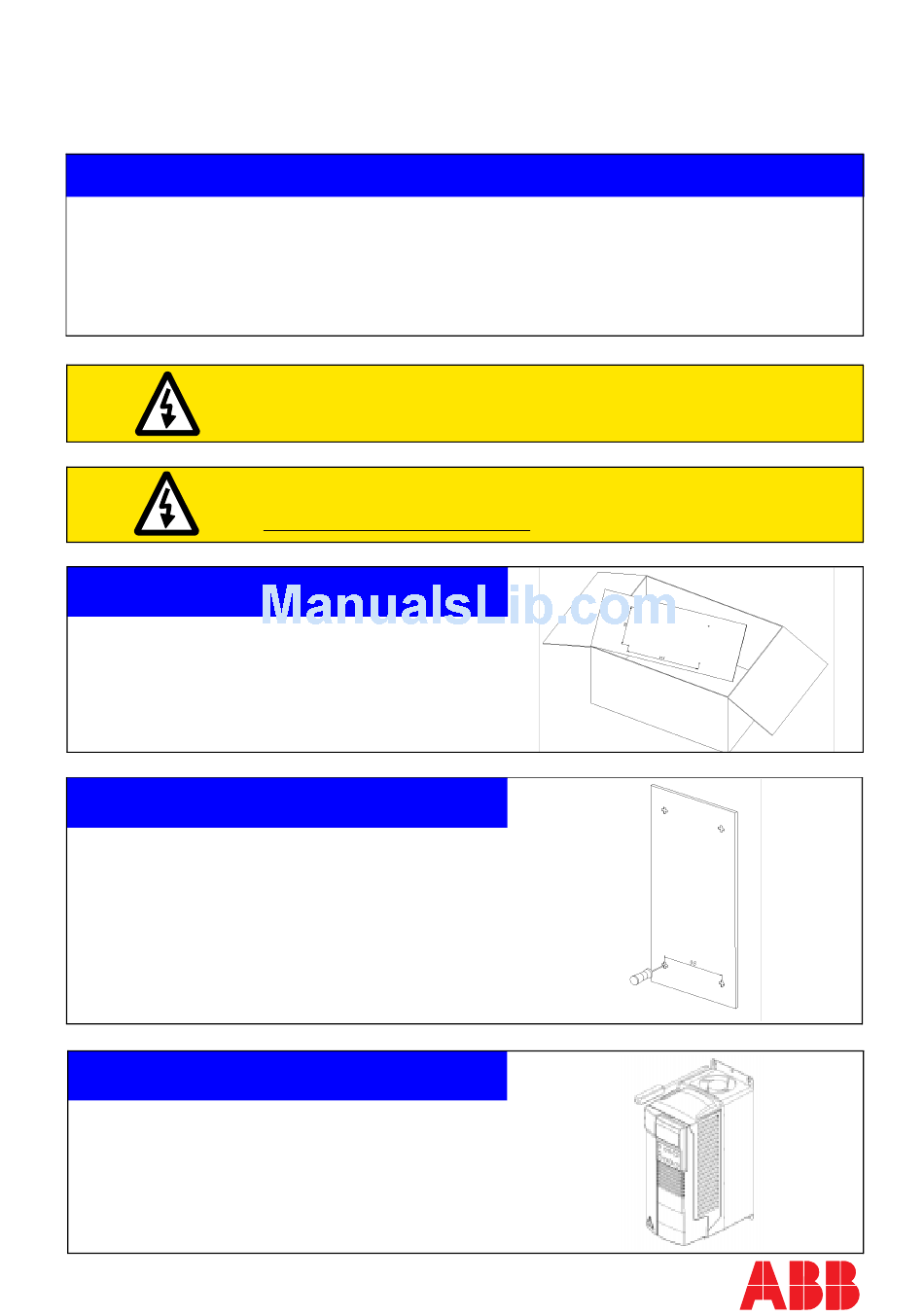

CHECK BOX CONTENTS: ACS 400, Manual, Mounting Template, Installation Guide, Clamp plates
CHECK INSTALLATION SITE: See Manual.
TOOLS NEEDED: Screwdrivers, Wire stripper, Tape measure, 4 pcs 5x12 mm screws, Drill
FROM MOTOR NAMEPLATE: Supply voltage, Nominal motor current, Nominal frequency, Nominal
speed, Nominal power, Cos
Note! This Installation Guide is only for setting the speed of a single motor.
Packing box lid contains wall mounting template.
Remove it from the box.
ACS 400 should ONLY be mounted vertically on a
smooth, solid surface, free from heat, damp and
condensation. Ensure minimum air flow gaps of 200 mm
above and below and 50 mm around sides of unit.
1. Using mounting template, mark fixing hole positions.
2. Drill the holes.
3. Screw in four screws or affix nuts and bolts
(depending on mounting surface).
Position ACS 400 onto fixings and securely tighten in
all four corners.
Note! Lift ACS 400 by its chassis and not by its cover.
Before Starting Installation
ϕ
ENSURE MAINS SUPPLY TO INSTALLATION IS OFF.
ENSURE MOTOR IS SUITABLE FOR USE WITH ACS 400.
ACS 400 MUST BE INSTALLED BY A COMPETENT PERSON.
IF IN DOUBT DO NOT INSTALL.
1
2
3

Installation Guide

for product type ACS 400

Advertisement

loading

Summary of Contents for ABB ACS 400

  • Page 1: Installation Guide

    Installation Guide for product type ACS 400 Before Starting Installation CHECK BOX CONTENTS: ACS 400, Manual, Mounting Template, Installation Guide, Clamp plates CHECK INSTALLATION SITE: See Manual. TOOLS NEEDED: Screwdrivers, Wire stripper, Tape measure, 4 pcs 5x12 mm screws, Drill FROM MOTOR NAMEPLATE: Supply voltage, Nominal motor current, Nominal frequency, Nominal ϕ...
  • Page 2 U1 V1 W1 on the left hand side of the ACS 400. 4. ENSURE PROPER EARTHINGS. ACS 400 does not carry internal fusing. NOTE! Please ensure correct fuses are installed at the supply distribution board. See ACS 400 User’s Manual for correct fuse sizes.
  • Page 3 To reverse the rotation '&20 direction activate DI 2. Switch on mains. Note! For further information on I/O settings, refer to User’s Manual for product type ACS 400. CONTROL PANEL: Proceed with the step 11.
  • Page 4 Note! Before increasing motor speed, check that the motor is running in desired direction. forward direction To set the reference: •To increase the reference press •To decrease reference press reverse To stop motor press button. direction Note! Always disconnect mains supply before working on ACS 400 or motor.
