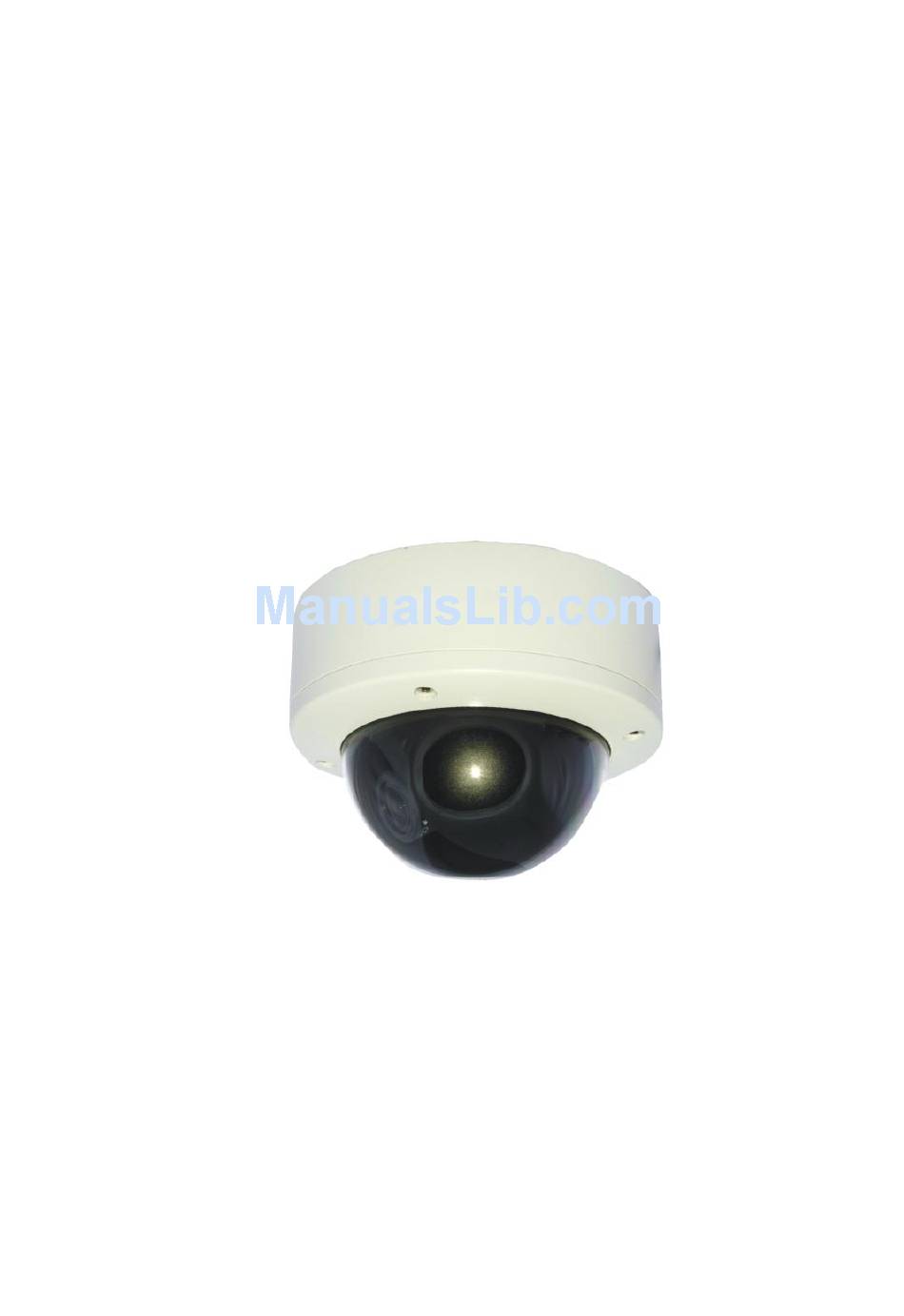

2Mega-Pxiel/3X Optical Zoom/OSD Menu SDI Output/AIO Camera INSTRUCTION MANUAL V1.0 Warning：Please read this manual carefully before installation and use! - 1 -... - Page 2 1、SAFETY TIPS： Installation must be operated by qualified professionals！ Laypeople are forbidden to open this camera! 2、POINTS FOR ATTENTION： Keep the camera away from damp or rainy places, and install strictly as per the manual. To avoid damage, please do not operate with power on. Please do not disassemble or make modification on the camera without permission.
- Page 3 4、FUNCTION： DC12V POWER INPUT VIDEO OUTPUT OSD MENU CONTROL FIGURE1：Camera cable connection schemes Call OSD menu Press MENU function table control key OSD menu up Press UP function table control key OSD menu down Press DOWN function table control key Enter submenu Press RIGHT function table control key Return superior menu...
-
Page 4: Motion Detection
6、MENU OPERATION： FOCUS ONEPUSH AF / MANNAL IMAGE EFFECT FREEZE / B&W/NEGATIVE / MIRROR / FLIP / MUTE (ON/OFF OPTIONAL) DAY/NIGHT MODE AUTO/COLOR/B&W/EXT SWITCH DELAY 5 (1-15 OPTIONAL) D-N LEVEL 4 (1-10 OPTIONAL) MOTION DETECTION DETECTION OFF（ON/OFF OPTIONAL) THRESHOLD 15（5-40 OPTIONAL) RE-ALARM INTERVAL 20（5-40 OPTIONAL) ON （ON/OFF OPTIONAL) TRACKING DISPLAY... - Page 5 ADVANCED FUNCTION BLC : OFF(OFF/LESS/NORMAL/MORE OPTIONAL) （AUTO;1/50;1/250;1/500;1/700;1/1000;1/2500 EXPOSURE SHUTTER :AUTO ） OPTIONAL LANGUAGE ENGLISH / TRADITIONAL CHINESE / SIMPLIFIED CHINESE SYSTEM SYSTEM VERSION:V0.2.16 MCU VERSION:V5 CAMERA INFORMATION TITLE DISPLAY :ON/OFF CAMERA ID :X(0-255 OPTIONAL) ID DISPLAY:OFF(ON/OFF OPTIONAL) RESET - 5 -...
- Page 6 7、PARAMETERS： Model Omnivision 1/2.7’’ CMOS Sensor OV2715 Image Sensor Video 2M Pixel Array Ambarella A2i(Full HD) 1080p/30,720p/60 Resolution 1080p/30,720p/60 Video Output Digital:HD-SDI Video Output Mode <50dB S/N Ratio 12 Lux ( F1.8) With 50 IRE Min.Illumination 1.0 Lux ICR ON( F1.8) With 50 IRE 3X Optical Zoom/F1.2(W)~F2.7(T)/f=2.8mm(W)~9mm(T) Optical Zoom 115.2°(Wide)~37.1°(Tele)
- Page 7 8、REDUCTION PARAMETERS： FOCUS ONEPUSH AF IMAGE EFFECT FREEZE / B&W/NEGATIVE / MIRROR / FLIP / MUTE (OFF) DAY/NIGHT MODE AUTO SWITCH DELAY 5 D-N LEVEL MOTION DETECTION DETECTION THRESHOLD RE-ALARM INTERVAL 20 TRACKING DISPLAY BLOCK DISPLAY FRAME NO. ：0 FRAME SETUP DETECTION ：ON HORIZONTAL START ：0 VERTICAL START ：0...
- Page 8 ADVANCED FUNCTION BLC : OFF EXPOSURE SHUTTER :AUTO LANGUAGE SIMPLIFIED CHINESE SYSTEM SYSTEM VERSION:V0.2.16 MCU VERSION:V5 CAMERA INFORMATION TITLE DISPLAY : OFF CAMERA ID :1 ID DISPLAY : OFF RESET - 8 -...
