Page 1: Instruction Manual

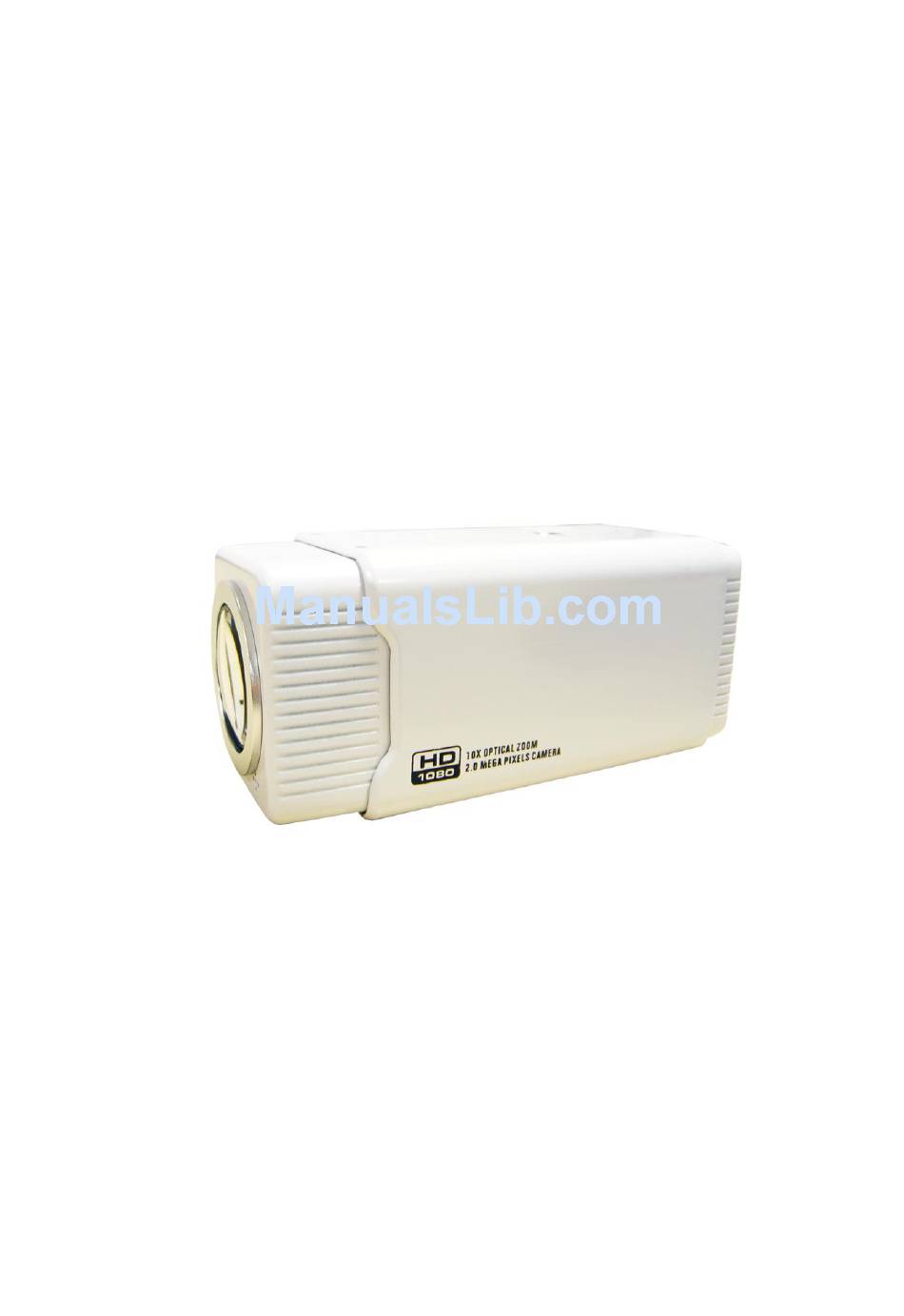

2Mega-Pxiel/10X Optical Zoom/OSD Menu SDI Output/AIO Camera INSTRUCTION MANUAL V 1.0 Warning：Please read this manual carefully before installation and use! - 1 -... -
Page 2: Safety Tips
1、SAFETY TIPS： Installation must be operated by qualified professionals！ Laypeople are forbidden to open this camera! 2、POINTS FOR ATTENTION： Keep the camera away from damp or rainy places, and install strictly as per the manual. To avoid damage, please do not operate with power on. Please do not disassemble or make modification on the camera without permission. - Page 3 4、FUNCTION： OSD Menu control： Video Output ； Port Expansion por ： B-:RS485- A+:RS485+ COM: Public port CDS IN: Set aside IR synchronous input DC12V： Power Supply Input Interface FIGURE1：Camera Rear Panel PROTOCOL PELCO-D. transmission rate 2400 ADDRESS Operate through OSD function table, Camera ID address range from 0 to 255 for setting Call OSD menu Press MENU function table control key, or press CALL+95+ENTER on...
- Page 4 5、DIMENSION： Unit:mm 6、MENU OPERATION： FOCUS ONEPUSH AF / MANNAL back IMAGE EFFECT FREEZE / B&W/NEGATIVE / MIRROR / FLIP / MUTE (ON/OFF OPTIONAL) back DAY/NIGHT MODE AUTO/COLOR/B&W/EXT SWITCH DELAY 5 (1-15 OPTIONAL) D-N LEVEL 2 (1-10 OPTIONAL) back EXPOSURE AREA FULL / CENTRAL / SPOT back VIDEO OUT...
-
Page 5: Image Size
back IMAGE SIZE 1080i 60/50 1080p 30/25 720p 60/50 back WHITE BALANCE CLOUDY / TUNG STEN / FLUORESCENT / DAYLIGHT / AUTO/MANUAL back SATURATION MORE / NORMAL / LESS back ADVANCED FUNCTION BLC : OFF(OFF/LESS/NORMAL/MORE OPTIONAL) ） EXPOSURE SHUTTER : AUTO（ AUTO;1/50 to 1/2500s OPTIONAL；AUTO;1/60 to 1/3000s OPTIONAL back LANGUAGE... - Page 6 7、PARAMETERS： MH-39131E1 Model Omnivision 1/2.7’’ CMOS Sensor OV2715 Image Sensor Video 2M Pixel Array Ambarella A2i(Full HD) 1080p/30 Resolution 1080i 60/50 1080p 30/25 720p 60/50 Video Output Digital:HD-SDI Video Output Mode 10X Optical Zoom/F1.88(W)~F2.8(T)/f=6mm(W)~60mm(T) Optical Zoom 50° (Wide)~5° (Tele) Horizontal View Angle...
