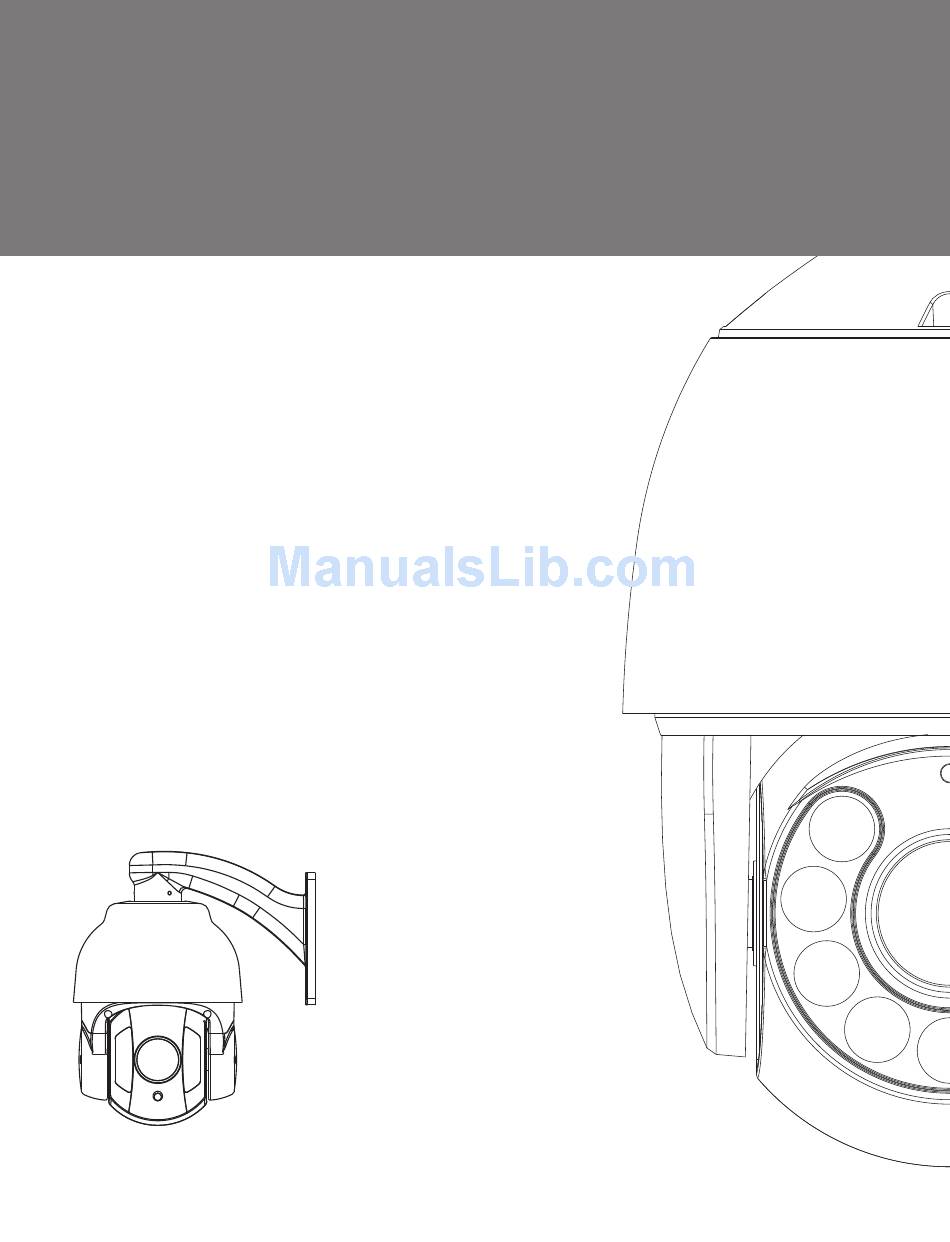

SC2000 PTA1587X User Instruction

Analog hd ir intelligent speed dome camera

Advertisement

Quick Links

Analog HD IR
INTELLIGENT SPEED DOME CAMERA
USER INSTRUCTION
USE/INSTALLATION
Copyright(c)2014(V2.5edition)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTA1587X and is the answer not in the manual?

Questions and answers

Summary of Contents for SC2000 PTA1587X

  • Page 1 Analog HD IR INTELLIGENT SPEED DOME CAMERA USER INSTRUCTION USE/INSTALLATION Copyright(c)2014(V2.5edition)
  • Page 3 Special Declaration Before connecting and using this device, please read this manual carefully and properly preserved for reference in the future. Th i s m a n u a l m ay c o n t a i n s o m e i n a c c u r a t e p l a c e i n t e c h n o l o g y, o r s o m e printing error.
  • Page 4 CAUTION Careful Transport During transport, custody and install process should prevent weight, severe vibration and soak damage to product. Do Not Disassemble Zoom Camera In order to well match night vision, we sell IR speed dome camera with zoom camera, please not disassemble zoom camera if there is no technical person. Power Supply, Video Cable and Control Cable For power supply cable, video cable and control cable, please adopt shielded cable and independent wiring, can not mix with other cables.
  • Page 5: Table Of Contents

    CONTENTS Chapter 1 Product Overview................3   1.1 Product features ..................3   1.2 Speed dome Parameter................3   1.3 Structure Dimension ................4 Chapter 2 Installation..................6   2.1 Install Instruction ..................6   2.2 Install Method..................6   2.3 Baud rate Setup ..................12   2.4 Address Setup..................12   2.5 Power supply and Control cable Connection .........13   2.6 Connecting Method................13   2.7 Cable Mark Instruction ................14   2.8 Typical wiring diagram................14...
  • Page 6: Chapter 1 Product Overview

    Chapter 1 Product Overview 1.1 Product Feature Strong Intelligent Function • PELCO-D/P,Hikvision,Dahua and other control protocol auto diagnosis. • 2400.4800,9600 baud rate auto diagnosis. PTZ Control • Using RS485 Protocol, Video Transmission Distance 500m in theory. • Pan 0-360 degree continue rotate, tilt 0-90 degree, no monitor blind spot.
  • Page 7: Structure Dimension

    Chapter 1 Product Overview 1.3 Structure Dimension H type speed dome Dimension 279.7 219.6 219.6 unit:mm R type speed dome Dimension 214.9 150.0 150.0 unit:mm - 4 -...
  • Page 8 Chapter 1 Product Overview H tape bracket Dimension 129.0 Wall mount bracket 200.0 100.0 Ceiling mount bracket unit:mm 63.0 48.7 R type bracket Dimension 57.0 Wall mount bracket 4XΦ7.0 79.7 165.2 unit:mm 117.7 100.7 61.5 Ceiling mount bracket 3X∅4.0 unit:mm 229.0 3X∅4.0 unit:mm...
  • Page 9: Chapter 2 Installation

    Chapter 2 Installation 2.1 Install Instruction Prepare before installation In order to prevent troubles, installation should be done by professional staff base on corresponding rules. Confirm all spare-parts are complete, ensure application of this speed dome camera and installation mode is suitable for requirement. Wall/ceiling mount speed dome composite with bracket, zoom camera, transparent cover and other parts.
  • Page 10 Chapter 2 Installation Step 3-Unscrew 2pcs screws which used to fixed the transparent cover for DIP switch   Use screwdriver open 2pcs screw which used to fix transparent cover for DIP switch, then move transparent cover from speed dome camera. Step 5-install transparent cover of Step 4-Set DIP switch DIP switch   Please refer to section...
  • Page 11 Chapter 2 Installation Step 7-Connect speed dome and bracket   Put speed dome camera connection port into bracket hole, screw 4pcs hexagon screws into corresponding screw holes. Step 8-Fix speed dome camera.   In order to get good waterproof effect, first install rubber seals on bracket, and lead the cable out from the wiring port, then fix it on the wall/ceiling by using 4 screws.
  • Page 12 Chapter 2 Installation R type speed dome camera installation method 79.7 4XΦ7.0 117.7 100.7 3X ∅ 4.0 61.5 Ceiling mount bracket Wall mount bracket Step 1-Draw positioning holes   Take out bracket from package box, mark the holes’ position based on wall mount bracket bottom 4pcs installation holes.
  • Page 13 Chapter 2 Installation Step 4-Set DIP switch. Step 5-install transparent cover of DIP Please refer to section 3 of this chapter-Baud switch. rate setup. After finishing baud rate setup, install transparent cover of DIP switch again. Step 6-Lead cable through wall mount bracket. Lead the cable through wall mount bracket hole.
  • Page 14 Chapter 2 Installation Step 8-Fix speed dome camera on wall. In order to get good waterproof effect, first install rubber seals on wall mount bracket, and lead the cable out from the wiring port, then fix it on the wall by using 4 screws. Seal the wiring port of the bracket by using silicon sealant.
  • Page 15: Baud Rate Setup

    Chapter 2 Installation Step 10-Tear off protection film   Teal off protection film of transparent cover   Note: please take care of transparent cover. 2.3 Baud Rate Setup Baud rate and corresponding DIP status as bellow: Baud Rate 2400bps 4800bps 9600bps Automatic identify Rs485 control bus need all device which connect to it shall be in parallel mode, and each end of the system shall be connected to a 120ohm resistor.
  • Page 16: Power Supply And Control Cable Connection

    Chapter 2 Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - 2.5 Power supply and control cable connection Power supply connection Note: Please check rated voltage and power supply carefully, rated voltage and current as bellow: rated voltage...
  • Page 17: Typical Wiring Diagram

    Chapter 2 Installation DC connector RS485 cable video cable BNC connector 2.7 Cabling Mark Instruction Port Mark Port Instruction Cable Color Connection Instruction Power supply cable DC12V input power Connect DC12V input power DC connector Connect bus cable A(here in RS485A 485 Communication bus A White...
  • Page 18: Chapter 3 Basic Operation

    Chapter 3 Basic Operation Because different system platform's specific operation method is not totally same, generally subject to manufacturer's manual, different situation has special requirements and operation method. Please contact distributor to obtain necessary information. Hereby only introduce control method when it connect universal keyboard controller.
  • Page 19: Function Realization By Preset

    Chapter 3 Basic Operation 3.4 Function Realization By Preset Adopting the method of double-layer presets, achieve all the functions of the camera by preset call, Specific correspond <<Preset Function Table of General Function>> and <<Preset Function of Specific Function>>. Call mode: call mode is on in general preset of call, specific function is achieved by the mode of preset call;...
  • Page 20 Chapter 3 Basic Operation Preset Function Of Specific Function -17-...
  • Page 21 Chapter 3 Basic Operation - 1 8 -...
  • Page 22 Chapter 3 Basic Operation Support flip Dome Camera Remark: Preset 35 could run Patrol 1, Default Preset Point No.1~No.8 -19-...
  • Page 23: Patrol Setting

    Chapter 3 Basic Operation 3.5 Patrol Setting Start patrol order “set preset 92+ call corresponding preset of patrol number”,then add preset “call preset”, every patrol path can add Max. 32 presets. After adding, save the setting by “set preset 92 + call preset 9” The setting of preset standing time: “set preset 92 + call preset 10 + call corresponding preset of time”.
  • Page 24: Faqs

    Chapter 4 Appendix 4.1 FAQs Faults Check part Probable Cause Solution Phenomenon There is no Power adapter Change power supply action and Check power adapter no image after and power PCB Power circuit exist has problem Replace powered up Mechanical problem Overhaul if it get stuck in something Motor has abnormal sound There is image,...
  • Page 25: Lightning And Surge Protection

    Chapter 4 Appendix 4.3 Lightning and Surge protection Outdoor speed dome camera must consider thunder-proof and surge immunity. On the premise of guaranteeing electrical safety, we can take following lightning protection measures: Ÿ At least keep 50m distance between signal transmission line and high voltage equipment or high voltage cable;...
  • Page 26: Rs485 Bus Wiring

    Chapter 4 Appendix 4.4 RS485 Bus Wiring 1. RS485 bus basic characteristic RS485 industry bus is characteristic impedance 120Ω half-duplex communication bus according to RS485 industry bus standard. 2. RS485 bus transmission distance When use 0.511mm (24AWG) screen twisted pair cable as communication cable.
