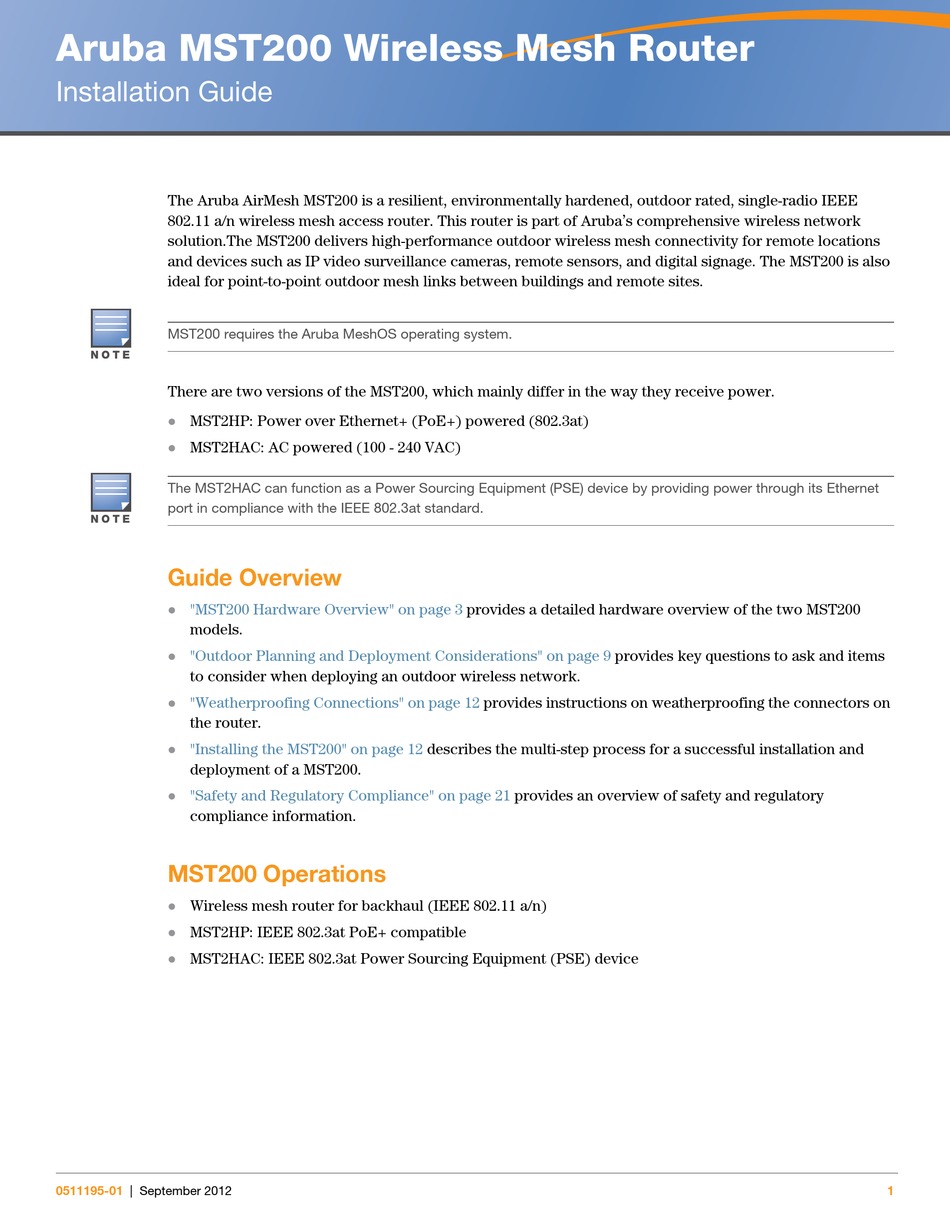

Aruba MST200 Wireless Mesh Router
Installation Guide
The Aruba AirMesh MST200 is a resilient, environmentally hardened, outdoor rated, single-radio IEEE
802.11 a/n wireless mesh access router. This router is part of Aruba's comprehensive wireless network
solution.The MST200 delivers high-performance outdoor wireless mesh connectivity for remote locations
and devices such as IP video surveillance cameras, remote sensors, and digital signage. The MST200 is also
ideal for point-to-point outdoor mesh links between buildings and remote sites.
MST200 requires the Aruba MeshOS operating system.
There are two versions of the MST200, which mainly differ in the way they receive power.
MST2HP: Power over Ethernet+ (PoE+) powered (802.3at)

MST2HAC: AC powered (100 - 240 VAC)

The MST2HAC can function as a Power Sourcing Equipment (PSE) device by providing power through its Ethernet
port in compliance with the IEEE 802.3at standard.
Guide Overview
"MST200 Hardware Overview" on page 3

models.
"Outdoor Planning and Deployment Considerations" on page 9

to consider when deploying an outdoor wireless network.
"Weatherproofing Connections" on page 12

the router.
"Installing the MST200" on page 12

deployment of a MST200.
"Safety and Regulatory Compliance" on page 21

compliance information.
MST200 Operations
Wireless mesh router for backhaul (IEEE 802.11 a/n)

MST2HP: IEEE 802.3at PoE+ compatible

MST2HAC: IEEE 802.3at Power Sourcing Equipment (PSE) device

0511195-01 | September 2012
provides a detailed hardware overview of the two MST200
provides instructions on weatherproofing the connectors on
describes the multi-step process for a successful installation and
provides an overview of safety and regulatory
provides key questions to ask and items
1
