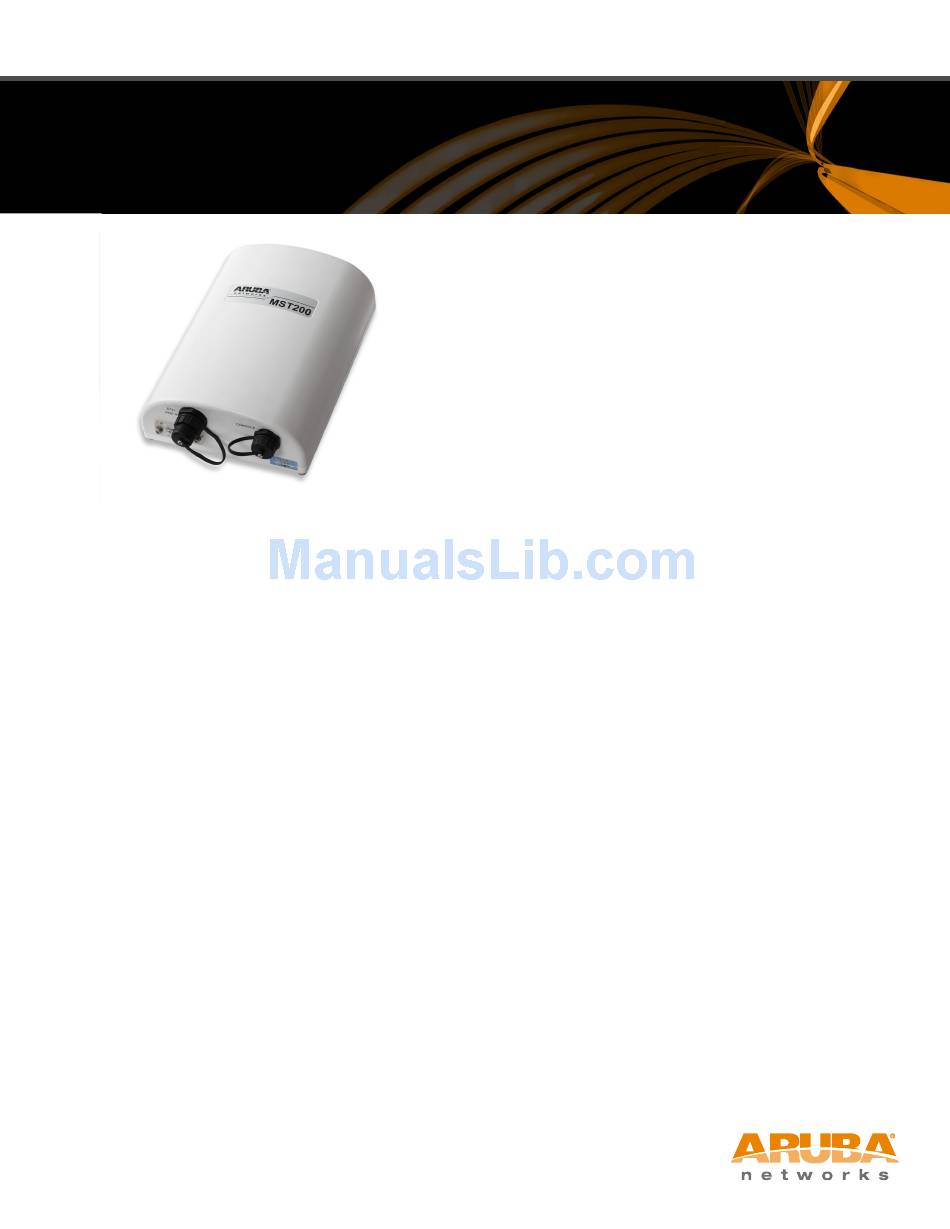

Aruba AirMesh MST200 Datasheet

AirMesh MST200
AIRmesh msT200 OuTdOOR
WIReless mesh Access ROuTeR
Delivers High-Performance Outdoor Wireless Mesh Connectivity
The Aruba AirMesh MST200 outdoor wireless mesh access router
delivers high-performance outdoor wireless mesh connectivity
for remote locations and devices such as IP video surveillance
cameras and digital signage.
Ruggedized and hardened to withstand extreme environmental
conditions, the MST200 is ideal for providing 802.11n connectivity
in metropolitan and industrial areas, oilfields, mines, shipping
ports, traffic corridors and large public areas. Supporting data
rates up to 300 Mbps, the MST200 a reliable and cost-effective
alternative to cabling or fiber.
Running the Aruba MeshOS operating system, the MST200
features a single 5-GHz 2x2 MIMO radio with dual spatial streams
and patented Adaptive Wireless Routing™ (AWR™) technology.
Together, these features offer unparalleled speed, reliability,
and low latency for voice, video and other real-time multimedia-
grade applications.
OpTImIzed fOR lOng-dIsTAnce TRAnsmIssIOn
With an integrated directional antenna, the MST200 provides a
long-range backhaul link that connects to the AirMesh network
or another MST200 up to 7.5 km away. Radio optimization
enables the MST200 to preserve the integrity of applications over
long distances.
TRAffIc pRIORITIzATIOn And QuAlITy
Of seRvIce
As part of the AirMesh wireless network, the MST200 enforces
prioritization and quality of service (QoS) for latency-sensitive video
and voice traffic. When multiple data streams enter the AirMesh
network, the MST200 can automatically identify and tag specific
latency-sensitive traffic to guarantee priority treatment across
the mesh.
vIdeO OpTImIzATIOn TechnOlOgy
The MST200 also ensures the delivery HD-quality video from
surveillance cameras, monitors and recording systems using
Active Video Transport™ (AVT™) technology. Inherent in the
Aruba MeshOS, AVT uses deep packet-inspection, MAC protocol
optimization, in-network retransmission protocol and adaptive
video jitter removal to provide enhanced video at up to 30 frames
per second across the distributed wireless mesh.
ApplIcATIOn
• Single radio outdoor wireless mesh access router
OpeRATIng mOde
• 802.11a/n mesh router for backhaul
RAdIOs
• Single 5-GHz radio
• Radio implements 2x2 MIMO with two spatial streams, providing
up to 300 Mbps data rate
• Maximum aggregate transmit power per radio: up to 25 dBm
• Dual receiver chain maximal ratio combining (MRC) for improved
receiver performance
Rf mAnAgemenT
• RF interference detection and avoidance
WIReless RAdIO specIfIcATIOns
• AP type: outdoor, single radio, 802.11a/n 5 GHz
• Supported frequency bands (country-specific restrictions apply)
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
• Available channels: Dependent on configured regulatory domain
• Maximum transmit power: 25 dBm (325 mW) limited by local
regulatory requirements
• Supported radio technologies:
- 802.11a/n: Orthogonal frequency division multiplexing (OFDM)
- 802.11n: 2x2 MIMO with two spatial streams
• Supported modulation types:
- 802.11a/ n: BPSK, QPSK, 16-QAM, 64-QAM
• Association Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
-
- 802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps)
- 802.11n high-throughput (HT) support: HT 20/40
- 802.11n packet aggregation: A-MPDU, A-MSDU
Aruba Data Sheet
