S5000 Series - BX Models
Version 1.0
All users should read the related user manuals for complete details on installation, usage and functionality.

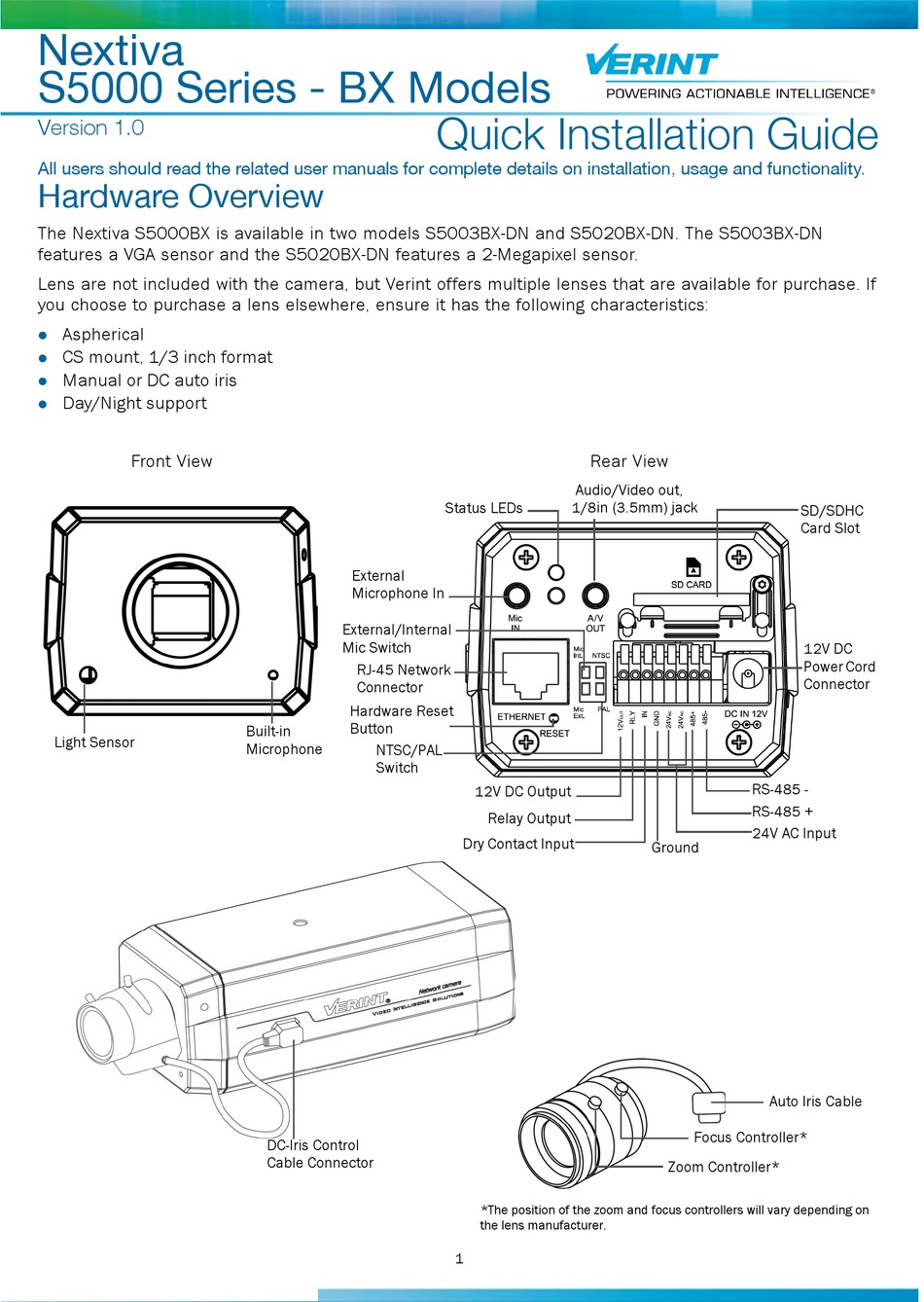

Hardware Overview
The Nextiva S5000BX is available in two models S5003BX-DN and S5020BX-DN. The S5003BX-DN
features a VGA sensor and the S5020BX-DN features a 2-Megapixel sensor.
Lens are not included with the camera, but Verint offers multiple lenses that are available for purchase. If
you choose to purchase a lens elsewhere, ensure it has the following characteristics:
Aspherical
CS mount, 1/3 inch format
Manual or DC auto iris
Day/Night support
Front View
Light Sensor
External
Microphone In
External/Internal
Mic Switch
RJ-45 Network
Connector
Hardware Reset
Button
Built-in
Microphone
NTSC/PAL
Switch
DC-Iris Control
Cable Connector
Quick Installation Guide
Rear View
Audio/Video out,
1/8in (3.5mm) jack
Status LEDs
12V DC Output
Relay Output
Dry Contact Input
*The position of the zoom and focus controllers will vary depending on
the lens manufacturer.
1
SD/SDHC
Card Slot
12V DC
Power Cord
Connector
RS-485 -
RS-485 +
24V AC Input
Ground
Auto Iris Cable
Focus Controller*
Zoom Controller*
