Nextiva S5100 - FD Models
Quick Installation Guide
All users should read the user manuals for complete details on installation, usage and functionality.
Hardware Overview
The S5120FD features a 2-Megapixel sensor.
Setting the Video Standard
The Nextiva S5100 series IP cameras can run in one of two video standards (NTSC or PAL).
Perform the following:
►
1. On the back of the device move the DIP switch to NTSC or PAL.

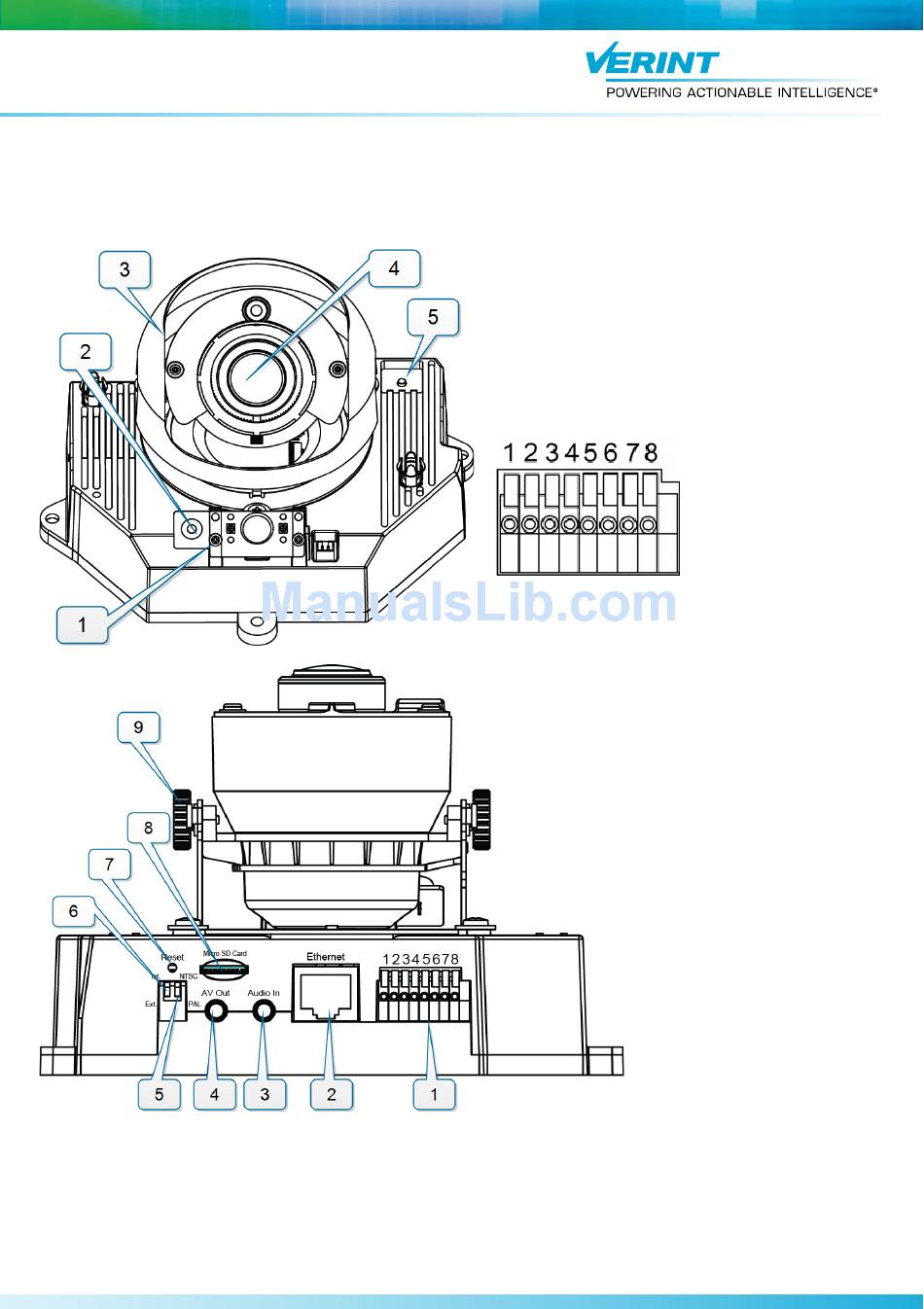

Front View Description:
1. Status LED
2. Built-in microphone
3. Lens hood
4. Lens
5. Auto Focus button
Rear View Description:
1. Terminal Block
2. RJ-45 ethernet connector
3. Audio In
4. Audio/Video Out
5. NTSC/PAL switch
6. Microphone internal/external switch
7. Hardware reset button
8. Micro SD/SDHC Card slot
9. Tilt Adjustment Screw
1
Terminal Block
Description:
1. Ground
2. 12V DC input
3. 24V AC input
4. 24V AC input
5. Ground
6. Dry contact input
7. Relay output
8. 12V DC output
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Verint Nextiva S5120FD
Summary of Contents for Verint Nextiva S5120FD
-
Page 1: Quick Installation Guide
Nextiva S5100 - FD Models Quick Installation Guide All users should read the user manuals for complete details on installation, usage and functionality. Hardware Overview The S5120FD features a 2-Megapixel sensor. Front View Description: 1. Status LED 2. Built-in microphone 3. - Page 2 The Nextiva S5100FD has a sophisticated 3-axis mechanism design that offers a flexible and easy hardware installation for either ceiling or wall mount. Verint will not be held liable for damages to persons or property due to the improper installation of CAUTION: the Nextiva S5100 series IP cameras.
- Page 3 Powering the Nextiva S5100FD Models The Nextiva S5100FD models use 12V DC or 24V AC for power and is also Power-over-Ethernet (PoE)-compliant, allowing transmission of power and data via a single ethernet cable. Never use a PoE connection and a 12V DC or 24V AC connection at the same time. This may CAUTION: damage the device.
- Page 4 Nextiva S5100 IP cameras, an information bar is displayed requiring you to install the ActiveX plug-in from Verint Systems Inc. Follow the on-screen instructions to install the required plug-in. 2. While viewing the image on the web page: a.
-
Page 5: Setting The Ip Address
Automatic Private IP Addressing (APIPA) format. To configure SConfigurator: ► 1. On a computer, download the latest version of SConfigurator from www.verint.com/manuals. 2. Extract the executable file (SConfigurator.exe) to the desktop. 3. Double-click SConfigurator.exe to start SConfigurator. - Page 6 | mobilesupport@verint.com manuals, please visit: www.verint.com/manuals APAC: Hong Kong: +852 2797 5678 Singapore: +65-68266099 Email: APAC_VIS_Services@verint.com © 2011 Verint Video Intelligence Solutions. All Rights Reserved Worldwide. All other trademarks and product names are the property of their respective owners. Revision: A01...
