HP Z27n Quickspecs

27-inch narrow bezel ips display
Hide thumbs

Advertisement

Table of Contents

QuickSpecs
Overview

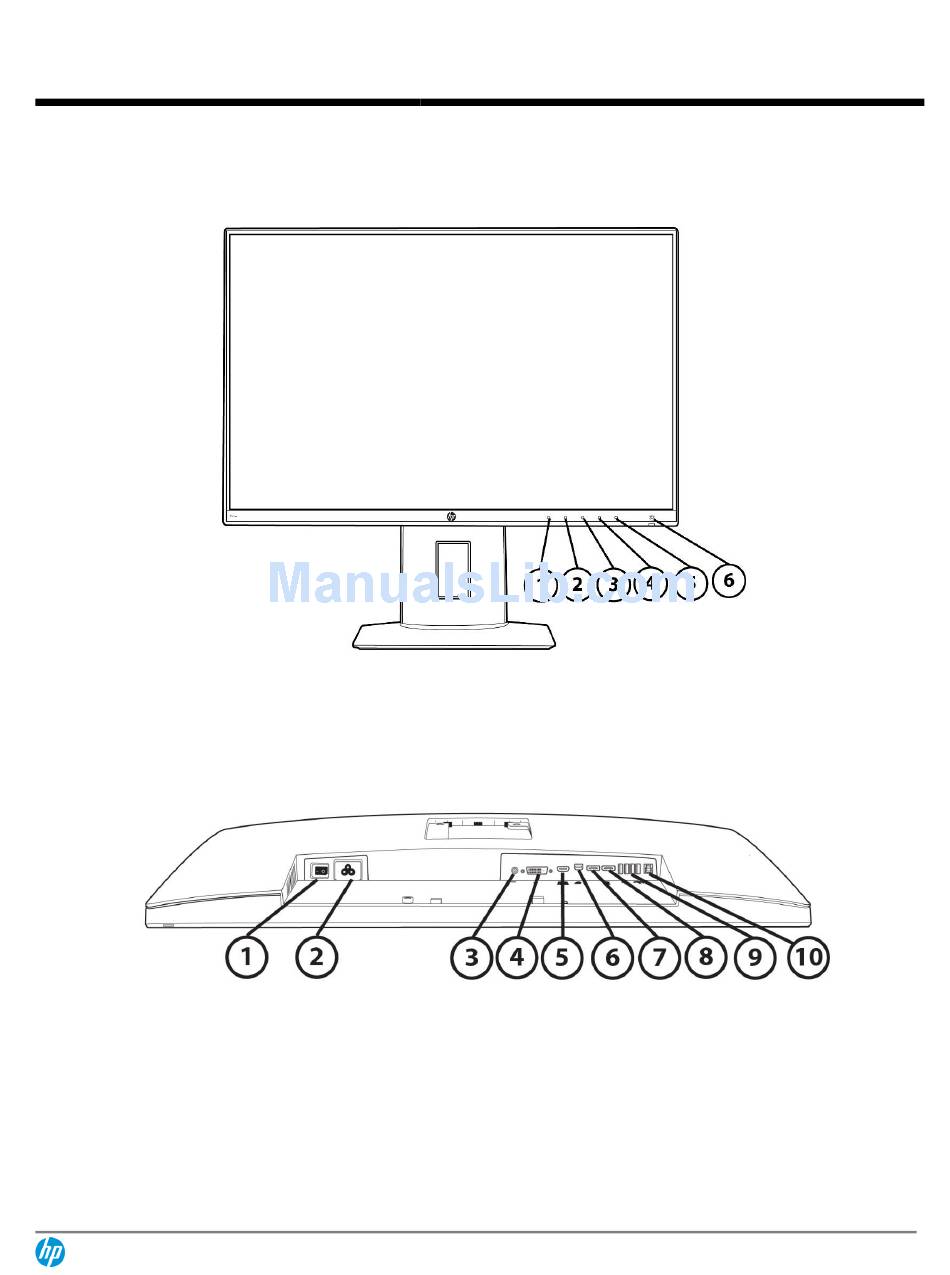

HP Z27n 27-inch Narrow Bezel IPS Display
1.
Menu button
2.
Information
3.
Input control
1.
Master power switch
2.
Power connector
3.
Audio output 3.5 mm
4.
DVI-Dual Link
5.
HDMI v 1.4 input (MHL 2.0)
c04675159 — 15272 — Worldwide — Version 1 — May 18, 2015
HP Z27n 27-inch Narrow Bezel IPS Display
4.
Color control
5.
Luminance
6.
Power button/LED
6.
Mini-DisplayPort
7.
DisplayPort v 1.2 in
8.
DisplayPort v 1.2 out
9.
(4) USB 3.0 downstream ports (one fast charging)
10.
(1) USB 3.0 upstream port
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z27n and is the answer not in the manual?

Questions and answers

Related Manuals for HP Z27n

Summary of Contents for HP Z27n

  • Page 1 QuickSpecs HP Z27n 27-inch Narrow Bezel IPS Display Overview HP Z27n 27-inch Narrow Bezel IPS Display Menu button Color control Information Luminance Input control Power button/LED Master power switch Mini-DisplayPort Power connector DisplayPort v 1.2 in Audio output 3.5 mm DisplayPort v 1.2 out...

  • Page 2: Key Features

    Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.

  • Page 3: Technical Specifications

    Up to 16.7 million colors with the use of FRC technology Color Gamut (Typical) 99% sRGB * Performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. User Controls Buttons or Switches...

  • Page 4: Input/Output Connectors

    4 USB 3.0 [4 downstream (one fast charging), 1 upstream] Video Cables Included (1) DisplayPort 1,8 m (5.9 ft) (1) Mini-DisplayPort 1,8 m (5.9 ft) (1) USB 3.0 1,8 m (5.9 ft) Audio (1) 3.5 mm audio-out connects headphones or HP speaker bar* *Sold separately. Multimedia Speakers Power...
  • Page 5 QuickSpecs HP Z27n 27-inch Narrow Bezel IPS Display Technical Specifications Ergonomic Detachable Stand Yes, ships detached Features Height Adjustment Yes, 130 +/-3 mm Tilt Range -5° to + 22° vertical Swivel Yes, 45° +/-2° Pivot Yes, 90° Quick Release HP QR2 quick release included...

  • Page 6: Additional Information

    RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
  • Page 7 Recycling geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.
  • Page 8 QuickSpecs HP Z27n 27-inch Narrow Bezel IPS Display Environmental Data Hewlett-Packard Corporate For more information about HP’s commitment to the environment: Environmental Information Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html Eco-label certifications http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels. html ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanageme nt.html c04675159 — 15272 — Worldwide — Version 1 — May 18, 2015...
  • Page 9 Edge; CCC; CECP; CEL; SEPA; BSMI; CE; FCC(Canada); BSMI; KC; VCCI; C-Tick; Microsoft WHQL Certification (Windows 8.1 and Windows 7); SmartWay Transport Partnership (NA) Compatibility Compatible with platforms using the VESA standard video modes. Recommended for use with HP products. c04675159 — 15272 — Worldwide — Version 1 — May 18, 2015 Page 9...

  • Page 10: Warranty

    The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices mounted. Because mounting surfaces vary widely and the final mounting method and configuration may vary, mounting fasteners are not supplied (other than the VESA-compliant screws).
  • Page 11 QuickSpecs HP Z27n 27-inch Narrow Bezel IPS Display Change Log Change Log c04675159 — 15272 — Worldwide — Version 1 — May 18, 2015 Page 11...
