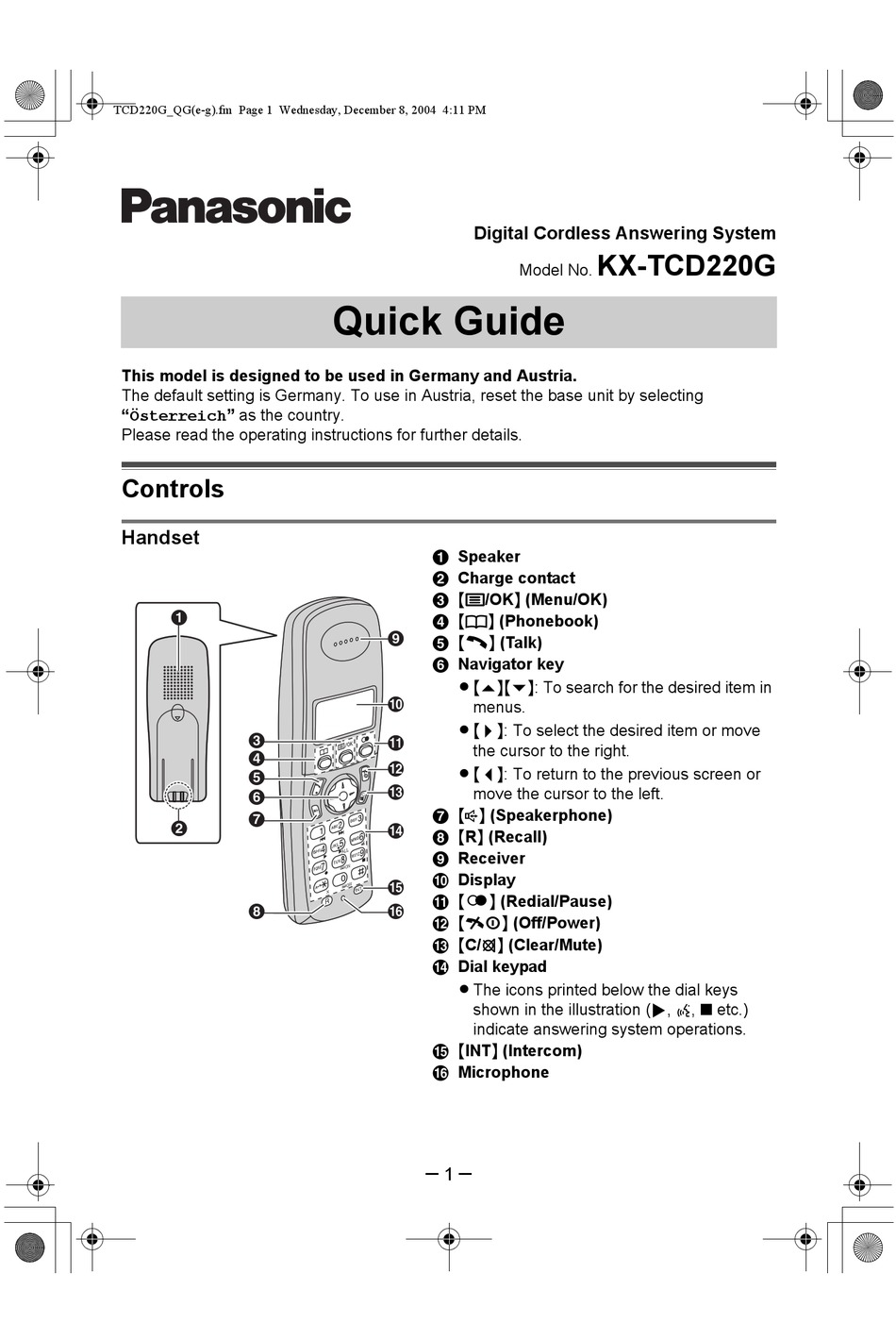

TCD220G_QG(e-g).fm Page 1 Wednesday, December 8, 2004 4:11 PM
This model is designed to be used in Germany and Austria.
The default setting is Germany. To use in Austria, reset the base unit by selecting
"Österreich" as the country.
Please read the operating instructions for further details.
Controls
Handset
A
C
D
E
F
G
B
H
Digital Cordless Answering System
Quick Guide
A Speaker
B Charge contact
C {j/OK} (Menu/OK)
D {k} (Phonebook)
I
E {C} (Talk)
F Navigator key
L {e}{v}: To search for the desired item in
J
menus.
L {>}: To select the desired item or move
K
the cursor to the right.
L
L {<}: To return to the previous screen or
M
move the cursor to the left.
G {s} (Speakerphone)
N
H {R} (Recall)
I Receiver
J Display
O
K {R} (Redial/Pause)
P
L {ih} (Off/Power)
M {C/T} (Clear/Mute)
N Dial keypad
L The icons printed below the dial keys
shown in the illustration (g, d,
indicate answering system operations.
O {INT} (Intercom)
P Microphone
–
–
1
KX-TCD220G
Model No.
etc.)

Advertisement

loading

Related Manuals for Panasonic KX-TCD220G

Summary of Contents for Panasonic KX-TCD220G

  • Page 1 TCD220G_QG(e-g).fm Page 1 Wednesday, December 8, 2004 4:11 PM Digital Cordless Answering System KX-TCD220G Model No. Quick Guide This model is designed to be used in Germany and Austria. The default setting is Germany. To use in Austria, reset the base unit by selecting “Österreich”...

  • Page 2: Display Icons

    TCD220G_QG(e-g).fm Page 2 Wednesday, December 8, 2004 4:11 PM Base unit A Answer on indicator B {x} (Page) C Charge contact Displays Display icons Various icons appear on the handset display to indicate the current status of the unit. Voice enhancer is set to high or Within range of a base unit [VE] low tone.

  • Page 3: Battery Installation

    TCD220G_QG(e-g).fm Page 3 Wednesday, December 8, 2004 4:11 PM Connections When the AC adaptor is connected, a short beep will be heard. If it is not heard, check the connections. Important: L Use only the AC adaptor and telephone Hooks line cord supplied with this unit.

  • Page 4: Basic Operations

    TCD220G_QG(e-g).fm Page 4 Wednesday, December 8, 2004 4:11 PM Turning the power on Press {ih} for about 1 second. Setting the date and time Press {j/OK}. Select “Mobilteileinst.”, then press {>}. Select “Zeiteinstell.”, then press {>}. Select “Datum/Uhr eing.”, then press {>}. Enter the current day, month and year by selecting 2 digits for each.
  • Page 5 TCD220G_QG(e-g).fm Page 5 Wednesday, December 8, 2004 4:11 PM Feature Operation To make a call using the handset Press {k}. Press {e} or {v} repeatedly to phonebook display the desired entry, then press {C}. To adjust the handset ringer volume Press {j/OK}.
  • Page 6 TCD220G_QG(e-g).fm Page 6 Wednesday, December 8, 2004 4:11 PM PQQW13675ZA DC1204FM0...
