HF - VISION 10 & PHOENIX
Sender

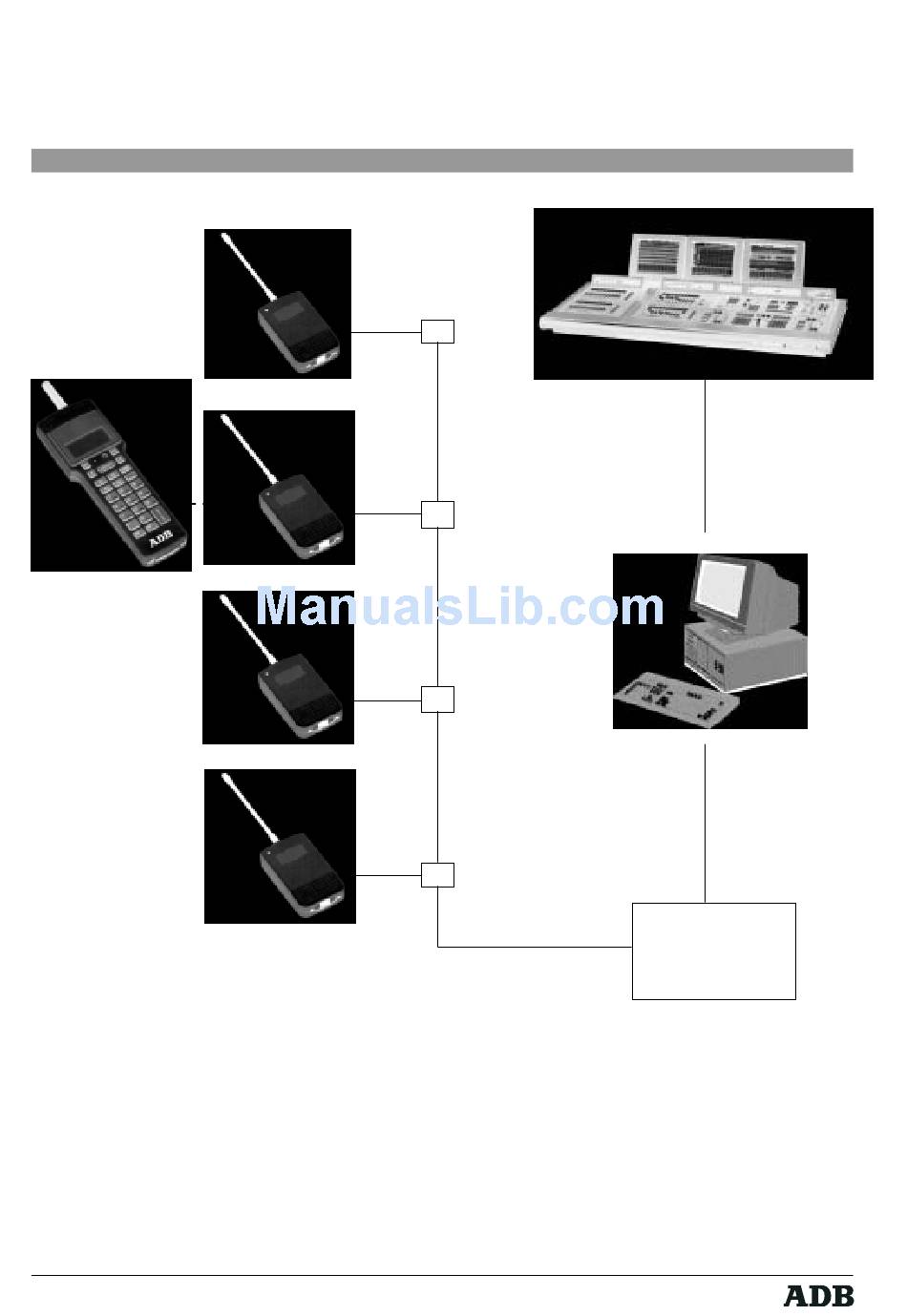

HF communication Receivers
The different receivers are cabled via their T-connector boxes with a special SYSNET
cable. No connectors are needed as the cables directly run into the T-boxes where they
can be screwed into terminal blocks.
A RS485/232 converter allows the receivers to be connected to a standard serial RS232
communication port of a PC. The PC takes over all communication between the different
devices, and sends the commands via an RS232 NULLMODEM cable to the lighting
desk.
Page
8
Rev. : 002
(max. 4)
RS485 cable
RS485 cable
RS485 cable
RS485 cable
T-box
w..psu
RS485 cable
(SYSNET)
T-box
w..psu
RS485 cable
(SYSNET)
T-box
w..psu
RS485 cable
(SYSNET)
T-box
w..psu
RS485 cable
(SYSNET)
Control desk
com port 1
RS232 cable
max. 20m
RS232 cable
max. 20m
RS232/485
Lighting Technologies
