QuickSpecs
Overview
HPE ProLiant DL20 Generation9 (Gen9)
The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel Pentium, Core i3 and E3-1200v5 processors provides
a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of
business requirements at an affordable price point.

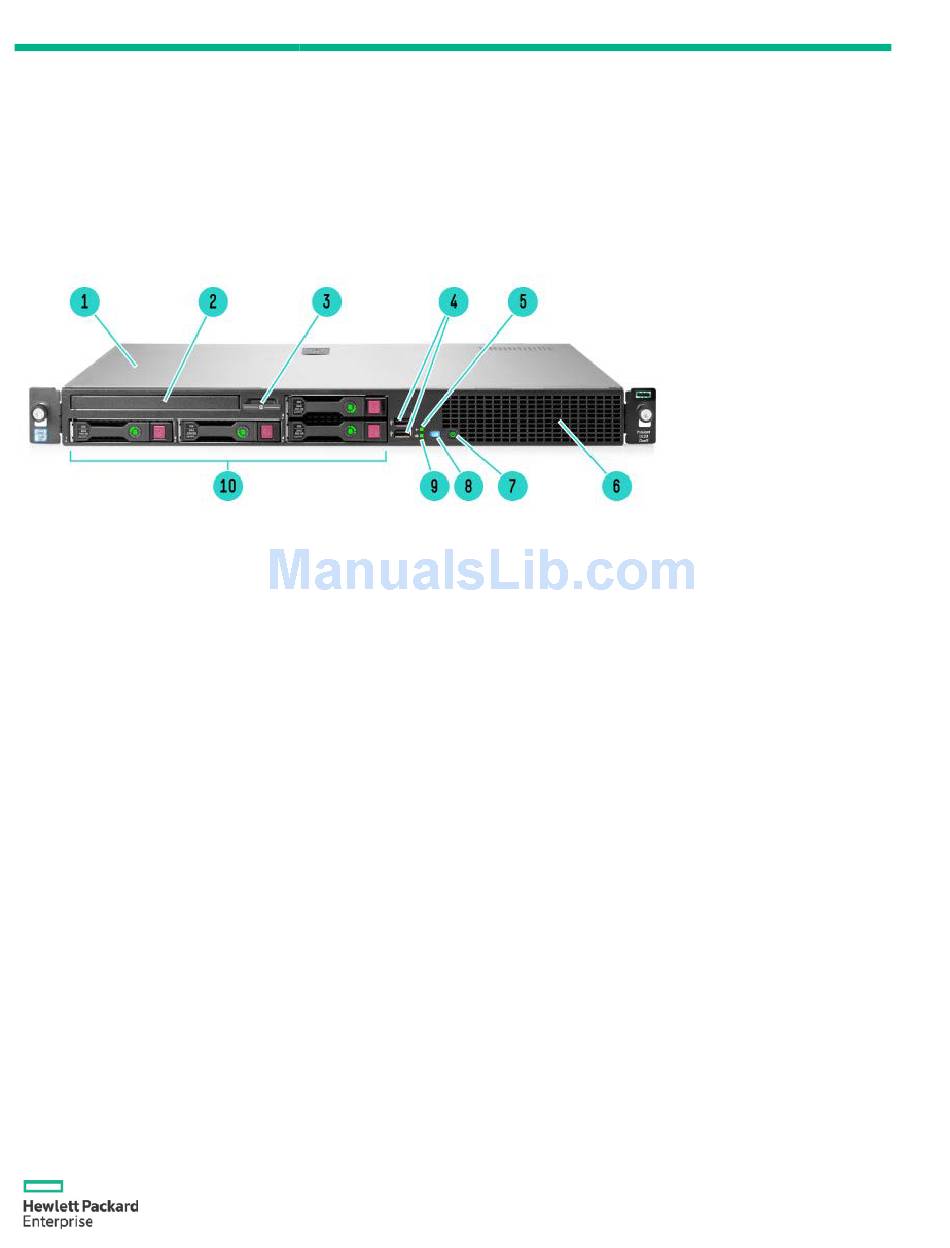

Front View
1.
Access Panel
2.
Optical Drive
3.
Serial number/iLO information pull tab
4.
2 USB 2.0 connectors
5.
Health LED
6.
Front 2 Fan Assembly
7.
Power On/Standby button and system power LED button
8.
UID LED
9.
NIC status LED
10. Hard Drive Bays
HPE ProLiant DL20 Generation9 (Gen9)
Page 1
