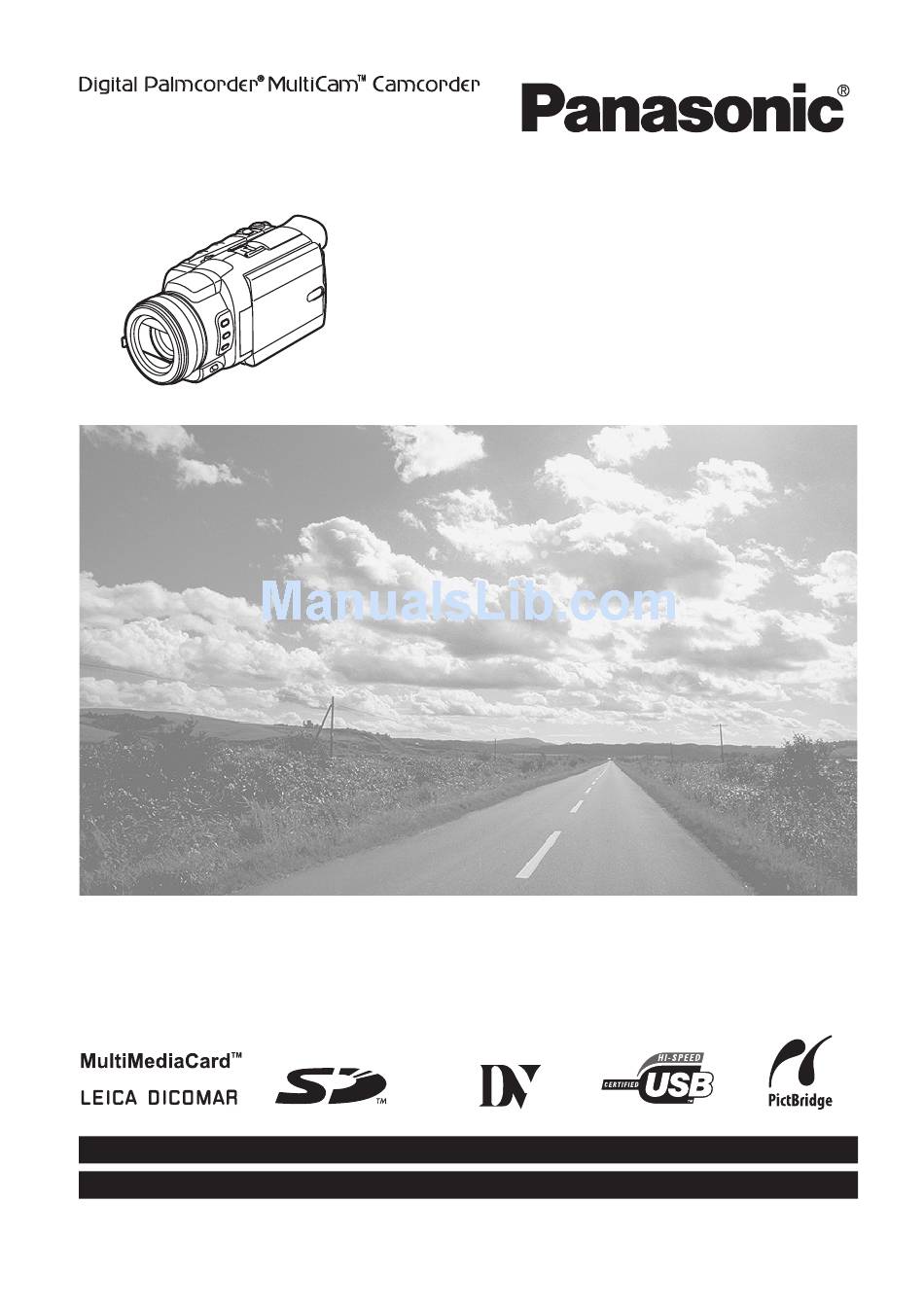

Operating Instructions

Before attempting to connect, operate or adjust this product,
please read these instructions thoroughly.
Spanish Quick Use Guide is included.
Guía para rápida consulta en español está incluida.

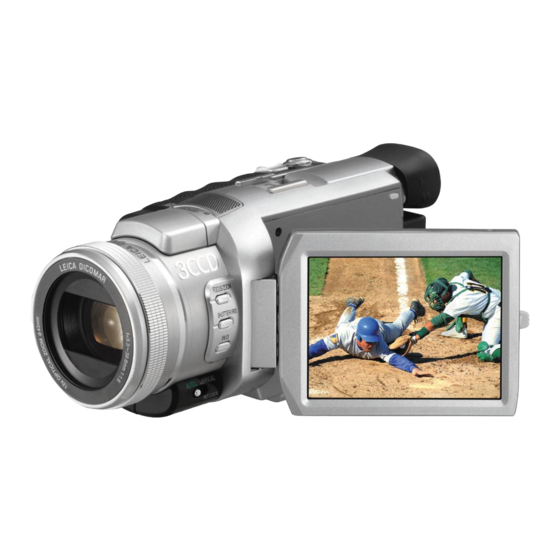

Mini
Digital Video Camcorder
PV-GS400
Model No.
LSQT0801 A
