2. Install the brushcutter blade onto the boss adapter, then reinstall the clamping washer, stabilizer and
blade bolt.
3. Align the hole in the boss adapter with the guide slot in the gearcase.
4. Insert the 3mm hex wrench into the hole in the boss adapter and the guide slot in the gearcase to lock
the attaching shaft.
5. Tighten the blade bolt.
6. Remove the φ3,5mm pin from the boss adapter and gearcase.

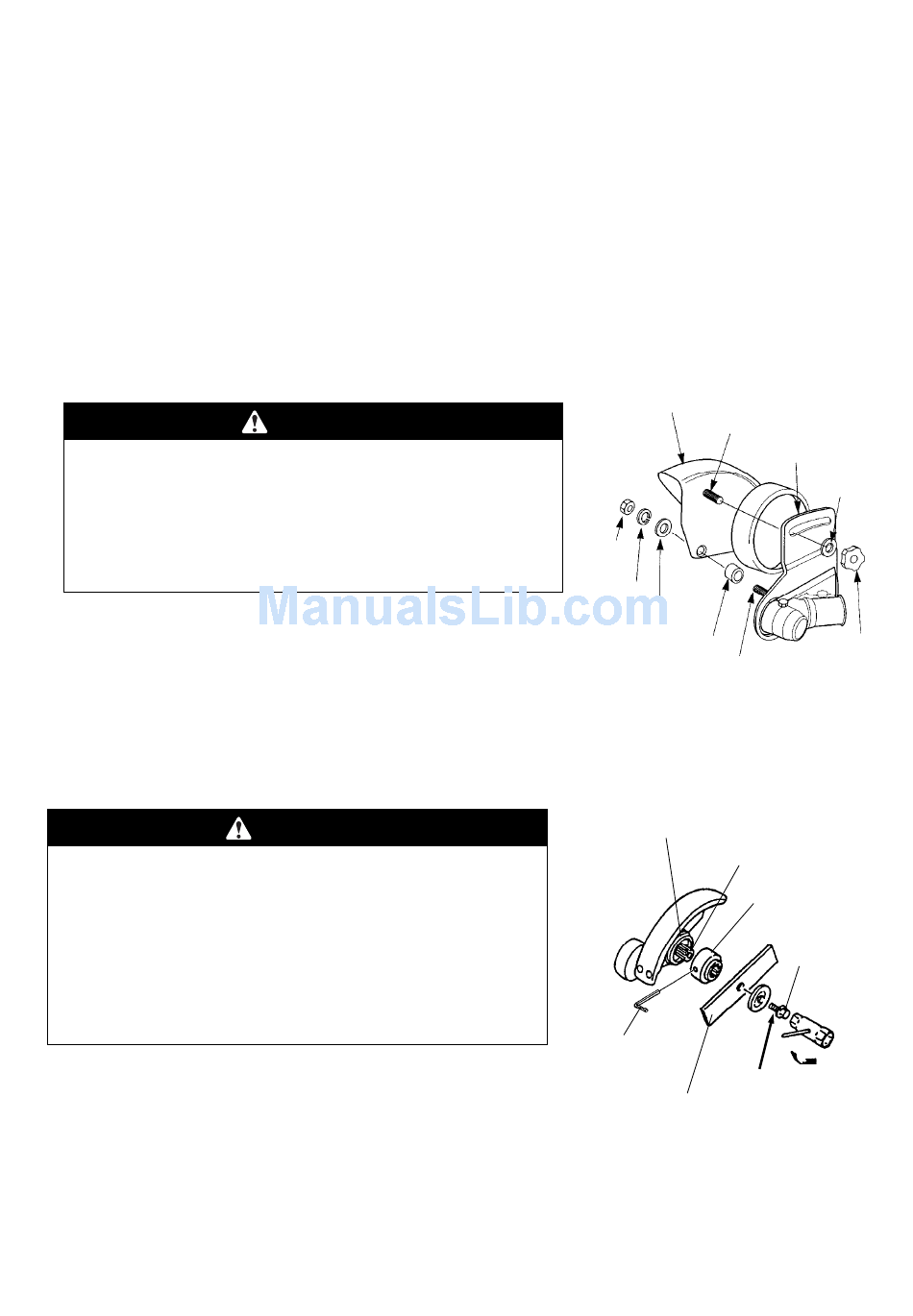

MC-E (Edger Attachment)
Installing Guard
POTENTIAL HAZARD
・Foreign objects can be thrown by Edger.
WHAT CAN HAPPEN
・Contact with thrown objects can cause personal injury.
HOW TO AVOID THE HAZARD
・Never operate the Edger without the blade guard.
1. Install the collar onto the plate stud.
2. Install the guard onto the plate stud, making sure the guard stud
fits into the matching slot in the plate.
3. Install the flat washer, lock washer and hex nut onto the plate stud.
4. Install the flat washer and knob onto the guard.
POTENTIAL HAZARD
・If the Edger blade is not adequately tightened, it can
come loose from the Edger during use.
WHAT CAN HAPPEN
・This may cause damage to property or personal injury.
HOW TO AVOID THE HAZARD
・Make sure the Edger blade is securely fastened to the
attaching shaft in the gearcase.
1. Install the boss onto the attaching shaft out of the gearcase.
2 . Install the edger blade, clamping washer and blade bolt.
Note: The blade bolt has left-hand thread.
3. Align the hole in the boss adapter with the guide slot in the gearcase.
4. Insert the 3mm hex wrench into the hole in the boss adapter and the guide slot in the gearcase to lock
the attaching shaft.
WARNING
WARNING
― 11 ―
Lock Washer
Guard
Hex
Lock
Washer
Flat
Washer
Collar
Plate Stud
Gearcase
Attaching
Shaft
Boss
3mm
hex wrench
Left-hand
thread
Edger Blade
Plate
Flat
Washer
Knob
Blade Bolt
